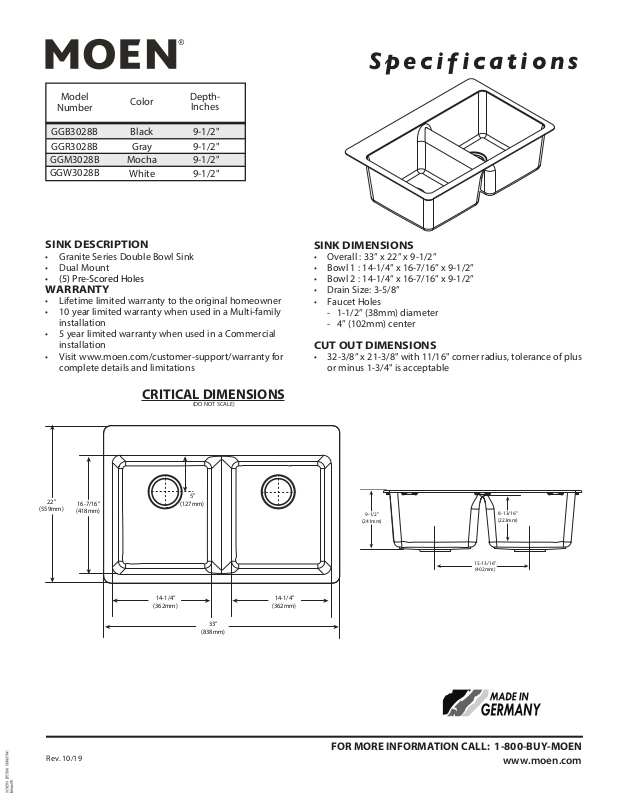

Spec i fi ca tions
Model
Number
Color
Depth-
Inches
GGB3028B Black 9-1/2"
GGR3028B Gray 9-1/2"
GGM3028B
GGW3028B
Mocha
White 9-1/2"
9-1/2"
SINK DESCRIPTION
• Granite Series Double Bowl Sink
• Dual Mount
• (5) Pre-Scored Holes
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family
installation
• 5 year limited warranty when used in a Commercial
installation
• Visit www.moen.com/customer-support/warranty for
complete details and limitations
SINK DIMENSIONS
• Overall : 33” x 22” x 9-1/2”
• Bowl 1 : 14-1/4” x 16-7/16” x 9-1/2”
• Bowl 2 : 14-1/4” x 16-7/16” x 9-1/2”
• Drain Size: 3-5/8”
• Faucet Holes
- 1-1/2” (38mm) diameter
- 4” (102mm) center
CUT OUT DIMENSIONS
• 32-3/8” x 21-3/8" with 11/16" corner radius, tolerance of plus
or minus 1-3/4" is acceptable
22”
(559mm)
16-7/16”
(418mm)
CRITICAL DIMENSIONS
14-1/4”
(362mm)
(DO NOT SCALE)
5”
(127mm)
(838mm)
33”
14-1/4”
(362mm)
9-1/2”
(241mm)
15-13/16”
(402mm)
8-13/16”
(223mm)
Rev. 10/19
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
