Page 1
DESCRIPTION
• Includes handshower, hose, and bracket
• Various nishes identied by sux
• 60" double interlock spiral chrome hose (metal), for Chrome and
Spot Resist Brushed Nickel nishes only
• 1/2" IPS connection
OPERATION
• Five functions
• Rotate outer ring to select function
FLOW
• Designed to deliver 1.75 gpm (6.6 L/min)
(for models manufactured after 3/1/18)
• Designed to deliver 2.0 gpm (7.6 L/min)
(for models manufactured before 3/1/18)
STANDARDS
• Third party certied at WaterSense®, ASME A112.18.1/CSA B-125.1,
and all applicable specications referenced therein
• Products marked with 1.75 gpm are compliant with California water
eciency requlations
WARRANTY
• Lifetime limited warranty against material or manufacturing defects
to the original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for the complete details and limitations

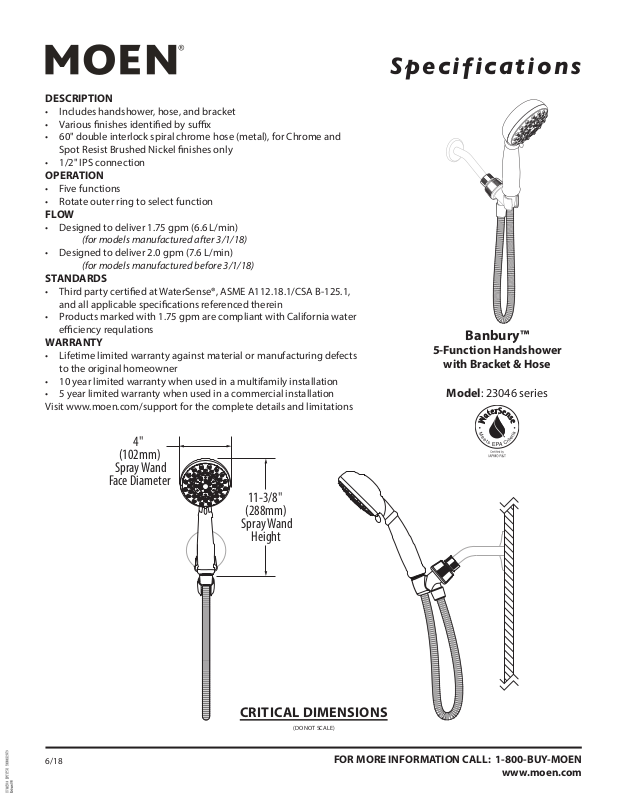

Specifications
Banbury™
5-Function Handshower
with Bracket & Hose
Model: 23046 series
4"
(102mm)
Spray Wand
Face Diameter
11-3/8"
(288mm)
Spray Wand
Height
CRITICAL DIMENSIONS
(DO NOT SCALE)
6/18
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
