DESCRIPTION
• Metal construction with various finishes identified by suffix
OPERATION
• Temperature operates through an 270˚ arc of handle
travel (full cold to full hot)
• Adjustable temperature limit stop to control maximum
hot water temperature
• 90˚ rotation of transfer valve handle with stops
• Pressure balancing mechanism maintains selected
discharge temperature to ± 3˚
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125.1
• for lever handles
ADA
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to
the original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
Wall thickness
greater than 1/4"
FINISHED WALL LINE
2-7/8"
(73mm)

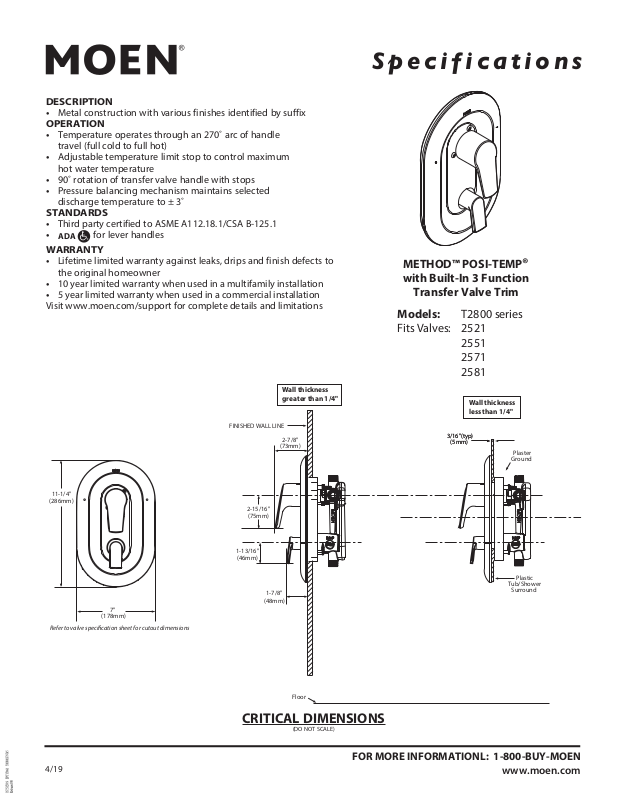

Spec i fi ca tions
METHOD™ POSI-TEMP®
with Built-In 3 Function
Transfer Valve Trim
Models: T2800 series
Fits Valves: 2521
2551
2571
2581
Wall thickness
less than 1/4"
3/16"(typ)
3/16"(typ)
(5mm)
(5mm)
Plaster
Ground
11-1/4"
(286mm)
7"
(178mm)
Refer to valve specication sheet for cutout dimensions
4/19
2-15/16"
(75mm)
1-13/16"
(46mm)
1-7/8"
(48mm)
Floor

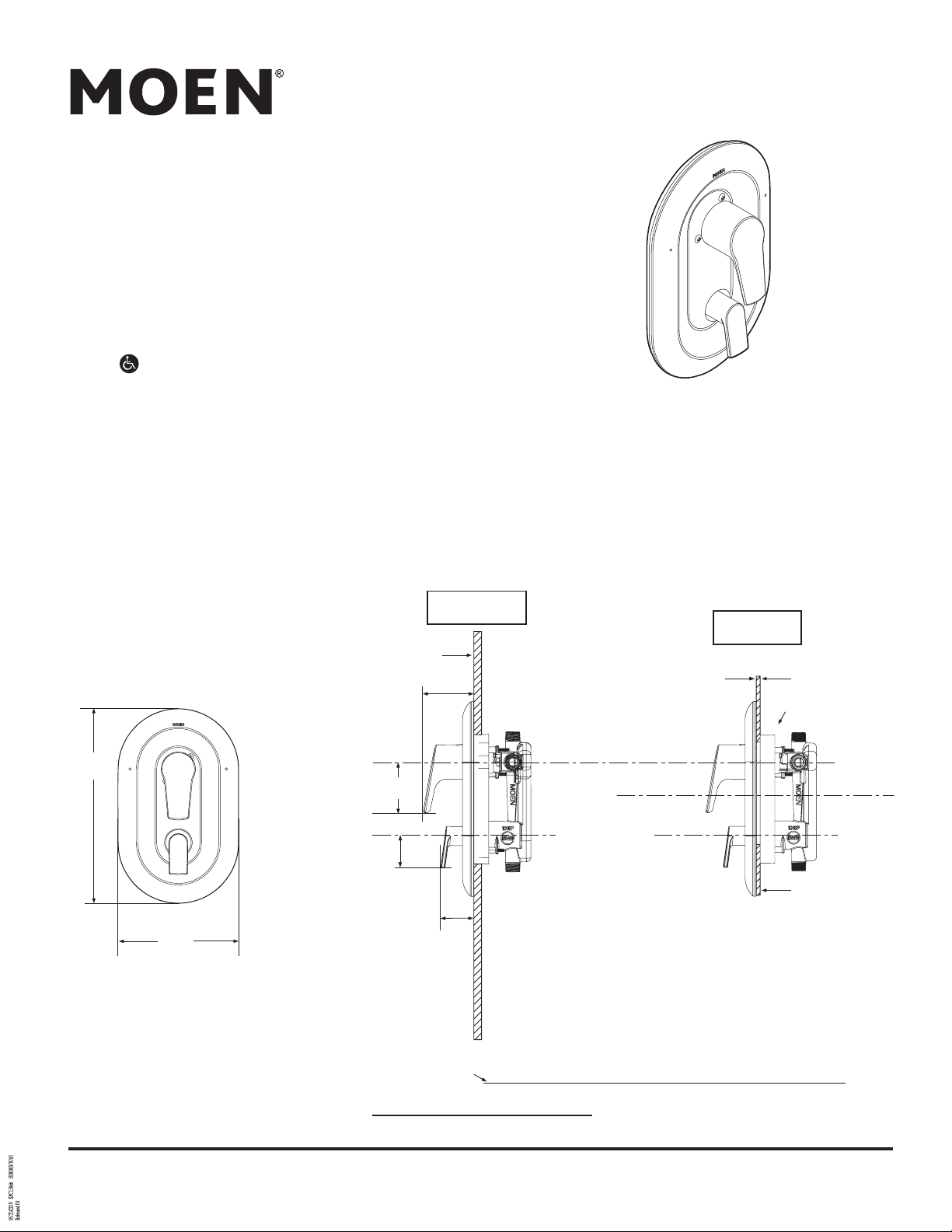

CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATIONL: 1-800-BUY-MOEN
Plastic
Tub/Shower
Surround
www.moen.com
