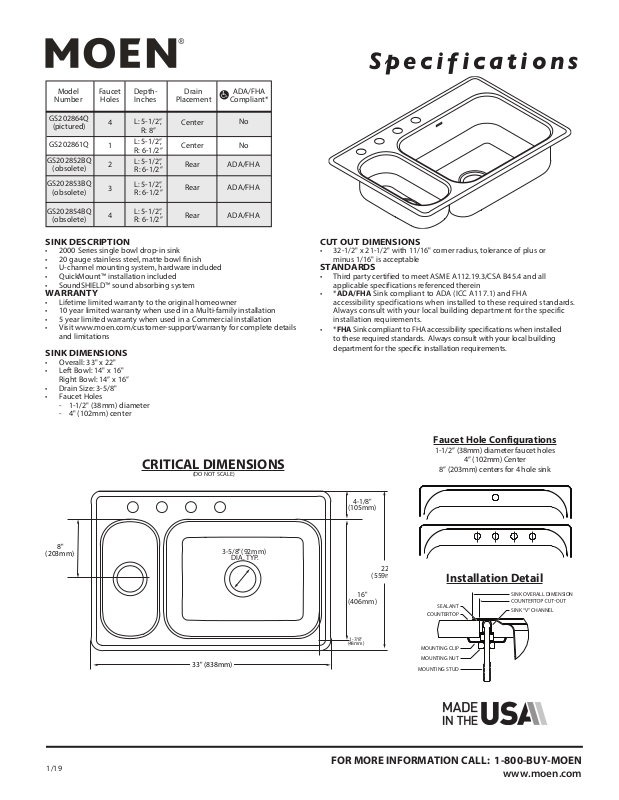

Spec i fi ca tions
1
2
4”
1
2
4”
22"
(559mm)
SINK OVERALL DIMENSION
Model
Number
GS202864Q
(pictured)
GS202861Q
GS202852BQ
(obsolete)
GS202853BQ
(obsolete)
GS202854BQ
(obsolete)
Faucet
Holes
Depth-
Inches
L: 5-1/2”,
4
1
2
3
4
R: 8”
L: 5-1/2”,
R: 6-1/2”
L: 5-1/2”,
R: 6-1/2”
L: 5-1/2”,
R: 6-1/2”
L: 5-1/2”,
R: 6-1/2”
Drain
Placement
Center
Center
Rear
Rear
Rear
ADA/FHA
Compliant*
No
No
ADA/FHA
ADA/FHA
ADA/FHA
SINK DESCRIPTION
• 2000 Series single bowl drop-in sink
• 20 gauge stainless steel, matte bowl finish
• U-channel mounting system, hardware included
• QuickMount™ installation included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete details
and limitations
SINK DIMENSIONS
• Overall: 33" x 22"
• Left Bowl: 14" x 16"
Right Bowl: 14” x 16”
• Drain Size: 3-5/8"
• Faucet Holes
- 1-1/2" (38mm) diameter
- 4" (102mm) center
CUT OUT DIMENSIONS
• 32-1/2" x 21-1/2" with 11/16" corner radius, tolerance of plus or
minus 1/16" is acceptable
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
• *ADA/FHA Sink compliant to ADA (ICC A117.1) and FHA
accessibility specifications when installed to these required standards.
Always consult with your local building department for the specific
installation requirements.
• *FHA Sink compliant to FHA accessibility specifications when installed
to these required standards. Always consult with your local building
department for the specific installation requirements.
8"
(203mm)
CRITICAL DIMENSIONS
(DO NOT SCALE)
3-5/8" (92mm)
33" (838mm)
DIA. TYP.
(105mm)
(406mm)
1-7/8"
(48mm)
4-1/8"
16"
Faucet Hole Configurations
1-1/2” (38mm) diameter faucet holes
4” (102mm) Center
8” (203mm) centers for 4 hole sink
Installation Detail
SEALANT
COUNTERTOP
MOUNTING CLIP
MOUNTING NUT
MOUNTING STUD
SINK “V” CHANNEL
1/19
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
