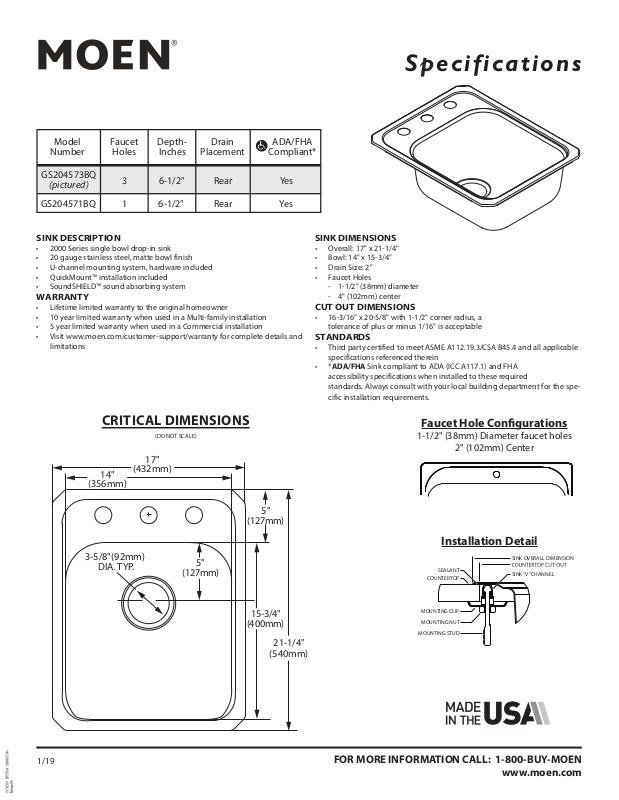

Specifications
SINK OVERALL DIMENSION
Model
Number
GS204573BQ
(pictured)
GS204571BQ 1 6-1/2" Rear
SINK DESCRIPTION
• 2000 Series single bowl drop-in sink
• 20 gauge stainless steel, matte bowl finish
• U-channel mounting system, hardware included
• QuickMount™ installation included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete details and
limitations
Faucet
Holes
Depth-
Inches
Placement
3 6-1/2" Rear
Drain
ADA/FHA
Compliant*
Yes
Yes
CRITICAL DIMENSIONS
(DO NOT SCALE)
17"
14"
(356mm)
(432mm)
SINK DIMENSIONS
• Overall: 17" x 21-1/4"
• Bowl: 14" x 15-3/4"
• Drain Size: 2"
• Faucet Holes
- 1-1/2" (38mm) diameter
- 4" (102mm) center
CUT OUT DIMENSIONS
• 16-3/16" x 20-5/8" with 1-1/2" corner radius, a
tolerance of plus or minus 1/16" is acceptable
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all applicable
specifications referenced therein
• *ADA/FHA Sink compliant to ADA (ICC A117.1) and FHA
accessibility specifications when installed to these required
standards. Always consult with your local building department for the specific installation requirements.
Faucet Hole Congurations
1-1/2" (38mm) Diameter faucet holes
2" (102mm) Center
1/19
3-5/8" (92mm)
DIA. TYP.
5"
(127mm)
5"
(127mm)
15-3/4"
(400mm)
21-1/4"
(540mm)
Installation Detail
SEALANT
COUNTERTOP
MOUNTING CLIP
MOUNTING NUT
MOUNTING STUD
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
SINK “V” CHANNEL
www.moen.com
