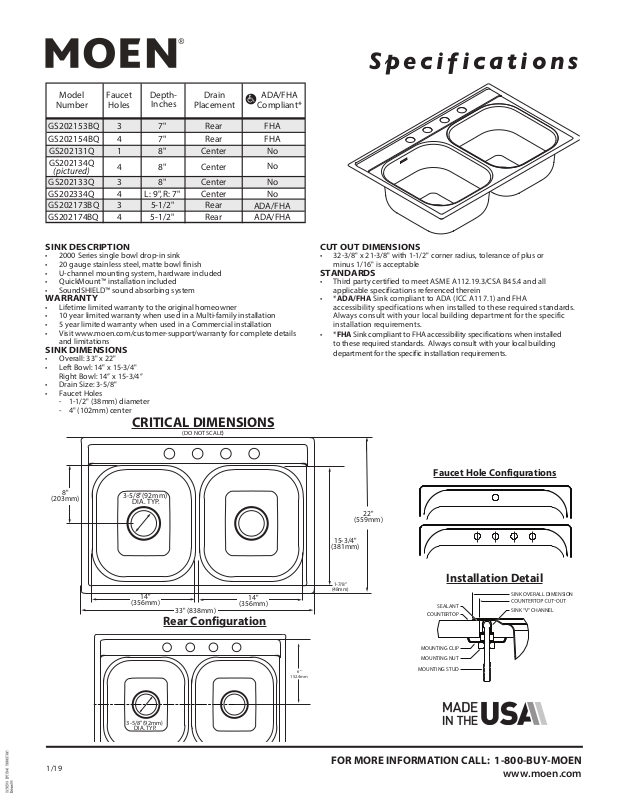

Page 1
Spec i fi ca tions
1
2
4”
1
2
4”
SINK OVERALL DIMENSION
Model
Number
Faucet
Holes
GS202153BQ 37"Rear
GS202154BQ 47"Rear
GS202131Q
GS202134Q
(pictured)
18"Center
48"Center
GS202133Q 38"Center
GS202334Q 4 L: 9", R: 7" Center
GS202173BQ 35-1/2"Rear
GS202174BQ 45-1/2" Rear
Depth-
Inches
Drain
Placement
ADA/FHA
Compliant*
FHA
FHA
No
No
No
No
ADA/FHA
ADA/FHA
SINK DESCRIPTION
• 2000 Series single bowl drop-in sink
• 20 gauge stainless steel, matte bowl finish
• U-channel mounting system, hardware included
• QuickMount™ installation included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete details
and limitations
SINK DIMENSIONS
• Overall: 33" x 22"
• Left Bowl: 14" x 15-3/4"
Right Bowl: 14” x 15-3/4”
• Drain Size: 3-5/8"
• Faucet Holes
- 1-1/2" (38mm) diameter
- 4" (102mm) center

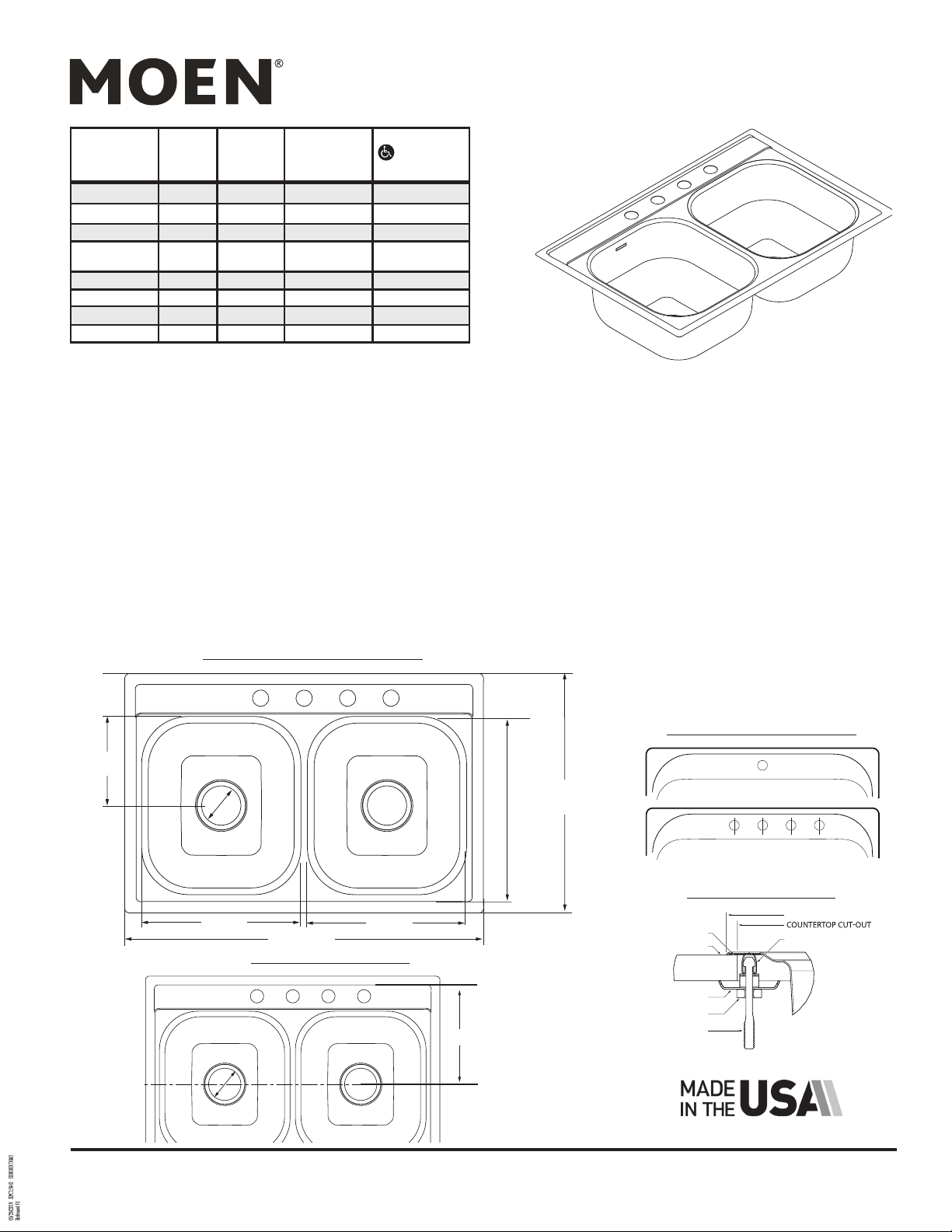

CRITICAL DIMENSIONS
(DO NOT SCALE)
CUT OUT DIMENSIONS
• 32-3/8" x 21-3/8" with 1-1/2" corner radius, tolerance of plus or
minus 1/16" is acceptable
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
• *ADA/FHA Sink compliant to ADA (ICC A117.1) and FHA
accessibility specifications when installed to these required standards.
Always consult with your local building department for the specific
installation requirements.
• *FHA Sink compliant to FHA accessibility specifications when installed
to these required standards. Always consult with your local building
department for the specific installation requirements.
8"
(203mm)
1/19
3-5/8" (92mm)
3-5/8" (92mm)
DIA. TYP.
14"
(356mm)
DIA. TYP.
14"
33" (838mm)
(356mm)
Rear Configuration
6”
152.4mm
Faucet Hole Configurations
22"
(559mm)
15-3/4"
(381mm)
1-7/8"
(48mm)
Installation Detail
SEALANT
COUNTERTOP
MOUNTING CLIP
MOUNTING NUT
MOUNTING STUD
SINK “V” CHANNEL
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
