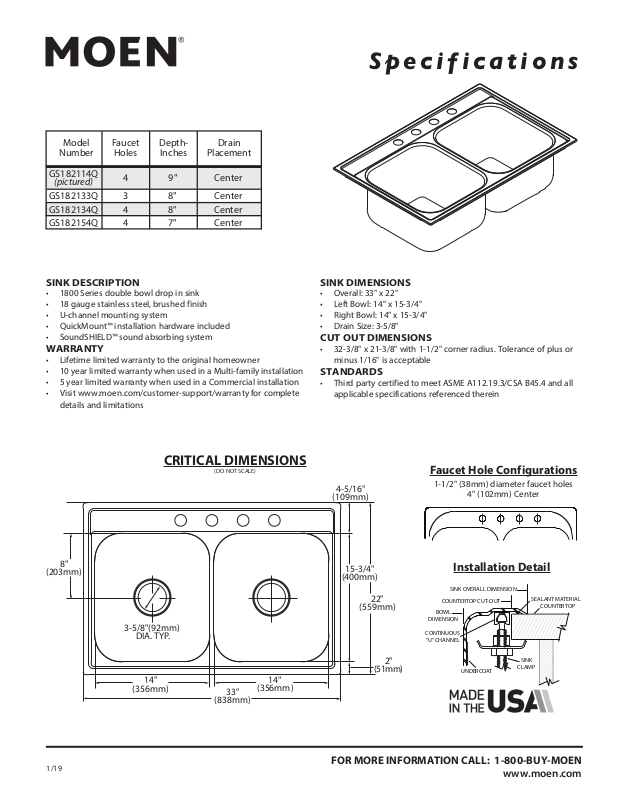

Spec i fi ca tions
1
2
3
4”
4” 4”
Model
Number
GS182114Q
(pictured)
GS182133Q
Faucet
Holes
49"Center
38"Center
Depth-
Inches
Drain
Placement
GS182134Q 48"Center
GS182154Q 47"Center
SINK DESCRIPTION
• 1800 Series double bowl drop in sink
• 18 gauge stainless steel, brushed finish
• U-channel mounting system
• QuickMount™ installation hardware included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete
details and limitations
SINK DIMENSIONS
• Overall: 33" x 22"
• Left Bowl: 14" x 15-3/4"
• Right Bowl: 14" x 15-3/4"
• Drain Size: 3-5/8"
CUT OUT DIMENSIONS
• 32-3/8" x 21-3/8" with 1-1/2" corner radius. Tolerance of plus or
minus 1/16" is acceptable
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
8"
(203mm)
CRITICAL DIMENSIONS
3-5/8"(92mm)
DIA. TYP.
14"
(356mm)
(DO NOT SCALE)
33"
(838mm)
14"
(356mm)
4-5/16"
(109mm)
15-3/4"
(400mm)
(559mm)
22"
2"
(51mm)
Faucet Hole Configurations
1-1/2" (38mm) diameter faucet holes
4" (102mm) Center
Installation Detail
SINK OVERALL DIMENSION
COUNTERTOP CUT-OUT
BOWL
DIMENSION
CONTINUOUS
“U” CHANNEL
UNDERCOAT
SEALANT MATERIAL
COUNTERTOP
SINK
CLAMP
1/19
