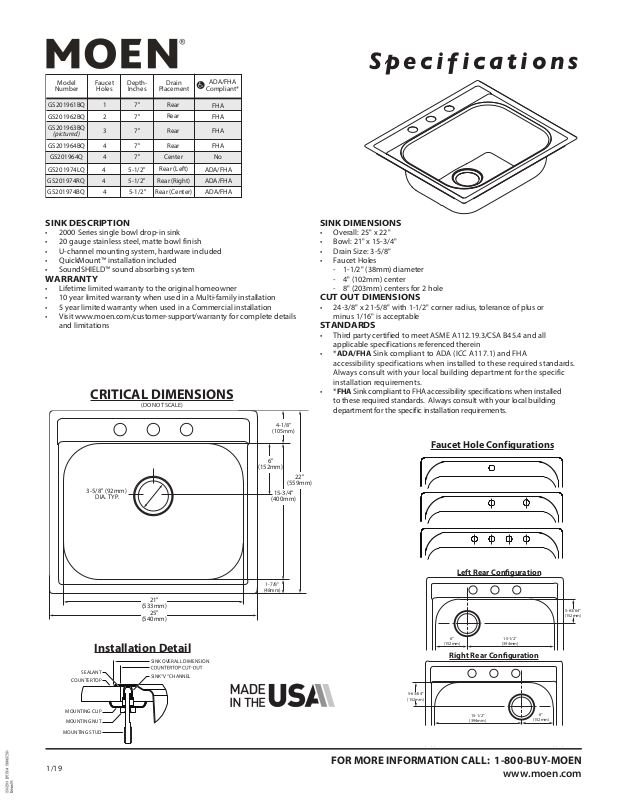

Moen NDPF1430 Specifications

Download

Page 1

Model

Number

GS201961BQ 17"Rear

GS201962BQ 27"

GS201963BQ

(pictured)

GS201964BQ 47"

GS201964Q 47"

GS201974LQ4 5-1/2"

GS201974RQ

GS201974BQ44

Faucet

Holes

Depth-

Inches

5-1/2"

Drain

Placement

Rear

Center

Rear (Left)

Rear (Right)

Rear (Center)

ADA/FHA

Compliant*

FHA

ADA/FHA

Spec i fi ca tions

SINK DESCRIPTION

• 2000 Series single bowl drop-in sink

• 20 gauge stainless steel, matte bowl finish

• U-channel mounting system, hardware included

• QuickMount™ installation included

• SoundSHIELD™ sound absorbing system

WARRANTY

• Lifetime limited warranty to the original homeowner

• 10 year limited warranty when used in a Multi-family installation

• 5 year limited warranty when used in a Commercial installation

• Visit www.moen.com/customer-support/warranty for complete details and limitations

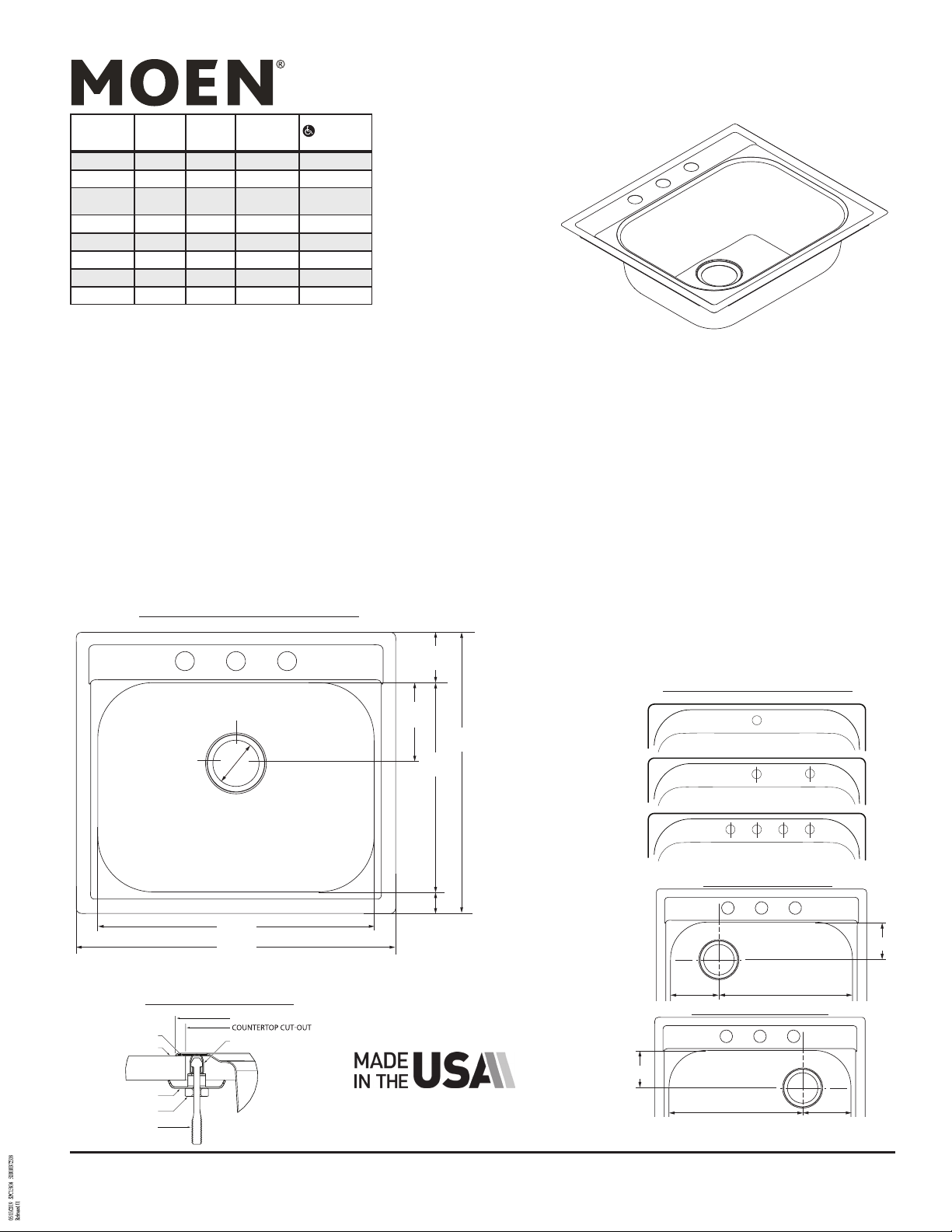

CRITICAL DIMENSIONS

3-5/8" (92mm)

DIA. TYP.

(DO NOT SCALE)

(105mm)

(152mm)

15-3/4"

(400mm)

4-1/8"

(559mm)

SINK DIMENSIONS

• Overall: 25" x 22"

• Bowl: 21" x 15-3/4"

• Drain Size: 3-5/8"

• Faucet Holes

- 1-1/2" (38mm) diameter

- 4" (102mm) center

- 8" (203mm) centers for 2 hole

CUT OUT DIMENSIONS

• 24-3/8" x 21-5/8" with 1-1/2" corner radius, tolerance of plus or minus 1/16" is acceptable

STANDARDS

• Third party certified to meet ASME A112.19.3/CSA B45.4 and all applicable specifications referenced therein

• *ADA/FHA Sink compliant to ADA (ICC A117.1) and FHA

accessibility specifications when installed to these required standards.

Always consult with your local building department for the specific installation requirements.

• *FHA Sink compliant to FHA accessibility specifications when installed to these required standards. Always consult with your local building department for the specific installation requirements.

Faucet Hole Configurations

22"

1/19

SEALANT

COUNTERTOP

MOUNTING CLIP

MOUNTING NUT

MOUNTING STUD

21"

(533mm)

25"

(540mm)

Installation Detail

SINK OVERALL DIMENSION

SINK “V” CHANNEL

1-7/8"

(48mm)

Left Rear Conguration

5-63/64" (152mm)

(152mm)

15-1/2"

(394mm)

Right Rear Conguration

5-63/64" (152mm)

15-1/2"

(394mm)

(152mm)

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com
