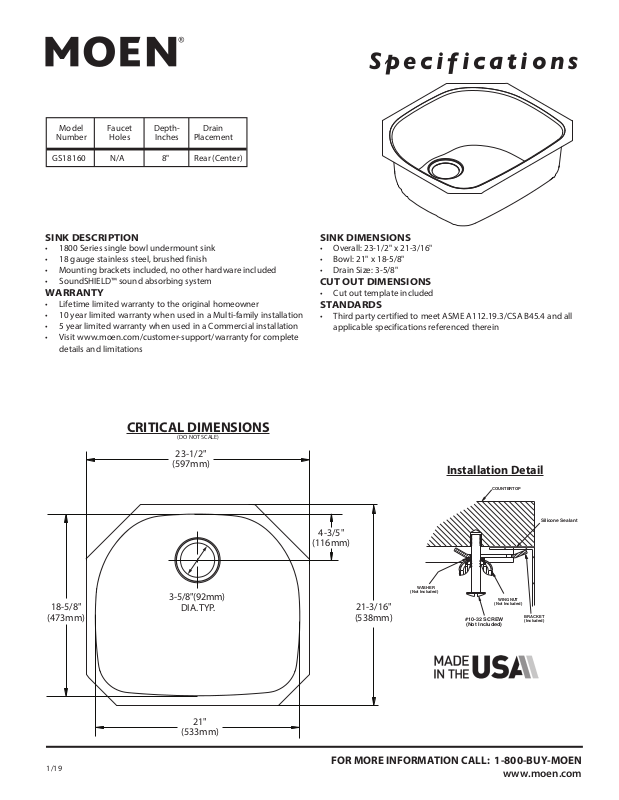

Spec i fi ca tions
Model
Number
GS18160
Faucet
Holes
N/A
Depth-
Inches
Drain
Placement
8" Rear (Center)
SINK DESCRIPTION
• 1800 Series single bowl undermount sink
• 18 gauge stainless steel, brushed finish
• Mounting brackets included, no other hardware included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete
details and limitations
SINK DIMENSIONS
• Overall: 23-1/2" x 21-3/16"
• Bowl: 21" x 18-5/8"
• Drain Size: 3-5/8"
CUT OUT DIMENSIONS
• Cut out template included
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
18-5/8"
(473mm)
CRITICAL DIMENSIONS
(DO NOT SCALE)
23-1/2"
(597mm)
3-5/8" (92mm)
DIA. TYP.
4-3/5"
(116mm)
21-3/16"
(538mm)
WASHER
(Not Included)
Installation Detail
COUNTERTOP
#10-32 SCREW
(Not Included)
WINGNUT
(Not Included)
BRACKET
(Included)
Silicone Sealant
1/19
21"
(533mm)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
