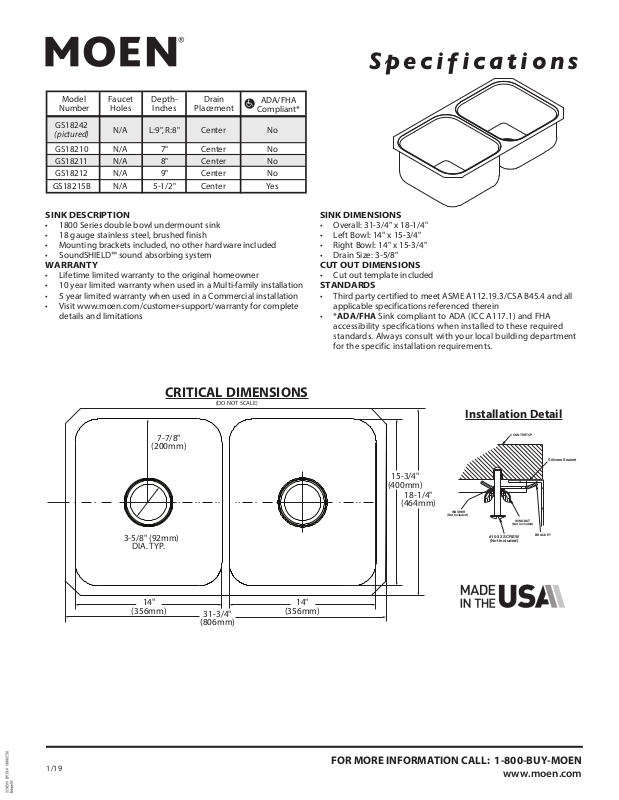

Spec i fi ca tions
(
Model
Number
GS18242
(pictured)
GS18210 7" Center
GS18211 8"
GS18212
GS18215B
Faucet
Holes
N/A
N/A
N/A
N/A
N/A
Depth-
Inches
L:9", R:8" Center
9" Center
5-1/2" Center
Drain
Placement
Center
ADA/FHA
Compliant*
No
No
No
No
Yes
SINK DESCRIPTION
• 1800 Series double bowl undermount sink
• 18 gauge stainless steel, brushed finish
• Mounting brackets included, no other hardware included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete
details and limitations
SINK DIMENSIONS
• Overall: 31-3/4" x 18-1/4"
• Left Bowl: 14" x 15-3/4"
• Right Bowl: 14" x 15-3/4"
• Drain Size: 3-5/8"
CUT OUT DIMENSIONS
• Cut out template included
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
• *ADA/FHA Sink compliant to ADA (ICC A117.1) and FHA
accessibility specifications when installed to these required
standards. Always consult with your local building department
for the specific installation requirements.
CRITICAL DIMENSIONS
7-7/8"
(200mm)
3-5/8" (92mm)
DIA. TYP.
14"
(356mm)
(DO NOT SCALE)
31-3/4"
(806mm)
14"
(356mm)
15-3/4"
(400mm)
18-1/4"
(464mm)
Installation Detail
COUNTERTOP
WASHER
(Not Included)
#10-32 SCREW
Not Included)
WINGNUT
(Not Included)
Silicone Sealant
BRACKET
1/19
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
