DESCRIPTION
9-7/64"
(159mm)
4-5/8"
• Component construction with various nishes identied by sux
• 1/2" IPS connections will accept standard ball nose connection for 3/8" tubing
• Includes non-metallic pop-up type waste assembly
OPERATION
• Lever style handles
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counter-clockwise to close)
FLOW
• Water usage is limited to these maximum ow rates as indicated by the corresponding
product markings
° 1.2 gpm max (4.5L/min) at 60 psi
CARTRIDGE
• 1224 cartridge design
• Nonmetallic and stainless steel material
STANDARDS
• Third party certied to WaterSense®, ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
• Certied to NSF 61/9 & 372
• Products marked with 1.2 gpm are compliant with California water eciency regulations
• Complies with California Proposition 65 and with the Federal Safe Drinking Water Act
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to the original consumer
purchaser
• 5 year warranty if used in commercial installations
NOTE
• *Service kits available for thicker or thinner deck applications. See Parts view.

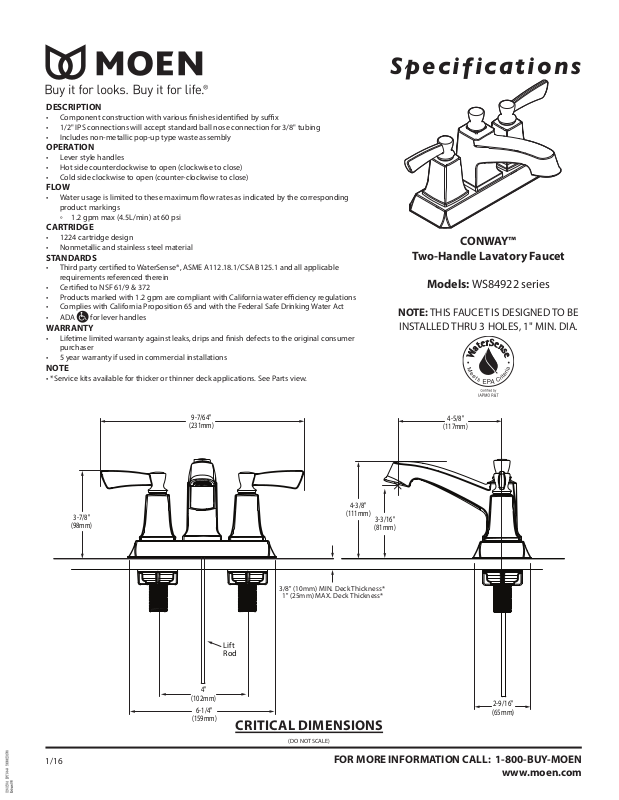

Specifications
CONWAY™
Two-Handle Lavatory Faucet
Models: WS84922 series
NOTE: THIS FAUCET IS DESIGNED TO BE
INSTALLED THRU 3 HOLES, 1" MIN. DIA.
3-7/8"
(98mm)
(231mm)
4"
(102mm)
6-1/4"
4-3/8"
(111mm)
3/8" (10mm) MIN. Deck Thickness*
1" (25mm) MAX. Deck Thickness*
Lift
Rod

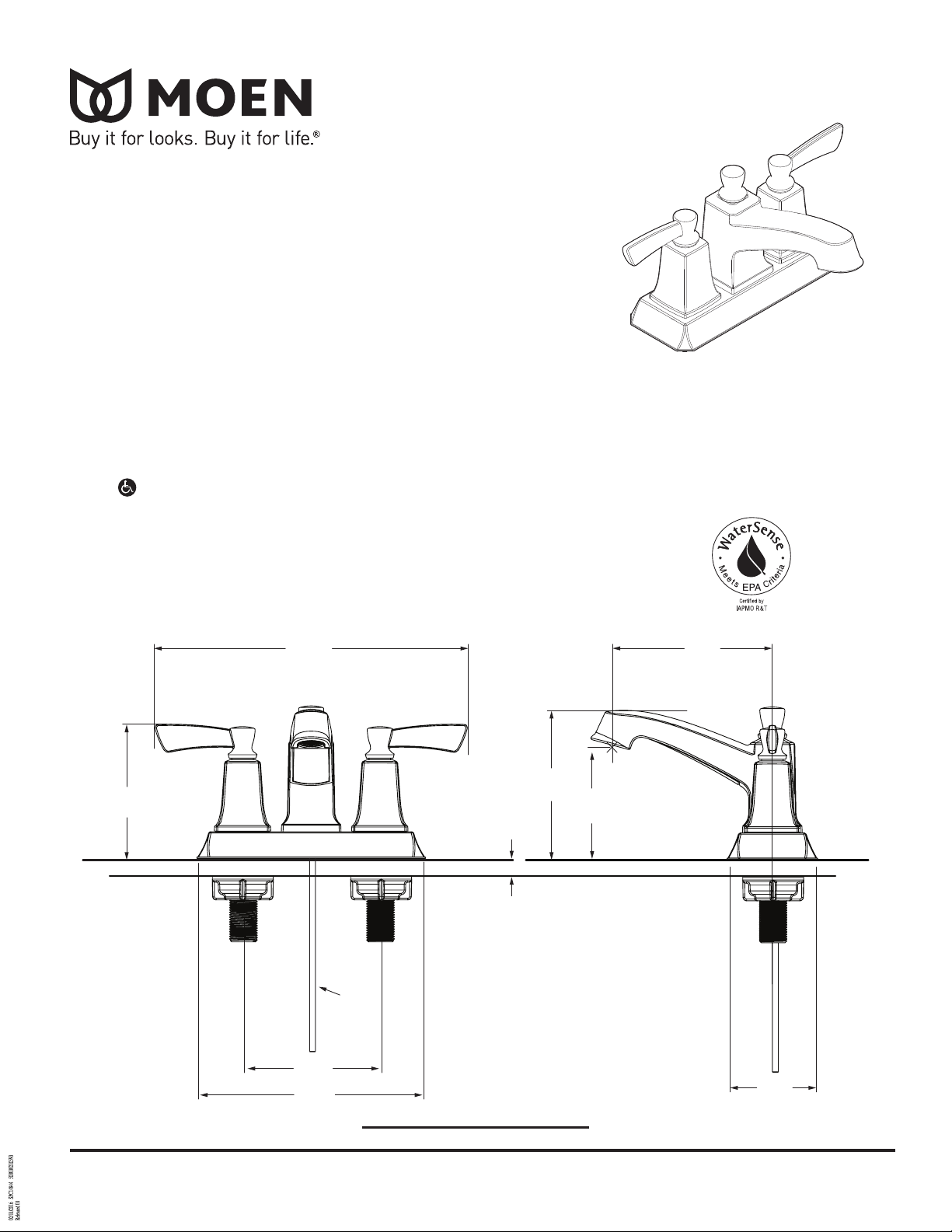

CRITICAL DIMENSIONS
(DO NOT SCALE)
(117mm)
3-3/16"
(81mm)
2-9/16"
(65mm)
1/16
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
