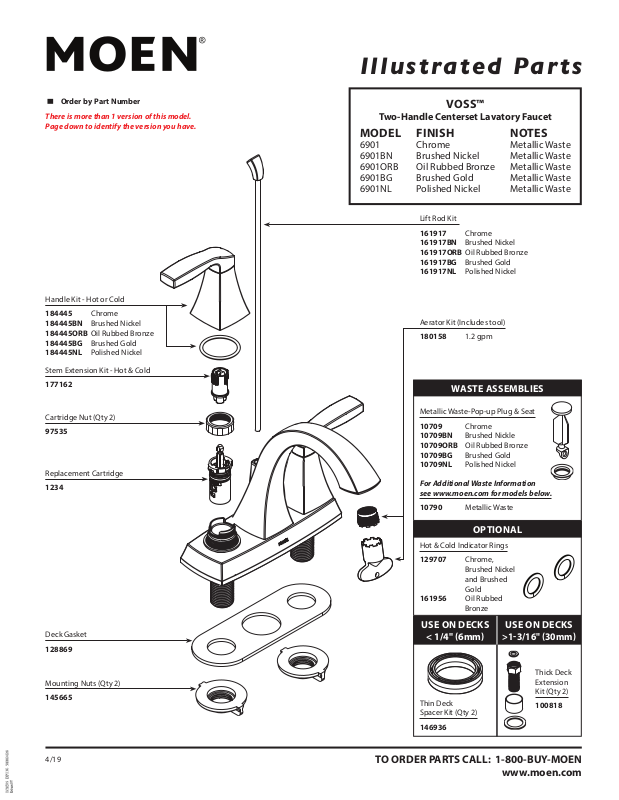

Page 1
Illustrated Parts
Order by Part Number
There is more than 1 version of this model.
Page down to identify the version you have.
Handle Kit - Hot or Cold
184445 Chrome
184445BN Brushed Nickel
184445ORB Oil Rubbed Bronze
184445BG Brushed Gold
184445NL Polished Nickel
Stem Extension Kit - Hot & Cold
177162
VOSS™
Two-Handle Centerset Lavatory Faucet
MODEL FINISH NOTES
6901 Chrome Metallic Waste
6901BN Brushed Nickel Metallic Waste
6901ORB Oil Rubbed Bronze Metallic Waste
6901BG Brushed Gold Metallic Waste
6901NL Polished Nickel Metallic Waste
Lift Rod Kit
161917 Chrome
161917BN Brushed Nickel
161917ORB Oil Rubbed Bronze
161917BG Brushed Gold
161917NL Polished Nickel
Aerator Kit (Includes tool)
180158 1.2 gpm
WASTE ASSEMBLIES
Cartridge Nut (Qty 2)
97535
Replacement Cartridge
1234
Deck Gasket
128869
Mounting Nuts (Qty 2)
145665
Metallic Waste-Pop-up Plug & Seat
10709 Chrome
10709BN Brushed Nickle
10709ORB Oil Rubbed Bronze
10709BG Brushed Gold
10709NL Polished Nickel
For Additional Waste Information
see www.moen.com for models below.
10790 Metallic Waste
OPTIONAL
Hot & Cold Indicator Rings
129707 Chrome,
161956 Oil Rubbed
USE ON DECKS
< 1/4" 6mm
Thin Deck
Spacer Kit (Qty 2)
146936
Brushed Nickel
and Brushed
Gold
Bronze
USE ON DECKS
>13/16" 30mm
Thick Deck
Extension
Kit (Qty 2)
100818
4/19
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
Order by Part Number
Order by Part Number
Handle Kit - Hot
161945 Chrome
161945BN Brushed Nickel
161945ORB Oil Rubbed Bronze
Illustrated Parts
VOSS™
Two-Handle Centerset Lavatory Faucet
MODEL FINISH NOTES
6901 Chrome Metallic Waste
6901BN Brushed Nickel Metallic Waste
6901ORB Oil Rubbed Bronze Metallic Waste
Lift Rod Kit
161917 Chrome
161917BN Brushed Nickel
161917ORB Oil Rubbed Bronze
Handle Kit - Cold
163138 Chrome
163138BN Brushed Nickel
163138ORB Oil Rubbed Bronze
Aerator Kit (Includes tool)
180158 1.2 gpm
137401 1.5 gpm
Cartridge Nut (Qty 2)
97535
Replacement Cartridge
1224
Deck Gasket
128869
Hardware Kit (Qty 2)
13678
WASTE ASSEMBLIES
Metallic Waste-Pop-up Plug & Seat
10709 Chrome
10709BN Brushed Nickle
10709ORB Oil Rubbed Bronze
For Additional Waste Information
see www.moen.com for models below.
10790 Metallic Waste
OPTIONAL
Hot & Cold Indicator Rings
129707 Chrome &
Brushed Nickel
161956 Oil Rubbed
USE ON DECKS
< 1/4" 6mm
Thin Deck
Spacer Kit (Qty 2)
146936
Bronze
USE ON DECKS
>13/16" 30mm
Thick Deck
Extension
Kit (Qty 2)
100818
Rev. 9/16
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
