DESCRIPTION
• Fixed mount showerhead
• Finish identiable by sux
• 1/2" IPS connection
• Metal Shower Ball
OPERATION
• Six functions
• Rotate outer ring to select function
FLOW
• Designed to deliver 1.75 gpm (6.6 L/min) MAX at 80 psi
STANDARDS
• Third party certied at WaterSense®, ASME A112.18.1/CSA B125.1 and
all applicable requirements referenced therein
• Products marked with 1.75 gpm are compliant with California water
eciency regulations
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to the
original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations

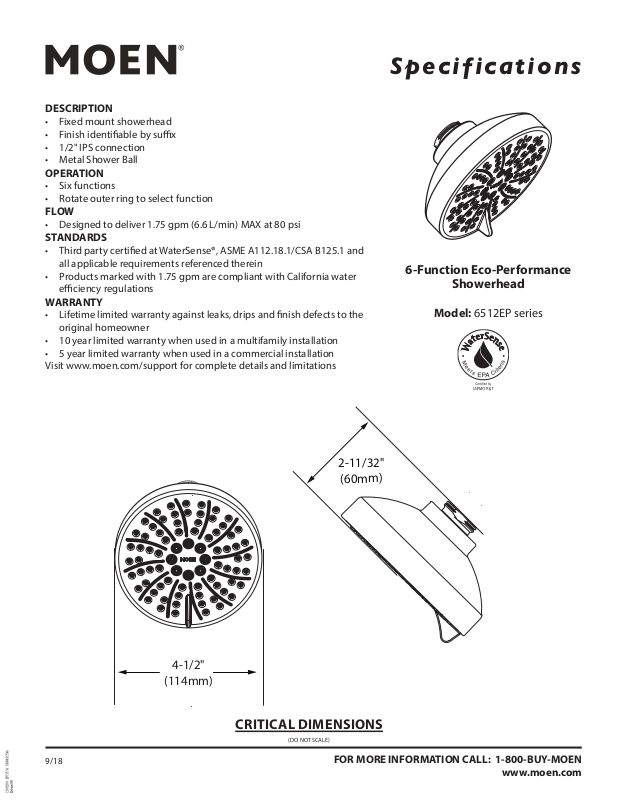

Specifications
6-Function Eco-Performance
Showerhead
Model: 6512EP series
4-1/2"
(114mm)
2-11/32"
(60mm)
CRITICAL DIMENSIONS
(DO NOT SCALE)
9/18
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
