DESCRIPTION
4-15/16
Thick Wall Installation
Thin Wall Installation
• ADA compliant operation
• Metal and brass construction with various nishes identied by sux
• Inlets and outlets on same plane
OPERATION
• Lever style handle
• Detents at each ow position
• Rotary 360° handle operation
• Valve operates 3 independent functions
CARTRIDGE
• Ceramic disk cartridge
• Pair with 3362, 3 function transfer rough-in valve
STANDARDS
• Third party certied to meet ASME A112.18/CSA B125.1 and all
applicable requirements therein
• ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to
the original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations

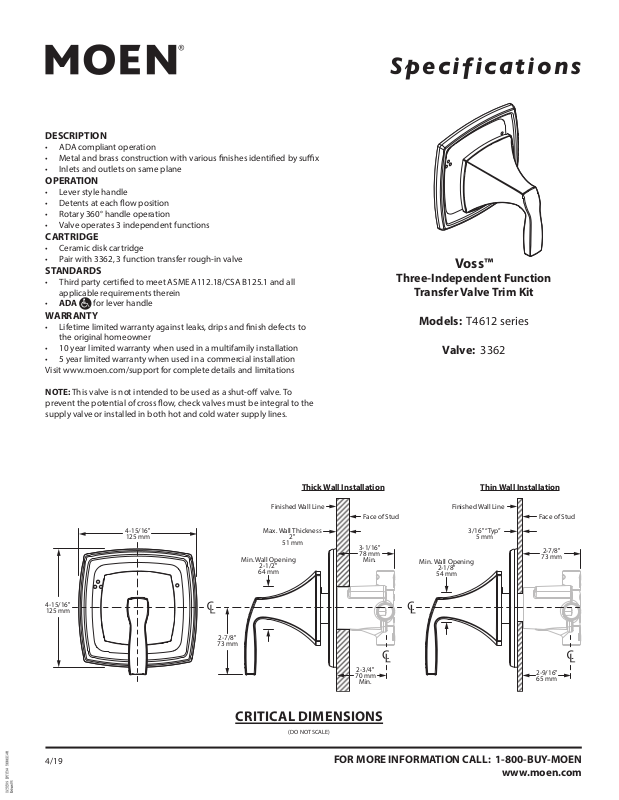

Specifications
Voss™
Three-Independent Function
Transfer Valve Trim Kit
Models: T4612 series
Valve: 3362
NOTE: This valve is not intended to be used as a shut-o valve. To
prevent the potential of cross ow, check valves must be integral to the
supply valve or installed in both hot and cold water supply lines.
Finished Wall Line
125 mm
4-15/16"
125 mm
"
2-7/8"
73 mm
Max. Wall Thickness
2"
51 mm
Min. Wall Opening
2-1/2"
64 mm
Face of Stud
3-1/16"
78 mm
Min.
2-3/4"
70 mm
Min.
Finished Wall Line
3/16" “Typ”
Min. Wall Opening
2-1/8"
54 mm
5 mm
Face of Stud
2-7/8"
73 mm
2-9/16"
65 mm
4/19

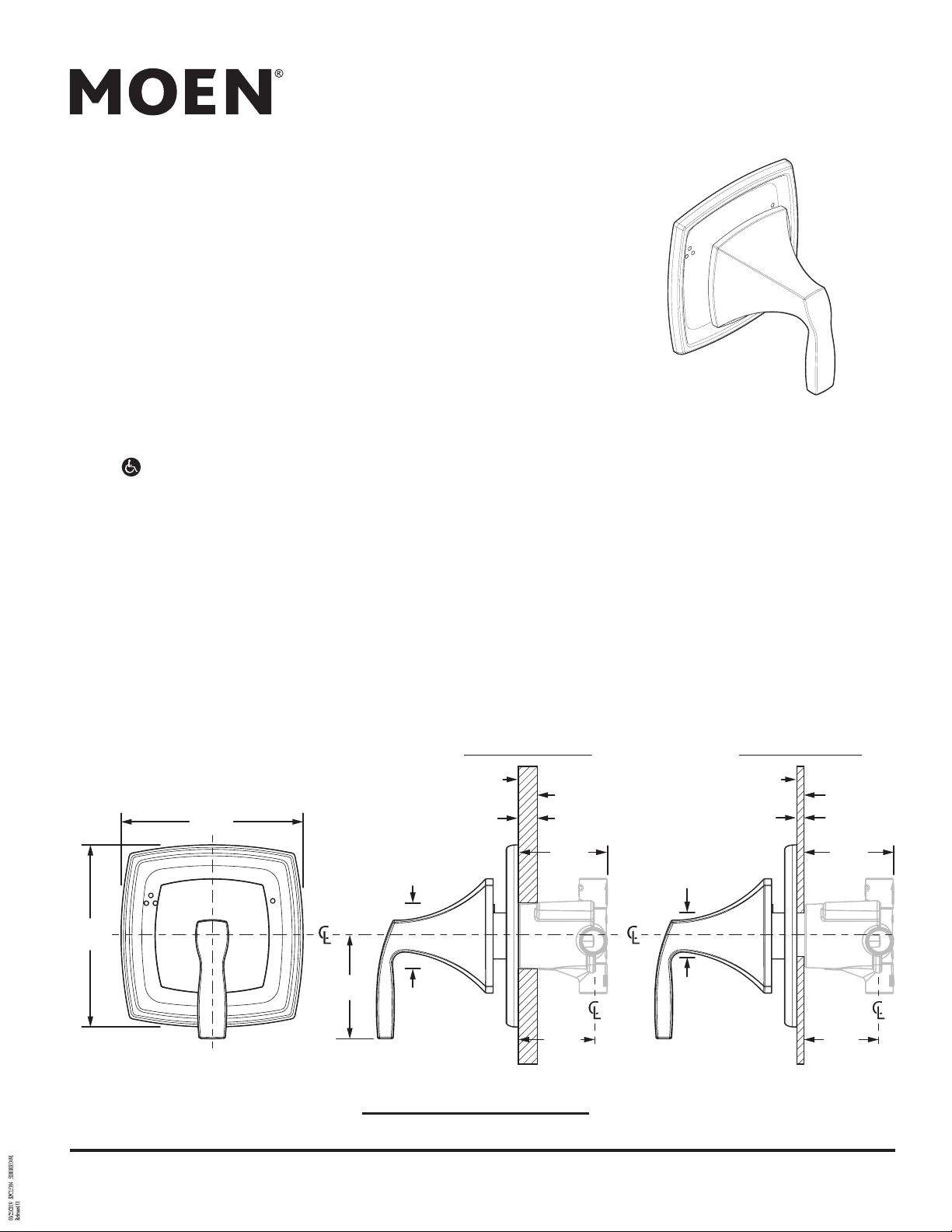

CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
