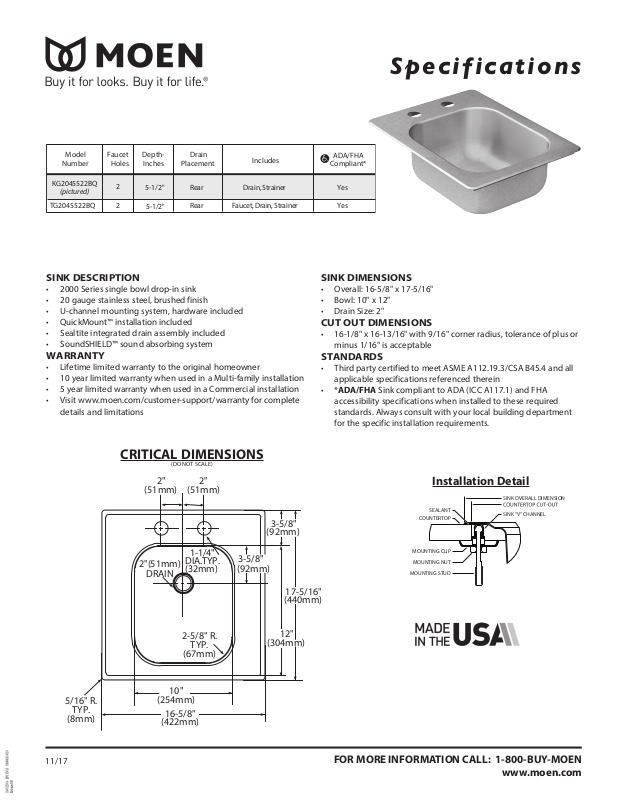

Page 1
Specifications
SINK OVERALL DIMENSION
Model
Number
KG2045522BQ
(pictured)
TG2045522BQ Rear
Faucet
Holes
2
2
Depth-
Inches
5-1/2" Rear
5-1/2"
Drain
Placement
Includes
Drain, Strainer
Faucet, Drain, Strainer
SINK DESCRIPTION
• 2000 Series single bowl drop-in sink
• 20 gauge stainless steel, brushed finish
• U-channel mounting system, hardware included
• QuickMount™ installation included
• Sealtite integrated drain assembly included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete
details and limitations
ADA/FHA
Compliant*
Yes
Yes
SINK DIMENSIONS
• Overall: 16-5/8" x 17-5/16"
• Bowl: 10" x 12"
• Drain Size: 2"
CUT OUT DIMENSIONS
• 16-1/8" x 16-13/16" with 9/16" corner radius, tolerance of plus or
minus 1/16" is acceptable
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
• *ADA/FHA Sink compliant to ADA (ICC A117.1) and FHA
accessibility specifications when installed to these required
standards. Always consult with your local building department
for the specific installation requirements.
5/16" R.
TYP.
(8mm)
CRITICAL DIMENSIONS
2"
(51mm)
(DO NOT SCALE)
2"
(51mm)
1-1/4"
2"(51mm)
DRAIN
DIA.TYP.
(32mm)
2-5/8" R.
TYP.
(67mm)
10"
(254mm)
16-5/8"
(422mm)
3-5/8"
(92mm)
3-5/8"
(92mm)
17-5/16"
(440mm)
12"
12"
(304mm)
(304mm)
Installation Detail
SEALANT
COUNTERTOP
MOUNTING CLIP
MOUNTING NUT
MOUNTING STUD
SINK “V” CHANNEL
11/17
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
