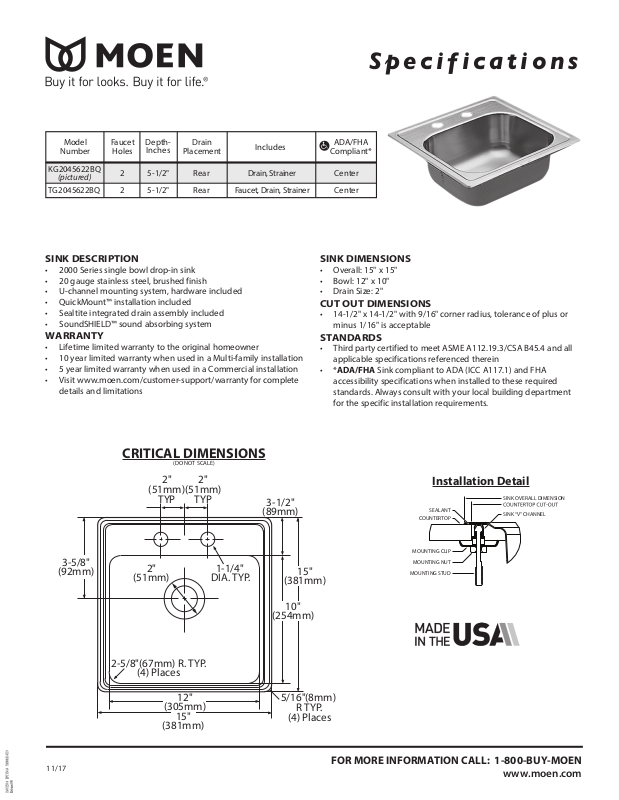

Moen NDPF1091 Specifications

Spec i fi ca tions

(381mm)

SINK OVERALL DIMENSION

Model

Number

KG2045622BQ

(pictured)

TG2045622BQ

Faucet

Holes

Depth-

Inches

2 5-1/2" Rear

2 5-1/2"Rear

Drain

Placement

Includes

Drain, Strainer

Faucet, Drain, Strainer

SINK DESCRIPTION

• 2000 Series single bowl drop-in sink

• 20 gauge stainless steel, brushed finish

• U-channel mounting system, hardware included

• QuickMount™ installation included

• Sealtite integrated drain assembly included

• SoundSHIELD™ sound absorbing system

WARRANTY

• Lifetime limited warranty to the original homeowner

• 10 year limited warranty when used in a Multi-family installation

• 5 year limited warranty when used in a Commercial installation

• Visit www.moen.com/customer-support/warranty for complete
details and limitations

ADA/FHA

Compliant*

Center

Center

SINK DIMENSIONS

• Overall: 15" x 15"

• Bowl: 12" x 10"

• Drain Size: 2"

CUT OUT DIMENSIONS

• 14-1/2" x 14-1/2" with 9/16" corner radius, tolerance of plus or
minus 1/16" is acceptable

STANDARDS

• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein

• *ADA/FHA Sink compliant to ADA (ICC A117.1) and FHA

accessibility specifications when installed to these required

standards. Always consult with your local building department
for the specific installation requirements.

3-5/8"

(92mm)

CRITICAL DIMENSIONS

(DO NOT SCALE)

2"

(51mm)

TYP

2"

(51mm)

TYP

2"

(51mm)

2-5/8"(67mm) R. TYP.

(4) Places

12"

(305mm)

15"

1-1/4"

DIA. TYP.

3-1/2"

(89mm)

(381mm)

10"

(254mm)

5/16"(8mm)

(4) Places

15"

R TYP.

Installation Detail

SEALANT

COUNTERTOP

MOUNTING CLIP

MOUNTING NUT

MOUNTING STUD

SINK “V” CHANNEL

11/17

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com
