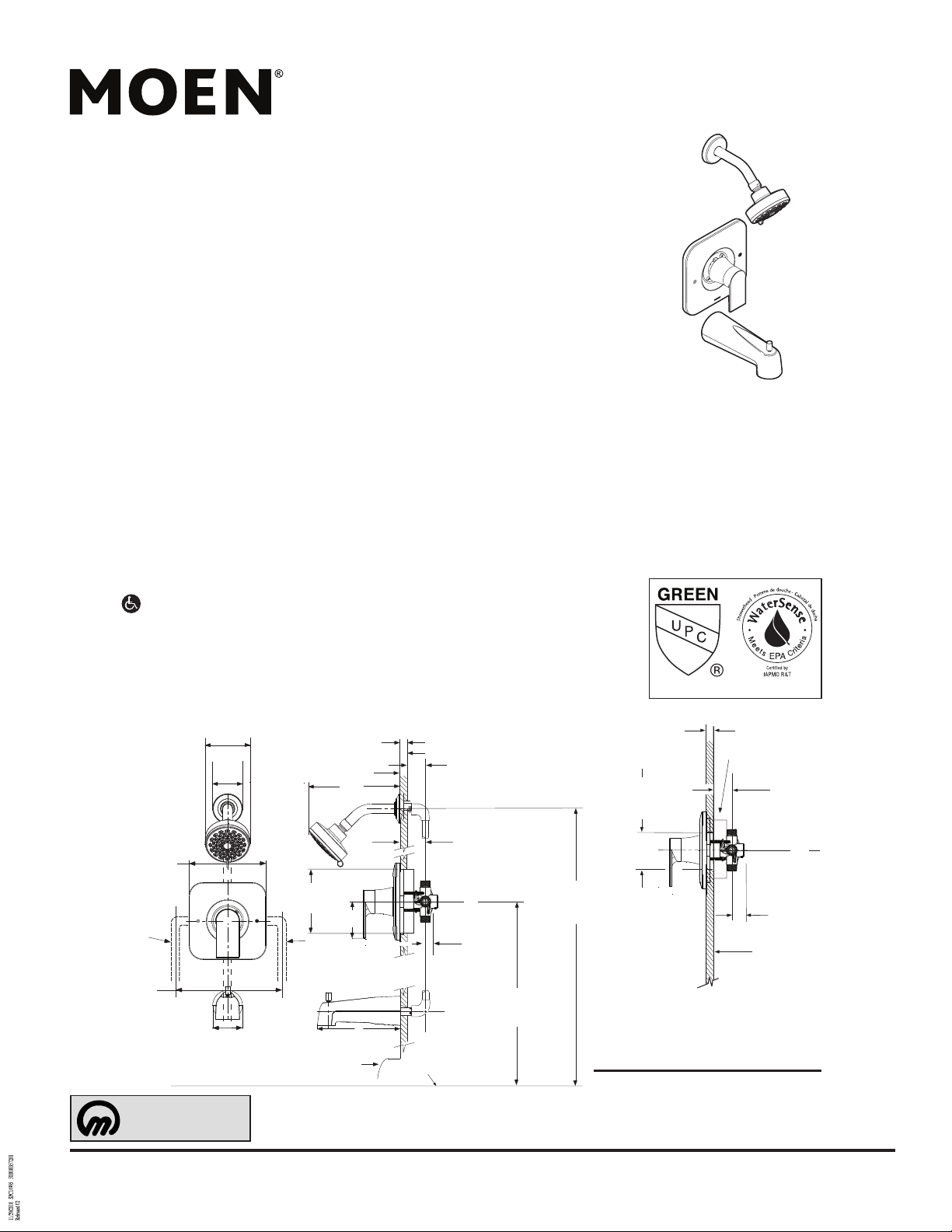

Page 1
There is more than 1 version of this model.
Page down to identify the version you have.
DESCRIPTION
• Metal construction with various nishes identi ed by su x
• Includes showerhead, arm, ange and diverter spout
OPERATION
• Lever style handle with temperature red/blue indicator on the escutcheon
• 3 function showerhead: full, wide and massage
• Handle operates counterclockwise through a 270˚ arc with o at 6 o’clock and
maximum hot at the 9 o’clock position. Shut o in clockwise direction
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintains selected discharge temperature to
± 3.6° F (±2˚ C)
• 6 function showerhead
FLOW
• EP su x models are limited to 2.0 gpm (7.6 L/min) max for products manufactured prior to June 30, 2018. EP su x models manufactured after June 30,
2018 are limited to 1.75 gpm (6.7 L/min) max.
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certi ed to meet ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
•
EP su x models are IAPMO Green listed and third party certi ed to WaterSense®
• ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to the original
homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
4-1/2"
(114mm)
2-1/2"
(65mm)
2" CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
8-3/8"
(212mm)
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
Specifications
Genta™ POSI-TEMP®
Single-Handle Tub/Shower Trim Kit
Models: T2471 series - valve trim only
T2472 series - shower trim only
T2473 series - tub/shower trim only
Valves: 62300 series
2500 series
EP Suffix Models Only
3/16" (typ) (5mm)
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
PLASTER GROUND
1-1/2"
(38mm)
Rev. 11/18
6-1/2"
(165mm)
HOT
INLET
7-1/2"
(191mm)
MIN
M•pact System
SCALE 25.400
2-1/2"
(65mm)
4-1/2" (114mm)
WALL OPENING
COLD
INLET
TUB RIM
2-7/8"
(73mm)
7"
(179mm)
FLOOR
2-1/2" MAX. (63mm)
C
L
1-3/8" (35mm)
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
TUB SHOWER
C
L
6'-6"
(1981mm)
1-3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com

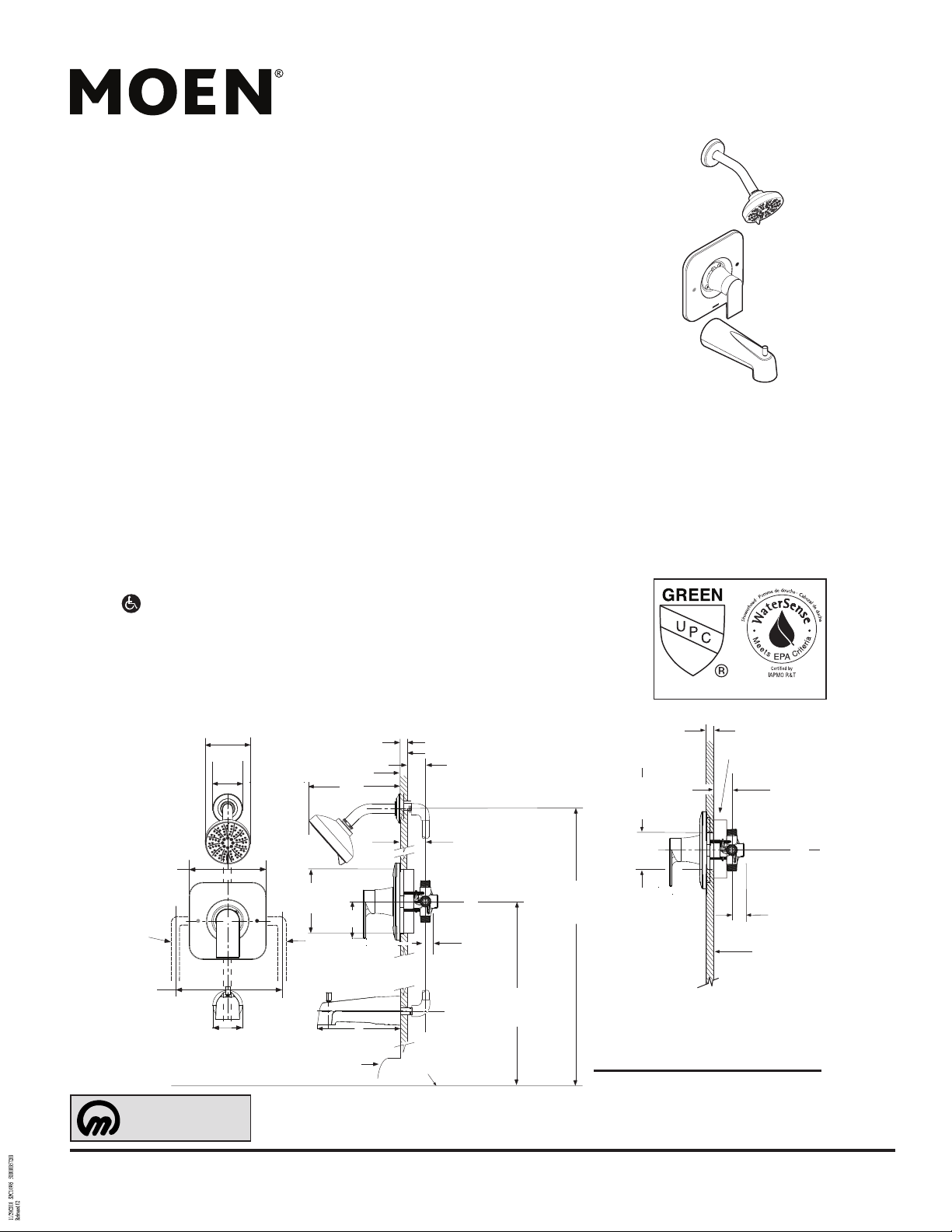

Page 2
DESCRIPTION
• Metal construction with chrome nish
• Includes showerhead, arm, ange and diverter spout
OPERATION
• Lever style handle with temperature red/blue indicator on the escutcheon
• 3 function showerhead: full, wide and massage
• Handle operates counterclockwise through a 270˚ arc with o at 6 o’clock and
maximum hot at the 9 o’clock position. Shut o in clockwise direction
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintains selected discharge temperature to
± 3.6° F (±2˚ C)
• 6 function showerhead
FLOW
• EP su x models are limited to 2.0 gpm (7.6 L/min) max for products manufactured prior to June 30, 2018. EP su x models manufactured after June 30,
2018 are limited to 1.75 gpm (6.7 L/min) max.
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certi ed to meet ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
•
EP su x models are IAPMO Green listed and third party certi ed to WaterSense®
• ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to the original
homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
3-3/4"
(95mm)
2-1/2"
(65mm)
2" CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
7-1/8"
(181mm)
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
Specifications
Genta™ POSI-TEMP®
Single-Handle Tub/Shower Trim Kit
Models: T2471 series - valve trim only
T2472 series - shower trim only
T2473 series - tub/shower trim only
Valves: 62300 series
2500 series
EP Suffix Models Only
3/16" (typ) (5mm)
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
PLASTER GROUND
1-1/2"
(38mm)
Rev. 12/17
6-1/2"
(165mm)
HOT
INLET
7-1/2"
(191mm)
MIN
M•pact System
SCALE 25.400
2-1/2"
(65mm)
4-1/2" (114mm)
WALL OPENING
COLD
INLET
TUB RIM
2-7/8"
(73mm)
7"
(179mm)
FLOOR
2-1/2" MAX. (63mm)
C
L
1-3/8" (35mm)
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
TUB SHOWER
C
L
6'-6"
(1981mm)
1-3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
