DESCRIPTION
• Metal construction with Chrome plated nish
• Pressure balancing cycle valve design with 1/4 turn stops
• Vandal resistant lever handle
• Red and blue durable plastic temperature indicators
OPERATION
• Handle operates counterclockwise through a 270° arc with o at 6 o’clock,
and the maximum hot at the 9 o’clock position
• Adjustable temperature limit stop
•
Pressure balancing mechanism maintains selected discharge temperature to ± 2°
CARTRIDGE
• Pair with a brass Posi-Temp® rough-in valve:
• 8370HD*: 1/2" CC connection without integral stops
• 8371HD*: 1/2" CC connection with integral stops
• 8372HD*: 1/2" IPS connection with integral stops
• 8373HD*: 1/2" PEX connection with integral stops
• 8374HD*: 1/2" CPVC connection with integral stops
• 8375HD*: 1/2" UPONOR connection with integral stops
* Includes the 1222HD Brass Posi-Temp® Cartridge
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certied to: ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
• ADA for lever handle
WARRANTY
• Warranted for 5 years against material or manufacturing defects
Specifications

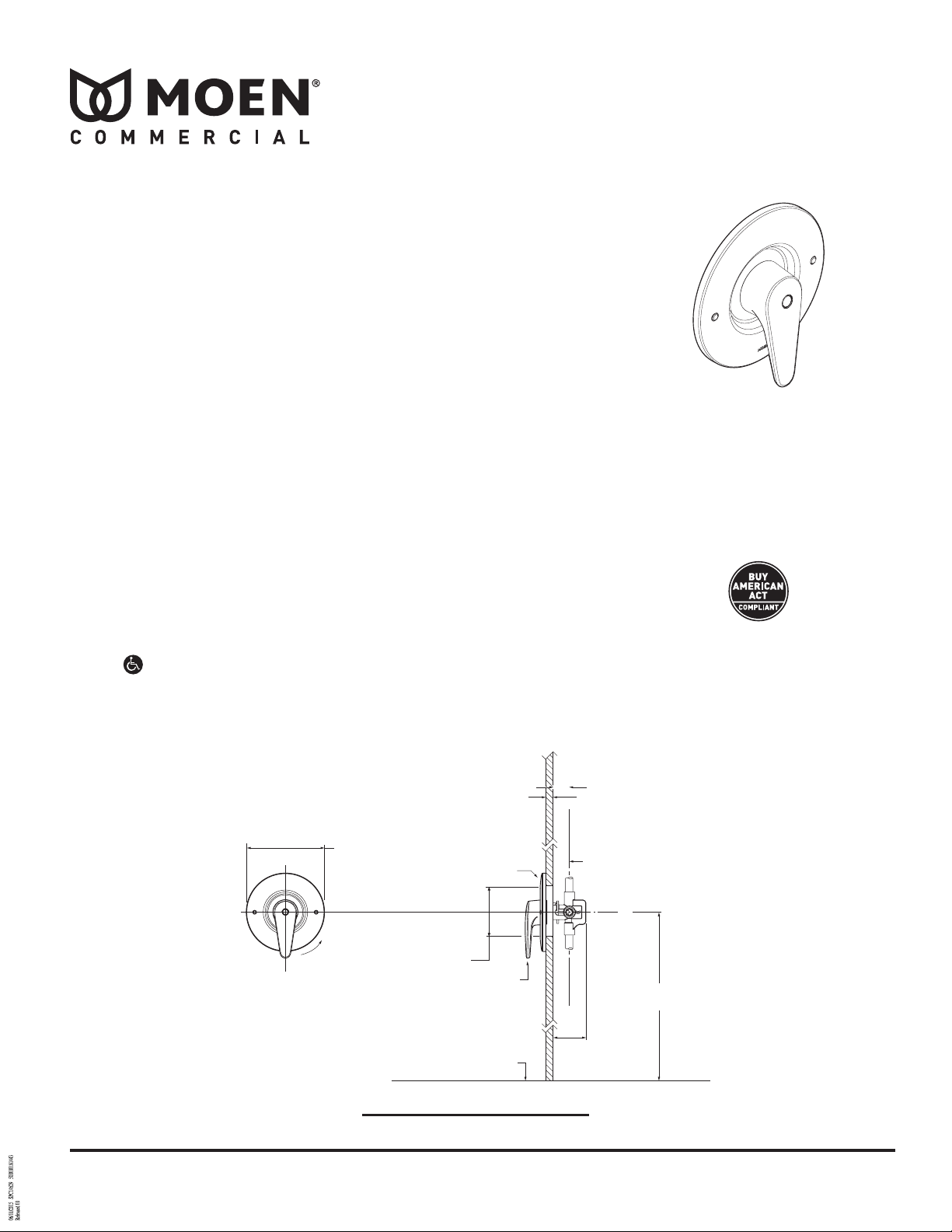

M•Dura™ Commercial
Single-Handle Posi-Temp®
Pressure Balancing Valve
Trim Only
Model: T9370
4/15
FINISHED
WALL LINE
3/16" - 2"
7" (178mm)
ESC. DIAM.
DIRECTION
OF HANDLE
ROTATION
4-1/2" (114mm)
Plasterground
Opening
ESCUTCHEON
HANDLE
FLOOR LINE
CRITICAL DIMENSIONS
(DO NOT SCALE)
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2-1/2" MAX.
(63mm)
C
L
36"
(912mm)
3" (76mm)
MIN. WALL
CAVITY
