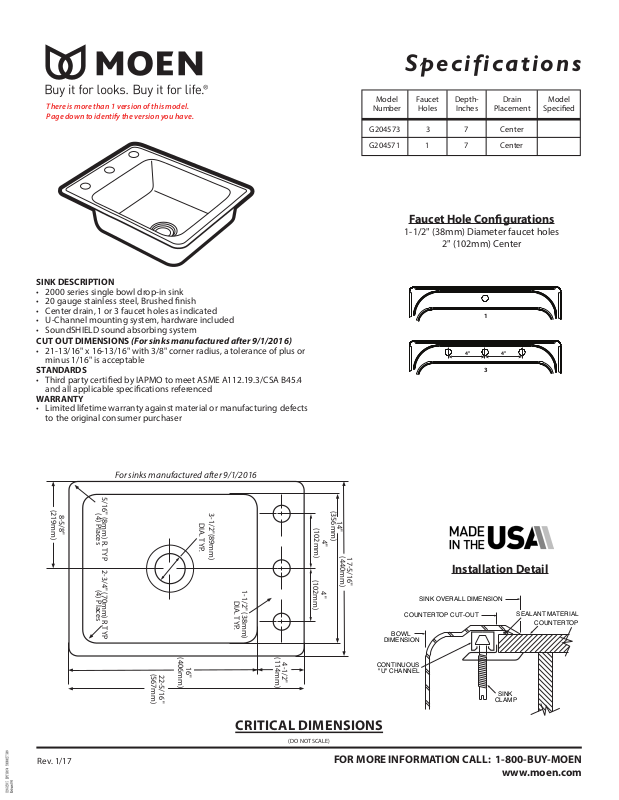

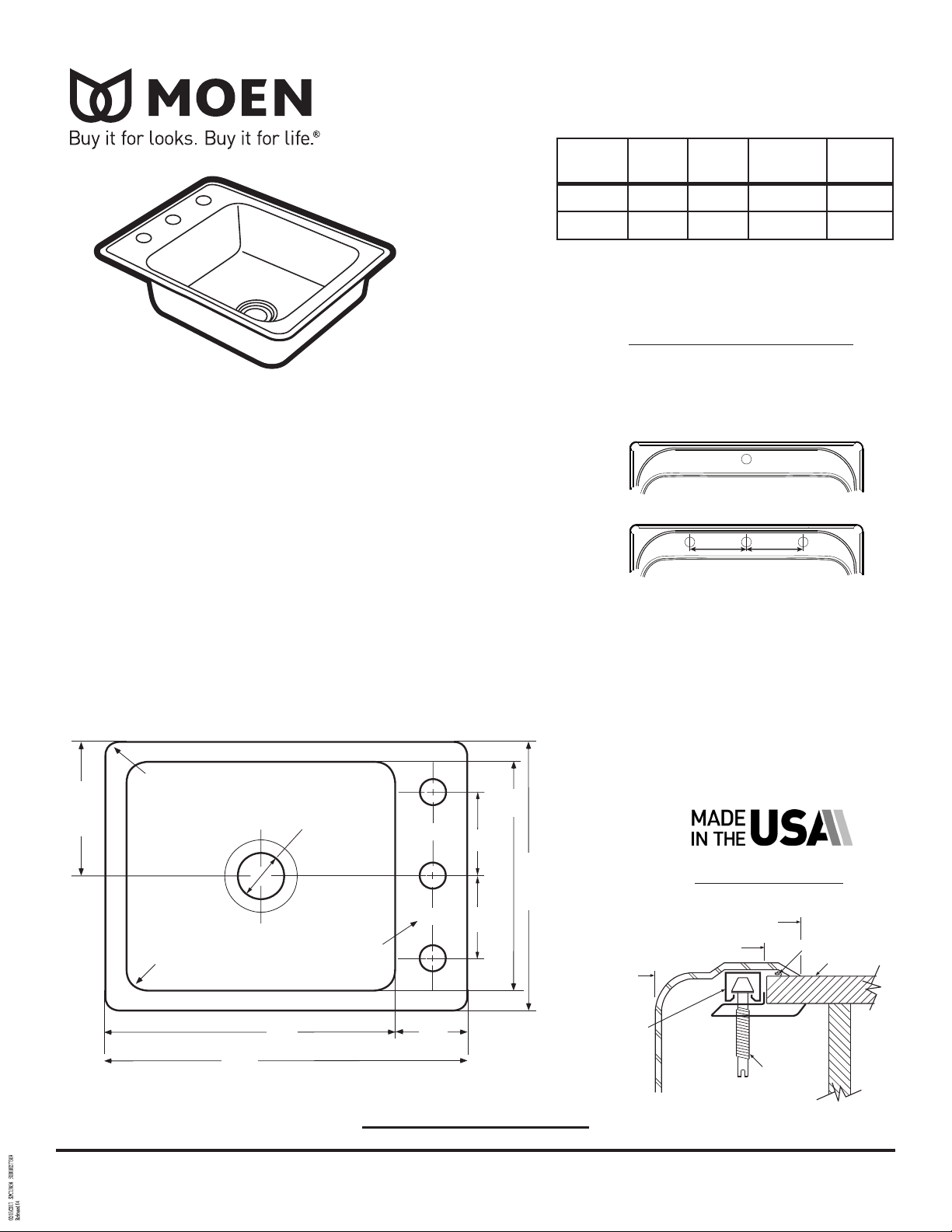

Specifications
2
4"
1
There is more than 1 version of this model.
Page down to identify the version you have.
SINK DESCRIPTION
• 2000 series single bowl drop-in sink
• 20 gauge stainless steel, Brushed nish
• Center drain, 1 or 3 faucet holes as indicated
• U-Channel mounting system, hardware included
• SoundSHIELD sound absorbing system
CUT OUT DIMENSIONS (For sinks manufactured after 9/1/2016)
• 21-13/16" x 16-13/16" with 3/8" corner radius, a tolerance of plus or
minus 1/16" is acceptable
STANDARDS
• Third party certied by IAPMO to meet ASME A112.19.3/CSA B45.4
and all applicable specications referenced
WARRANTY
• Limited lifetime warranty against material or manufacturing defects
to the original consumer purchaser
Model
Number
G204573 37Center
G204571 17Center
Faucet
Holes
Depth-
Inches
Drain
Placement
Faucet Hole Congurations
1-1/2" (38mm) Diameter faucet holes
2" (102mm) Center
1
4"
4"
3
Model
Specied
(219mm)
8-5/8"
Rev. 1/17
For sinks manufactured after 9/1/2016
5/16" (8mm) R. TYP
(4) Places
2-3/4" (70mm) R.TYP
(4) Places
(567mm)
22-5/16"
DIA. TYP.
(406mm)
16"
3-1/2" (89mm)
(102mm)
4"
(102mm)
1-1/2" (38mm)
DIA. TYP.
(114mm)
4-1/2"
4"
CRITICAL DIMENSIONS
(DO NOT SCALE)
(356mm)
14"
(440mm)
17-5/16"
Installation Detail
SINK OVERALL DIMENSION
COUNTERTOP CUT-OUT
BOWL
DIMENSION
CONTINUOUS
"U" CHANNEL
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
SEALANT MATERIAL
COUNTERTOP
SINK
CLAMP
www.moen.com
Page 2
17"
Specifications
1
SINK DESCRIPTION
• 2000 series single bowl drop-in sink
• 20 gauge stainless steel, Brushed nish
• Center drain, 1 or 3 faucet holes as indicated
• U-Channel mounting system, hardware included
• SoundSHIELD sound absorbing system
CUT OUT DIMENSIONS (For sinks manufactured before 9/1/2016)
• 21-1/2" x 16-1/2" with 3/8" corner radius, a tolerance of plus or
minus 1/16" is acceptable
STANDARDS
• Third party certied by IAPMO to meet ASME A112.19.3/CSA B45.4
and all applicable specications referenced
WARRANTY
• Limited lifetime warranty against material or manufacturing defects
to the original consumer purchaser
Model
Number
G204573 37Center
G204571 17Center
Faucet
Holes
Depth-
Inches
Drain
Placement
Faucet Hole Congurations
1-1/2" (38mm) Diameter faucet holes
2" (102mm) Center
1
4" 4"
3
Model
Specied
(216mm)
8-1/2"
Rev. 11/16
For sinks manufactured before 9/1/2016
5/16" (8mm) R. TYP
(4) Places
2-3/4" (70mm) R.TYP
(4) Places
(406mm)
(559mm)
22"
3-1/2" (89mm)
DIA. TYP.
16"
(356mm)
14"
(102mm)
4"
(432mm)
1-1/2" (38mm)
DIA. TYP.
(114mm)
4-1/2"
(102mm)
4"
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
COUNTERTOP CUT-OUT
BOWL
DIMENSION
CONTINUOUS
"U" CHANNEL
Installation Detail
SINK OVERALL DIMENSION
SEALANT MATERIAL
COUNTERTOP
SINK
CLAMP
www.moen.com
