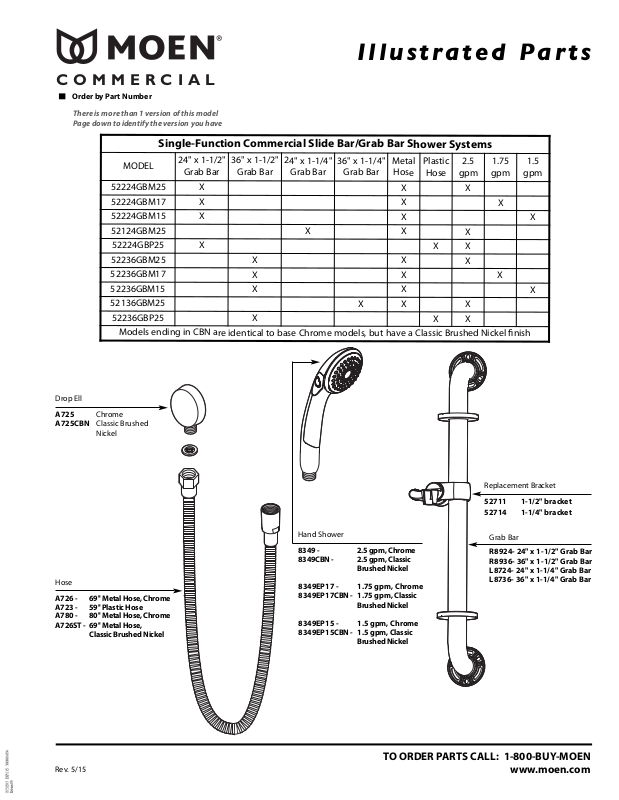

Page 1
C O M M E R C I A L
Order by Part Number
There is more than 1 version of this model
Page down to identify the version you have
Single-Function Commercial Slide Bar/Grab Bar Shower Systems
MODEL
52224GBM25
52224GBM17
52224GBM15
52124GBM25
52224GBP25
52236GBM25
52236GBM17
52236GBM15
52136GBM25
52236GBP25
Models ending in CBN are identical to base Chrome models, but have a Classic Brushed Nickel finish
24" x 1-1/2"
Grab Bar
X
X
X
X
36" x 1-1/2"
Grab Bar
X
X
X
X
24" x 1-1/4"
Grab Bar
X
I l l u s t r a t e d P a r t s
36" x 1-1/4"
Grab Bar
X
Metal
Hose
X
X
X
X
X
X
X
X
Plastic
Hose
X
X
2.5
gpm
X
X
X
X
X
X
1.75
gpm
X
X
1.5
gpm
X
X
Drop Ell
A725 Chrome
A725CBN Classic Brushed
Nickel
Hose
A726 - 69'' Metal Hose, Chrome
A723 - 59'' Plastic Hose
A780 - 80'' Metal Hose, Chrome
A726ST - 69'' Metal Hose,
Classic Brushed Nickel
Hand Shower
8349 - 2.5 gpm, Chrome
8349CBN - 2.5 gpm, Classic
Brushed Nickel
8349EP17 - 1.75 gpm, Chrome
8349EP17CBN - 1.75 gpm, Classic
Brushed Nickel
8349EP15 - 1.5 gpm, Chrome
8349EP15CBN - 1.5 gpm, Classic
Brushed Nickel
Replacement Bracket
52711 1-1/2" bracket
52714 1-1/4" bracket
Grab Bar
R8924- 24" x 1-1/2" Grab Bar
R8936- 36" x 1-1/2" Grab Bar
L8724- 24" x 1-1/4" Grab Bar
L8736- 36" x 1-1/4" Grab Bar
Rev. 5/15
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
C O M M E R C I A L
Order by Part Number
MODEL
52224GBM25
52224GBM17
52224GBM15
52124GBM25
52224GBP25
52236GBM25
52236GBM17
52236GBM15
52136GBM25
52236GBP25
Models ending in CBN are identical to base Chrome models, but have a Classic Brushed Nickel finish
Drop Ell
A725 Chrome
A725CBN Classic Brushed
Nickel
I l l u s t r a t e d P a r t s
Single-Function Commercial Slide Bar/Grab Bar Shower Systems
24" x 1-1/2"
Grab Bar
X
X
X
X
36" x 1-1/2"
Grab Bar
X
X
X
X
24" x 1-1/4"
Grab Bar
X
36" x 1-1/4"
Grab Bar
X
Metal
Hose
X
X
X
X
X
X
X
X
Plastic
Hose
X
X
2.5
gpm
X
X
X
X
X
X
1.75
gpm
X
X
1.5
gpm
X
X
Vacuum Breaker (Obsolete)
52703 Chrome
A714ST Classic Brushed
Nickel
Hose
A726 - 69'' Metal Hose, Chrome
A723 - 59'' Plastic Hose
A780 - 80'' Metal Hose, Chrome
A726ST - 69'' Metal Hose,
Classic Brushed Nickel
Hand Shower
8349 - 2.5 gpm, Chrome
8349CBN - 2.5 gpm, Classic
Brushed Nickel
8349EP17 - 1.75 gpm, Chrome
8349EP17CBN - 1.75 gpm, Classic
Brushed Nickel
8349EP15 - 1.5 gpm, Chrome
8349EP15CBN - 1.5 gpm, Classic
Brushed Nickel
Replacement Bracket
52711 1-1/2" bracket
52714 1-1/4" bracket
Grab Bar
R8924- 24" x 1-1/2" Grab Bar
R8936- 36" x 1-1/2" Grab Bar
L8724- 24" x 1-1/4" Grab Bar
L8736- 36" x 1-1/4" Grab Bar
Rev. 5/15
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
