DESCRIPTION
• Available in various nishes identied by sux
• Fixed mount showerhead only
• Nonmetallic spray face
• Brass swivel ball assembly
OPERATION
• 5 function: rotate outer ring to select
FLOW
• Designed to deliver 2.5 gpm (9.5 L/min) at 60 psi
• EP sux models are limited to 2.0 gpm (7.6 L/min) at 80 psi
STANDARDS
• Third party certied to meet ASME A112.18.1/CSA B125.1 and all
applicable requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and nish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations

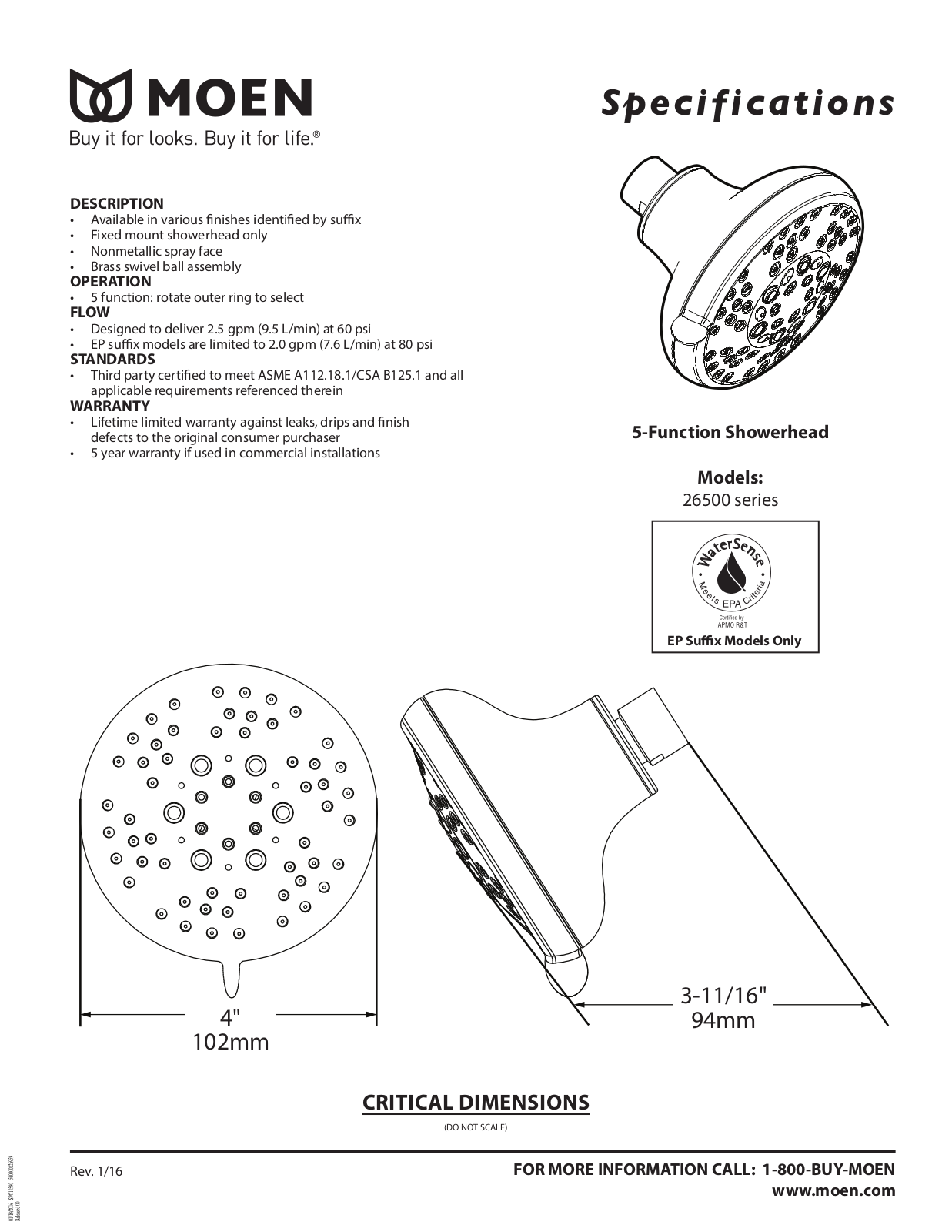

Specifications
5-Function Showerhead
Models:
26500 series
4"
102mm
EP Sux Models Only
3-11/16"
94mm
Rev. 1/16
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
