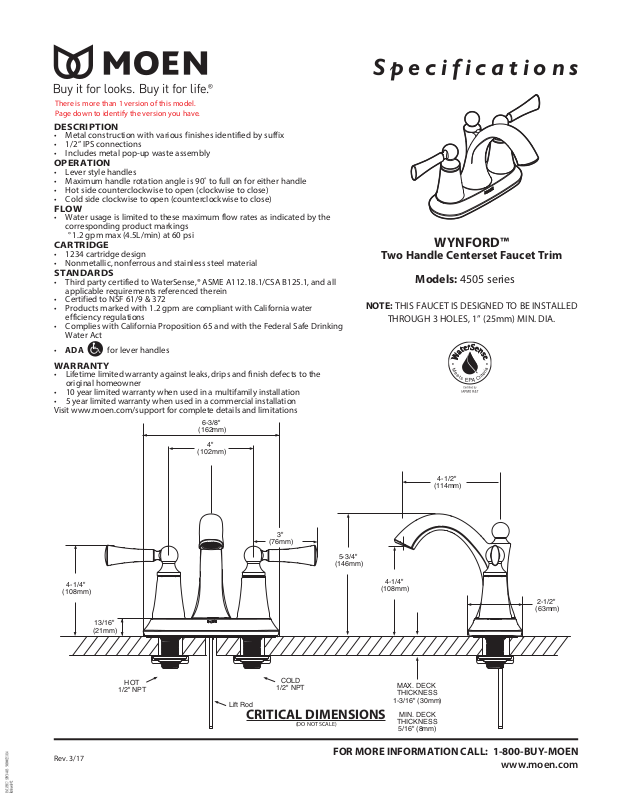

6-3/8"
There is more than 1 version of this model.
Page down to identify the version you have.
DESCRIPTION
• Metal construction with various finishes identified by suffix
• 1/2” IPS connections
• Includes metal pop-up waste assembly
OPERATION
• Lever style handles
• Maximum handle rotation angle is 90˚ to full on for either handle
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
FLOW
• Water usage is limited to these maximum flow rates as indicated by the
corresponding product markings
° 1.2 gpm max (4.5L/min) at 60 psi
CARTRIDGE
• 1234 cartridge design
• Nonmetallic, nonferrous and stainless steel material
STANDARDS
• Third party certified to WaterSense,® ASME A112.18.1/CSA B125.1, and all
applicable requirements referenced therein
• Certified to NSF 61/9 & 372
• Products marked with 1.2 gpm are compliant with California water
efficiency regulations
• Complies with California Proposition 65 and with the Federal Safe Drinking
Water Act
• ADA
for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to the
original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
Spec i fi ca tions
WYNFORD™
Two Handle Centerset Faucet Trim
Models: 4505 series
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
THROUGH 3 HOLES, 1” (25mm) MIN. DIA.
4-1/4"
(108mm)
13/16"
(21mm)
HOT
1/2" NPT
(162mm)
4"
(102mm)
MOEN
3"
(76mm)
5-3/4"
(146mm)
COLD
1/2" NPT
Lift Rod

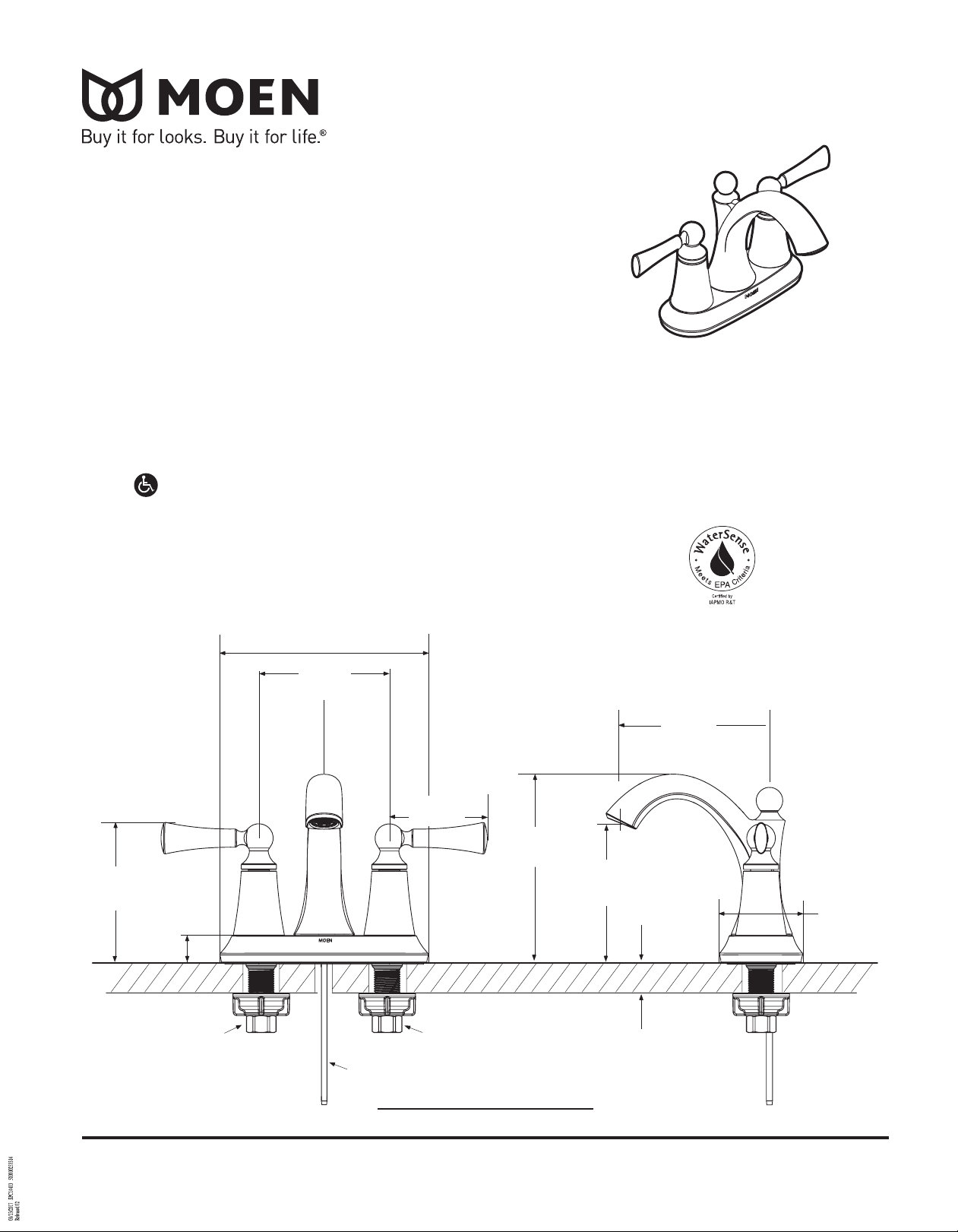

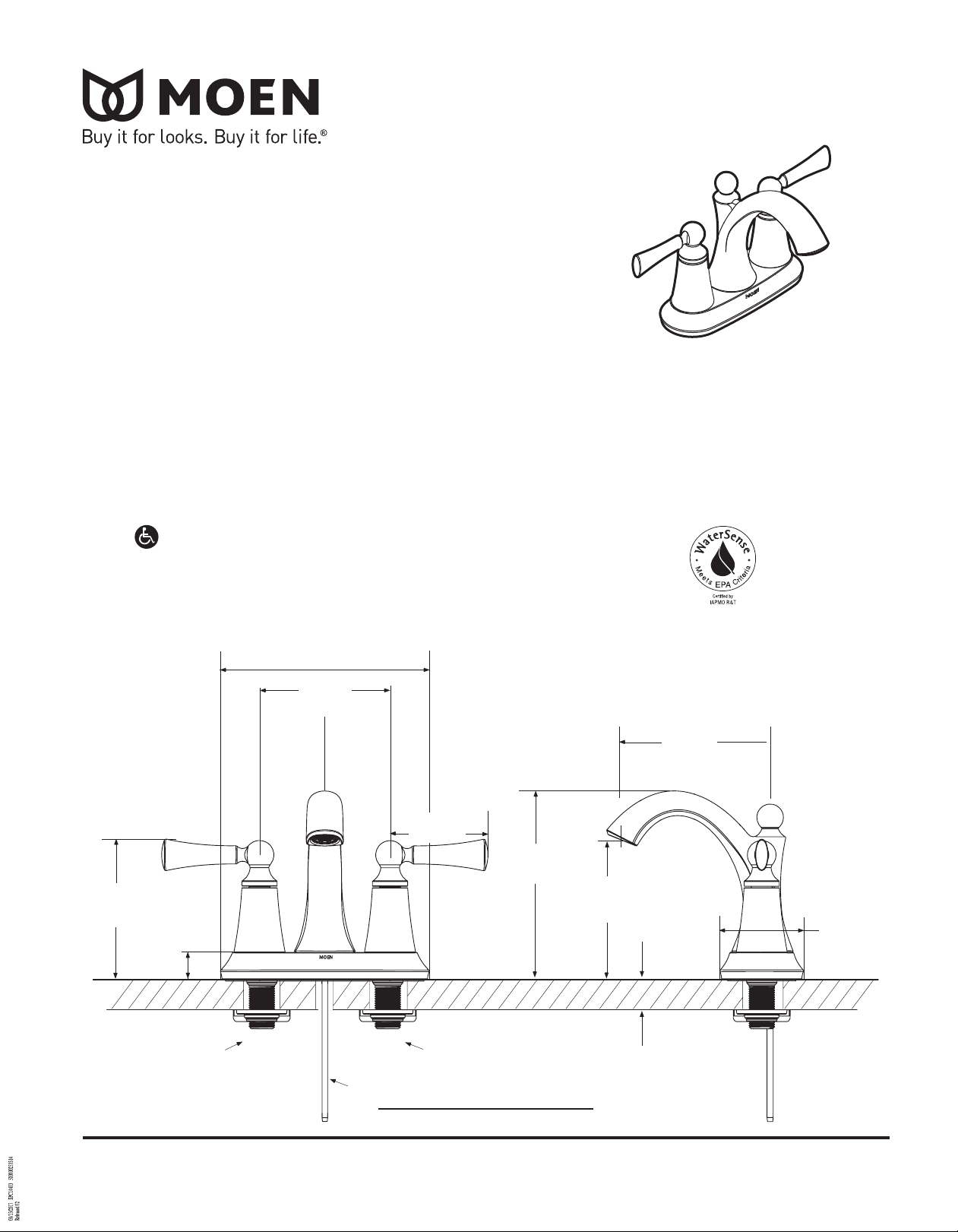

CRITICAL DIMENSIONS
(DO NOT SCALE)
4-1/4"
(108mm)
MAX. DECK
THICKNESS
1-3/16" (30mm)
MIN. DECK
THICKNESS
5/16" (8mm)
4-1/2"
(114mm)
2-1/2"
(63mm)
Rev. 3/17
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
DESCRIPTION
• Metal construction with various finishes identified by suffix
• 1/2” IPS connections
• Includes metal pop-up waste assembly
OPERATION
• Lever style handles
• Maximum handle rotation angle is 90˚ to full on for either handle
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
FLOW
• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi
CARTRIDGE
• 1224 cartridge design
• Nonmetallic, nonferrous and stainless steel material
STANDARDS
• Third party certified to WaterSense,® ASME A112.18.1, CSA B125.1, and all
applicable requirements referenced therein including NSF61/9 & 372
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA
for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and nish defects to the
original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
Spec i fi ca tions
WYNFORD™
Two Handle Centerset Faucet Trim
Models: 4505 series
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
THROUGH 3 HOLES, 1” (25mm) MIN. DIA.
4-1/4"
(108mm)
13/16"
(21mm)
HOT
1/2" NPT
6-3/8"
(162mm)
4"
(102mm)
MOEN
Lift Rod
3"
(76mm)
COLD
1/2" NPT
5-3/4"
(146mm)
4-1/4"
(108mm)
MAX. DECK
THICKNESS
3/4" (19mm)
4-1/2"
(114mm)
2-1/2"
(63mm)
Rev. 3/17
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
