M•pact System
6-25/32"
(173mm)
7"
(178mm)
7-13/32"
(188mm)
7-1/8"
(182mm)
2-27/32"
(13mm)
FAUCET DESCRIPTION
• Metal construction with chrome plated or brushed nickel finishes
• Includes showerhead, arm, flange and diverter spout
OPERATION
• Lever style handle with temperature indicator on the
escutcheon, pull-on/push-off operation
• Temperature operates through an 180° arc of handle
travel (full cold to full hot)
• Adjustable temperature limit stop to control maximum
hot water temperature
• Pressure balancing mechanism maintains selected
discharge temperature to ± 2°
FLOW
• Showerhead limited to 2.5 gpm (9.5 L/min)
• NH Suffix models contain no showerhead
CARTRIDGE
• 1225® cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125-1,
and all applicable requirements referenced therein
• ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
Specificatio ns
ALIGN™ MOENTROL®
Single-Handle Tub/Shower Trim Only
Models: T3291 series - valve trim only
T3292 series - shower trim only
T3293 series - tub/shower trim
Valves: 63100, 3500 Series
Rev. 5/16

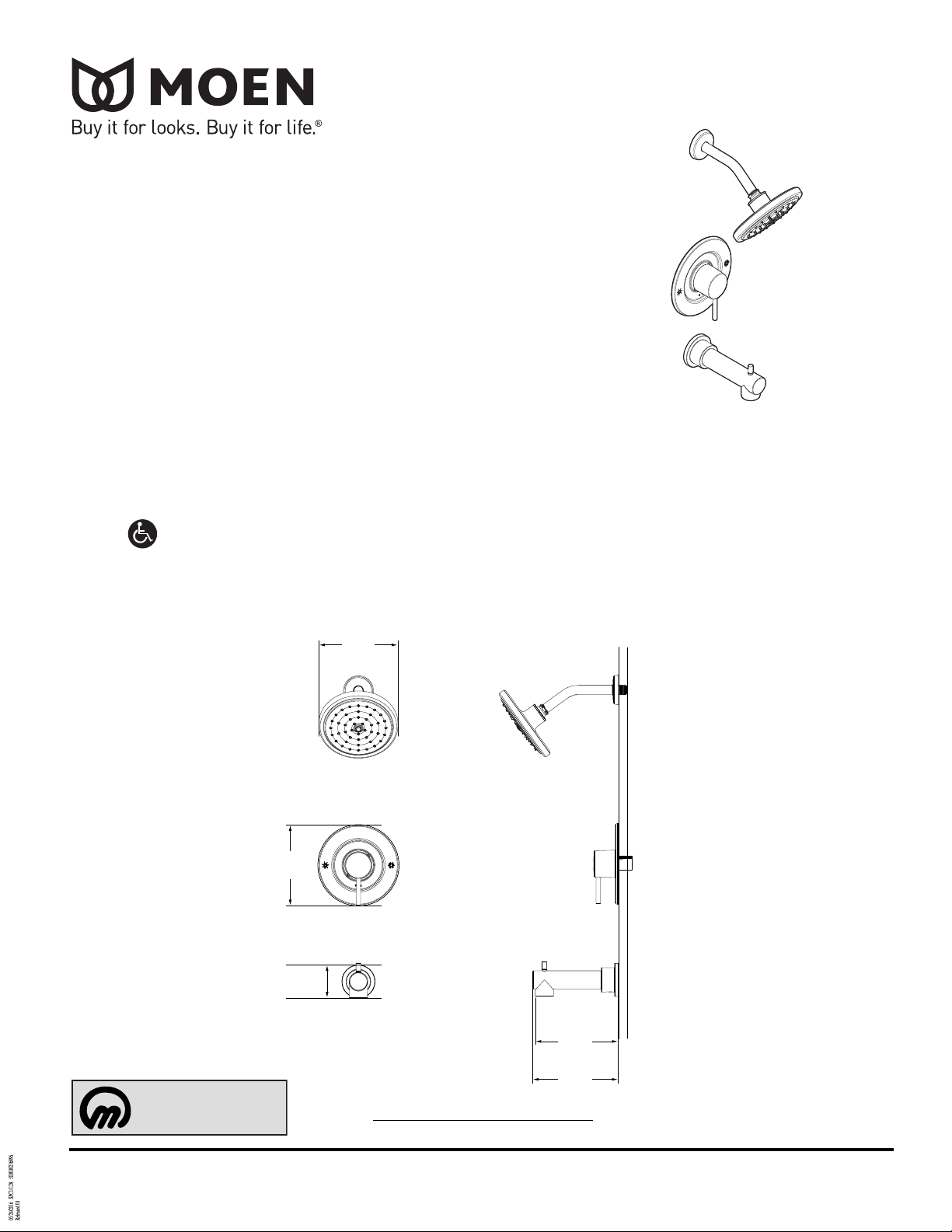

CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
