Page 1
Order by Part Number
Handle Kit
169244 Chrome
169244SRS Spot Resist Stainless
169244V Ivory
169244W Glacier
169244BL Matte Black
Dome
169245 Chrome
169245SRS Spot Resist Stainless
169245V Ivory
169245W Glacier
169245BL Matte Black
Upper Bearing Kit
170206
Cartridge,
Cartridge Nut &
Set Screw
1255

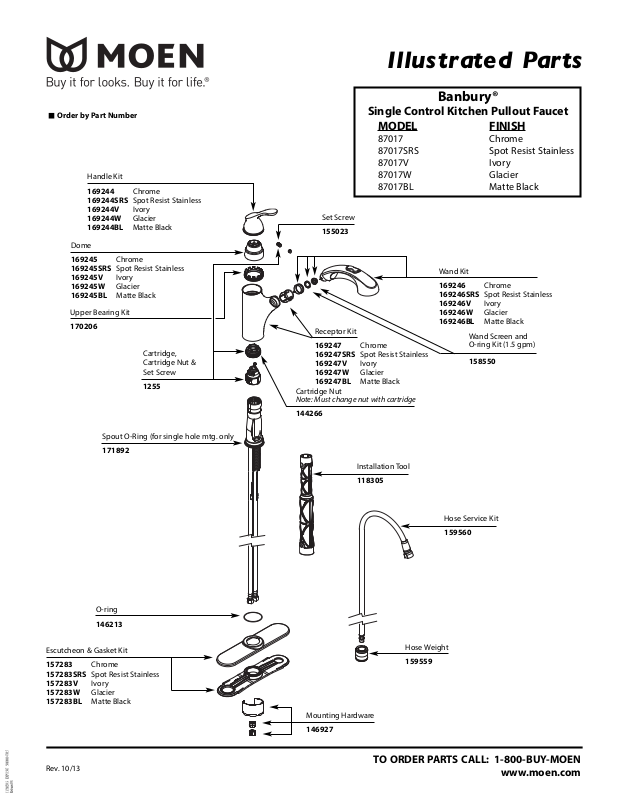

Illus tr ated Parts
Single Control Kitchen Pullout Faucet
MODEL
87017 Chrome
87017SRS Spot Resist Stainless
87017V Ivory
87017W Glacier
87017BL Matte Black
Set Screw
155023
Receptor Kit
169247 Chrome
169247SRS Spot Resist Stainless
169247V Ivory
169247W Glacier
169247BL Matte Black
Cartridge Nut
Note: Must change nut with cartridge
144266
Banbury®
FINISH
Wand Kit
169246 Chrome
169246SRS Spot Resist Stainless
169246V Ivory
169246W Glacier
169246BL Matte Black
Wand Screen and
O-ring Kit (1.5 gpm)
158550
Spout O-Ring (for single hole mtg. only
171892
O-ring
146213
Escutcheon & Gasket Kit
157283 Chrome
157283SRS Spot Resist Stainless
157283V Ivory
157283W Glacier
157283BL Matte Black
Installation Tool
118305
Hose Service Kit
159560
Hose Weight
159559
Mounting Hardware
146927
Rev. 10/13
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
