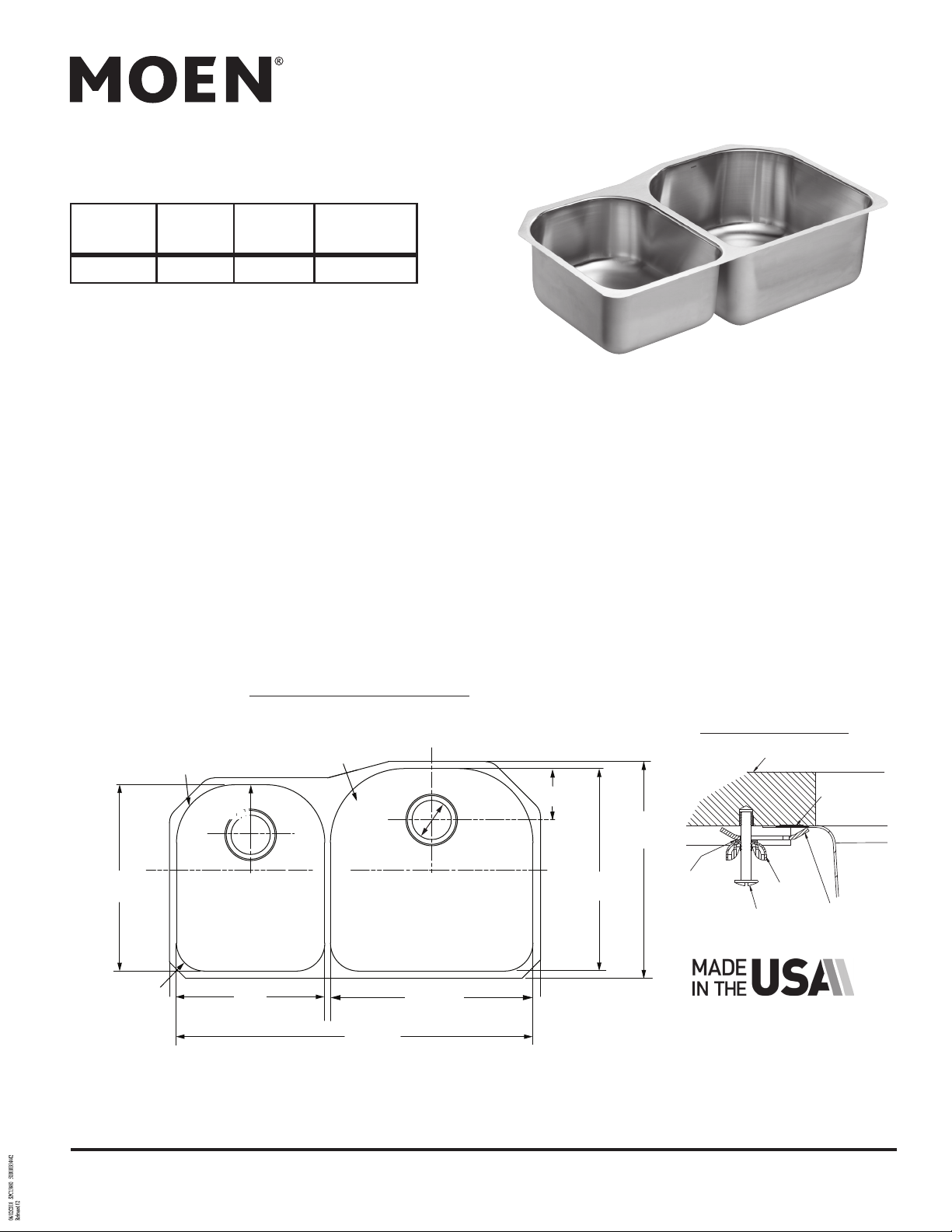

Page 1
Spec i fi ca tions
COUNTERTOP
(Not Included)
(Not In
(508mm)
Model
Number
G18246
Faucet
Holes
N/A
Depth-
Inches
L: 8", R: 10"
Drain
Placement
Rear (Center)
SINK DESCRIPTION
• 1800 Series double bowl undermount sink
• 18 gauge stainless steel, brushed finish
• Mounting brackets included, no other hardware included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete
details and limitations
SINK DIMENSIONS
• Overall: Offset Bowls 34-1/4" x 20"
• Left Bowl: 13" x 16-1/2"
• Right Bowl: 18" x 18"
• Drain Size: 3-5/8"
CUT OUT DIMENSIONS
• Cut out template included
• Template ordering number 22523
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
5" (127mm)
(2 PLACES)
16-1/2"
(419mm)
2-1/4" (57mm)
R TYP.
(4 PLACES)
R TYP.
5"
5"
(127mm)
(127mm)
13"
(330mm)
CRITICAL DIMENSIONS
(DO NOT SCALE)
6-1/2" (165mm)
R TYP.
(2 PLACES)
3-5/8" (92mm)
DIA. TYP.
18"
(457mm)
34-1/4"
(870mm)
5-5/8"
(143mm)
(457mm)
18"
20"
Installation Detail
WASHER
cluded)
#10-32 SCREW
WINGNUT
(Not Included)
Silicone Sealant
BRACKET
(Included)
Rev. 5/18
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
