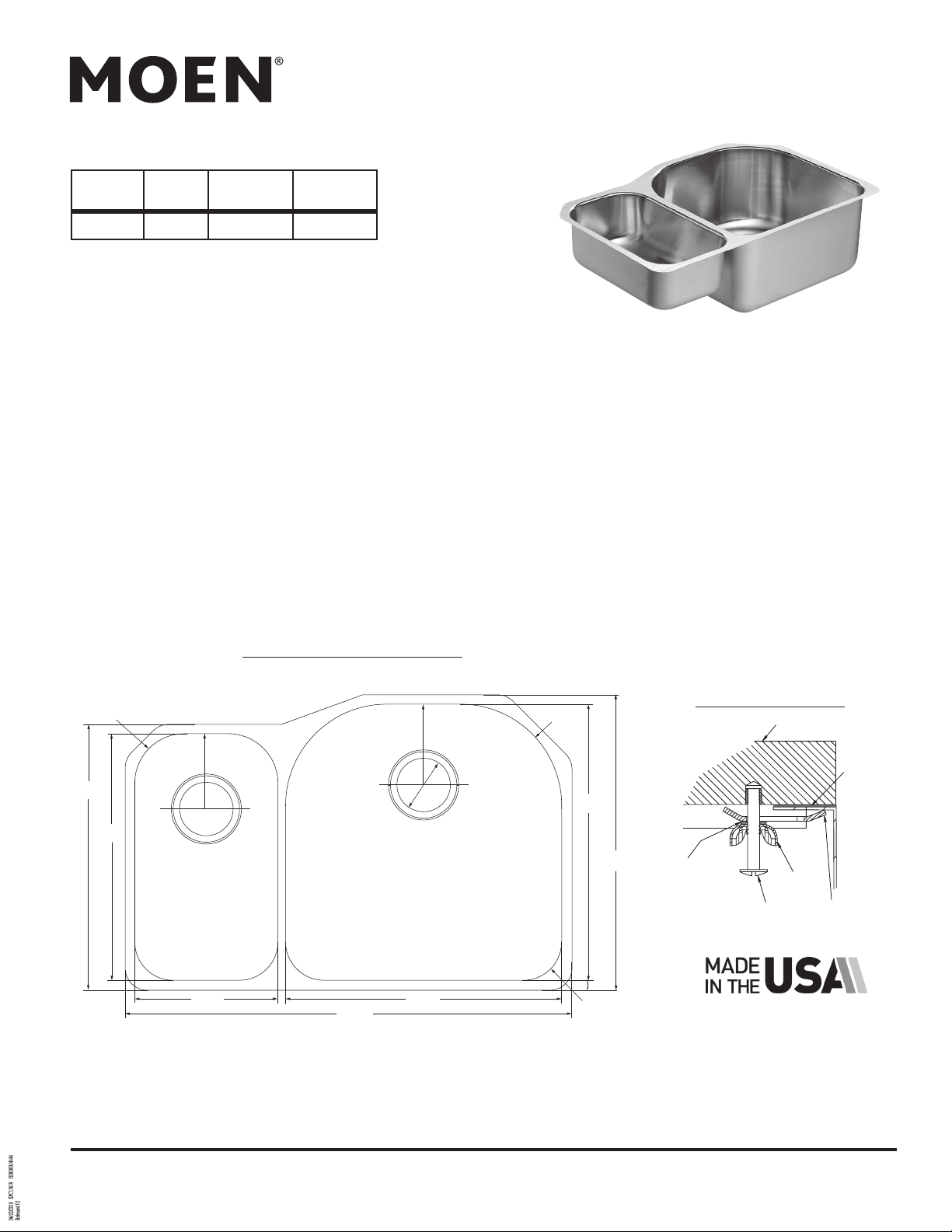

Spec i fi ca tions
Model
Number
Faucet
Holes
Depth-
Inches
Drain
Placement
G18237 N/A L:6", R:10"Rear (Center)
SINK DESCRIPTION
• 1800 Series double bowl undermount sink
• 18 gauge stainless steel, brushed finish
• Mounting brackets included, no other hardware included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete
details and limitations
SINK DIMENSIONS
• Overall: Offset Bowls 30-1/4" x 20"
• Left Bowl: 9" x 16"
• Right Bowl: 18" x 18"
• Drain Size: 3-5/8"
CUT OUT DIMENSIONS
• Cut out template included
• Template ordering number 22521
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
3" (79mm)
(4 places)
18"
(457mm)
(406mm)
R T YP.
16"
5-3/8"
(136mm)
9"
(229mm)
CRITICAL DIMENSIONS
(DO NOT SCALE)
30-1/4"
(768mm)
5-1/8"
(130mm)
3-5/8" (92mm)
(457mm)
DIA. TYP.
18"
6-1/2"
(165mm)
R T YP.
(2 places)
(457mm)
R TYP. (2 places)
18"
20"
(508mm)
1"
(25mm)
2-1/4" (57mm)
Installation Detail
WASHER
(Not Included)
#10-32 SCREW
(Not Included)
COUNTERTOP
WINGNUT
(Not Included)
BRACKET
(Include)
Silicone Sealant
Rev. 5/18
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
