Spec i fi ca tions
Model
Number
G16100 N/A 10"
Faucet
Holes
Depth
Inches
Drain
Placement
Center
SINK DESCRIPTION
• 1600 Series single bowl undermount sink
• 16 gauge stainless steel, brushed finish
• Mounting brackets included, no other hardware included
• SoundSHIELD™ sound absorbing system
WARRANTY
• Lifetime limited warranty to the original homeowner
• 10 year limited warranty when used in a Multi-family installation
• 5 year limited warranty when used in a Commercial installation
• Visit www.moen.com/customer-support/warranty for complete
details and limitations
SINK DIMENSIONS
• Overall: 32" x 20"
• Bowl: 30-1/4" x 18"
• Drain Size: 3-5/8"
CUT OUT DIMENSIONS
• Cut out template included
• Template ordering number 22539
STANDARDS
• Third party certified to meet ASME A112.19.3/CSA B45.4 and all
applicable specifications referenced therein
Rev. 5/18

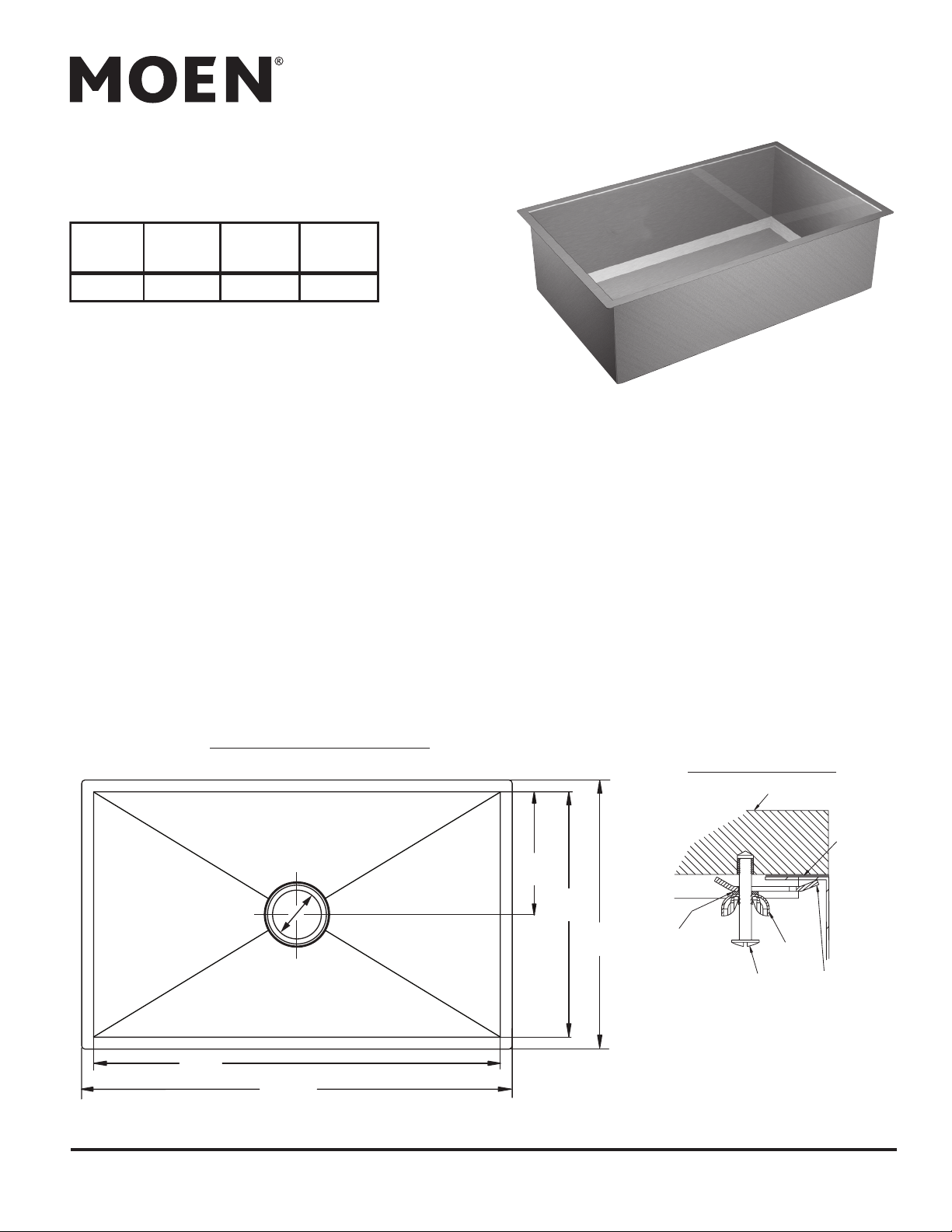

CRITICAL DIMENSIONS
(DO NOT SCALE)
3-5/8" (92MM)
DIA. TYP.
30-1/4"
(768mm)
32"
(813mm)
Installation Detail
COUNTERTOP
Silicone Sealant
9"
(228mm)
18"
(457mm)
20"
(508mm)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
WASHER
(Not Included)
WINGNUT
(Not Included)
#10-32 SCREW
(Not Included)
www.moen.com
BRACKET
(Included)
