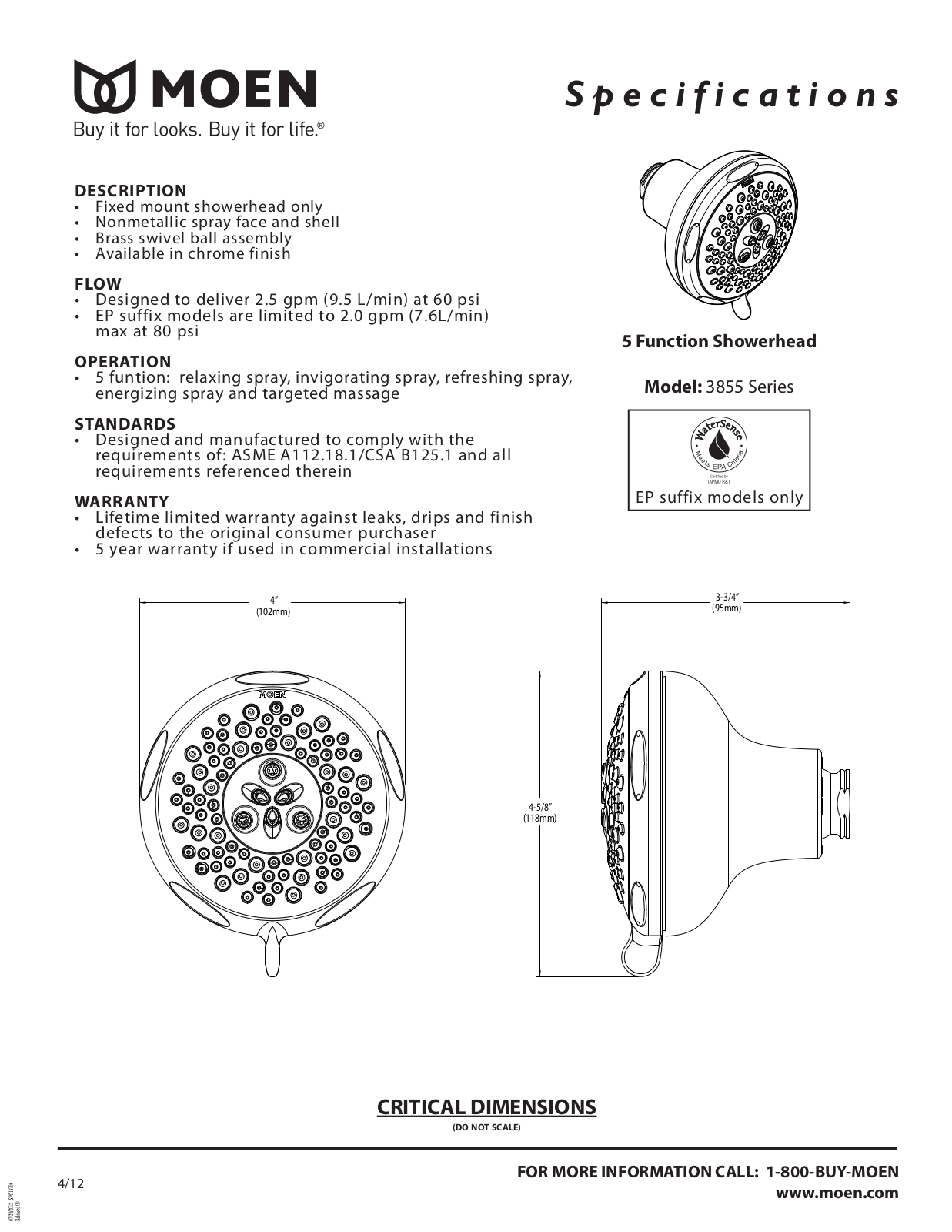

Specifications
5 Function Showerhead
Model: 3855 Series
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
4/12
DESCRIPTION
• Fixed mount showerhead only
• Nonmetallic spray face and shell
• Brass swivel ball assembly
• Available in chrome finish
FLOW
• Designed to deliver 2.5 gpm (9.5 L/min) at 60 psi
• EP suffix models are limited to 2.0 gpm (7.6L/min)
max at 80 psi
OPERATION
• 5 funtion: relaxing spray, invigorating spray, refreshing spray,
energizing spray and targeted massage
STANDARDS
• Designed and manufactured to comply with the
requirements of: ASME A112.18.1/CSA B125.1 and all
requirements referenced therein
WARRANTY
• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
EP suffix models only
4”
(102mm)
3-3/4”
(95mm)
4-5/8”
(118mm)
