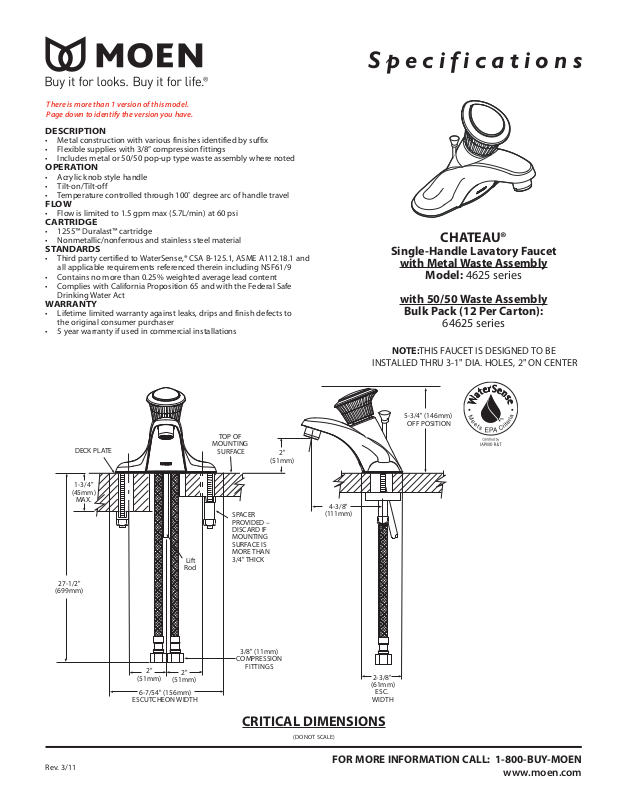

Page 1
CRITICAL DIMENSIONS
(DO NOT SCALE)
Spec i fi ca tions
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Rev. 3/11
There is more than 1 version of this model.
Page down to identify the version you have.
NOTE:THIS FAUCET IS DESIGNED TO BE
IN STALLED THRU 3-1" DIA. HOLES, 2" ON CENTER
CHATEAU®
Single-Handle Lavatory Faucet
with Metal Waste Assembly
Model: 4625 series
with 50/50 Waste Assembly
Bulk Pack (12 Per Carton):
64625 series
DESCRIPTION
• Metal construction with various finishes identified by suffix
• Flexible supplies with 3/8” compression fittings
• Includes metal or 50/50 pop-up type waste assembly where noted
OPERATION
• Acrylic knob style handle
• Tilt-on/Tilt-off
• Temperature controlled through 100˚ degree arc of handle travel
FLOW
• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi
CARTRIDGE
• 1255™ Duralast™ cartridge
• Nonmetallic/nonferrous and stainless steel material
STANDARDS
• Third party certified to WaterSense,® CSA B-125.1, ASME A112.18.1 and
all applicable requirements referenced therein including NSF61/9
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
WAR RA NTY
• Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
• 5 year warranty if used in commercial installations
DECK PLATE
1-3/4"
(45mm)
27-1/2"
(699mm)
MAX.
Lift
Rod
2"
(51mm)
6-7/54" (156mm)
ESCUTCHEON WIDTH
2"
(51mm)
TOP OF
MOUNTING
SURFACE
SPACER
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
MORE THAN
3/4" THICK
3/8" (11mm)
COMPRESSION
FITTINGS
2"
(51mm)
4-3/8"
(111mm)
2-3/8"
(61mm)
ESC.
WIDTH
5-3/4" (146mm)
OFF POSITION
Page 2
NOTE:THIS FAUCET IS DESIGNED TO BE
IN STALLED THRU 3-1" DIA. HOLES, 2" ON CENTER
CHATEAU®
Single-Handle Lavatory Faucet
with Metal Waste Assembly
Model: 4625 series
with 50/50 Waste Assembly
Bulk Pack (12 Per Carton):
64625 series
Rev. 10/10
DESCRIPTION
• Metal construction with various finishes identified by suffix
• 16" supplies
• Includes metal or 50/50 pop-up type waste assembly where noted
OPERATION
• Acrylic knob style handle
• Pull-on/Push-off
• Temperature controlled through 180˚ degree arc of handle travel
FLOW
• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi, for products made
before October 2008 flow is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel material
• Can accommodate reversed piping and back to back installations
STANDARDS
• Third party certified to WaterSense,® CSA B-125.1, ASME A112.18.1 and
all applicable requirements referenced therein including NSF61/9
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
WAR RA NTY
• Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser
• 5 year warranty if used in commercial installations
CRITICAL DIMENSIONS
(DO NOT SCALE)
Spec i fi ca tions
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DECK PLATE
1-3/4"
(45mm)
MAX.
3/8" X 16"
TUBING SUPPLIES
Lift
Rod
2"
(51mm)
6-7/54" (156mm)
ESCUTCHEON WIDTH
2"
(51mm)
TOP OF
MOUNTING
SURFACE
SPACER
PROVIDED –
DISCARD IF
MOUNTING
SURFACE IS
MORE THAN
3/4" THICK
2"
(51mm)
(111mm)
4-3/8"
2-3/8"
(61mm)
ESC.
WIDTH
5-1/4" (133mm)
OPEN POSITION
