MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
www.moen.com
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
COMMERCIAL
CRITICAL DIMENSIONS
(DO NOT SCALE)
CRITICAL DIMENSIONS
(DO NOT SCALE)
FAUCET DESCRIPTION
• Fixed mount vandal proof showerhead
• Metallic spray face and shell
• Brass swivel ball assembly
• Adjustable spray angle*
• *(Only by serviceable professional installer)
FLOW
• Designed to deliver 2.5 gpm (9.5 L/min) at 80 psi
STANDARDS
• Designed and manufactured to comply with the
requirements of: ASME A112.18.1/CSA B125.1 and
all requirements referenced therein
WARRANTY
• Warranted for 5 years against material or
manufacturing defects

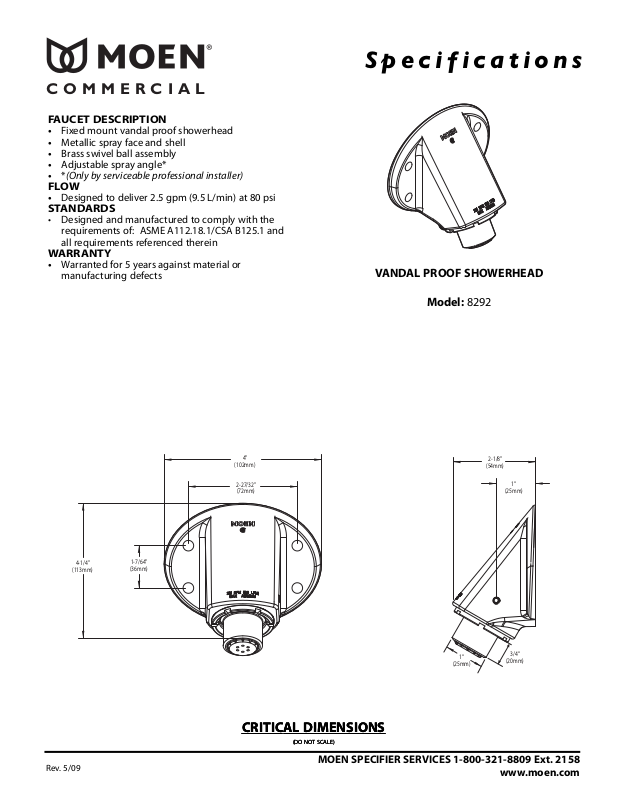

VANDAL PROOF SHOWERHEAD
Model: 8292
Rev. 5/09
4-1/4”
(113mm)
1-7/64”
(36mm)
4”
(102mm)
2-27/32”
(72mm)
1“
(25mm)
2-1/8”
(54mm)
1“
(25mm)
3/4“
(20mm)
