MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
www.moen.com
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
COMMERCIAL
CRITICAL DIMENSIONS
(DO NOT SCALE)
CRITICAL DIMENSIONS
(DO NOT SCALE)

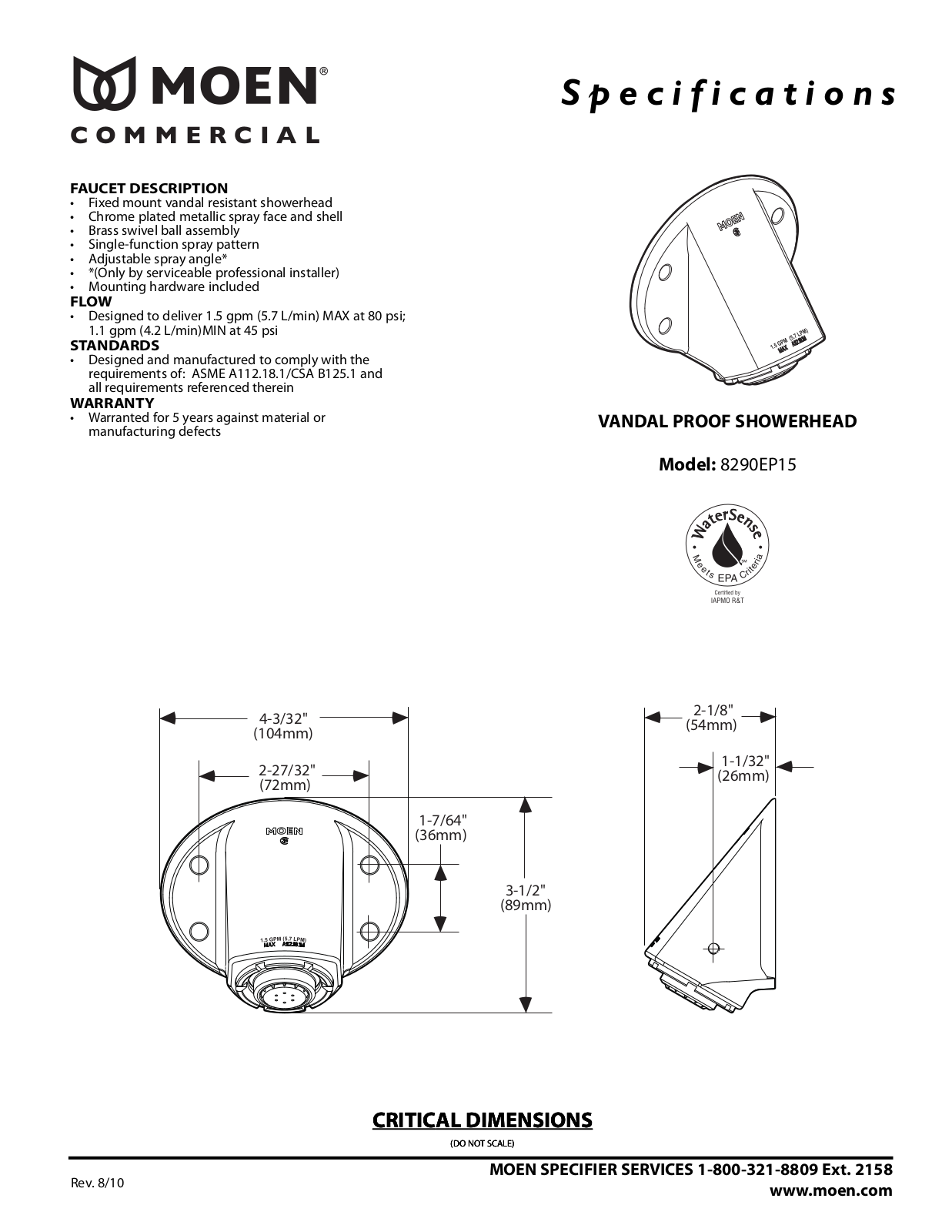

VANDAL PROOF SHOWERHEAD
Model: 8290EP15
Rev. 8/10
FAUCET DESCRIPTION
• Fixed mount vandal resistant showerhead
• Chrome plated metallic spray face and shell
• Brass swivel ball assembly
• Single-function spray pattern
• Adjustable spray angle*
• *(Only by serviceable professional installer)
• Mounting hardware included
FLOW
• Designed to deliver 1.5 gpm (5.7 L/min) MAX at 80 psi;
1.1 gpm (4.2 L/min)MIN at 45 psi
STANDARDS
• Designed and manufactured to comply with the
requirements of: ASME A112.18.1/CSA B125.1 and
all requirements referenced therein
WARRANTY
• Warranted for 5 years against material or
manufacturing defects
4-3/32"
(104mm)
2-27/32"
(72mm)
1-7/64"
(36mm)
3-1/2"
(89mm)
2-1/8"
(54mm)
1-1/32"
(26mm)
