C O M M E R C I A L
3-1/2"
(89mm)
4-3/4"
(121mm)
16-1/4"
(413mm)
13-1/2"
(343mm)
9"
(229mm)
11-1/2"
(292mm)
3-3/4"
(95mm)
2-3/4"
(70mm)
1-3/8"
(35mm)
3/4"
(83mm)
PRODUCT DESCRIPTION
• Brass construction w/chrome plated finish
• 3/4" IPS supply
• 3/4" top spud
OPERATION
• Adjustable sensor eye
• Battery powered (4) standard AA (included)
• Average battery life 250,000 cycles
• Self-diagnostic electronics
• Piston flushing mechanism
• Self cleaning filter system
• Low battery indicator light
FLOW
• Operating pressures 10 to 125 psi
• 0.125 gpf (gallons per flush)
• 24 hour sentinel flush
• Mechanical manual override button
VALVES
• 3/4" IPS angle stop (vandal resistant)
• Adjustable installation (left or right connection)
STANDARDS
• Third party certified by IAPMO to meet Watersense®
ASME A112.19.2M and all applicable requirements
referenced therein and complies with requirements
of ASSE 1037
• ADA

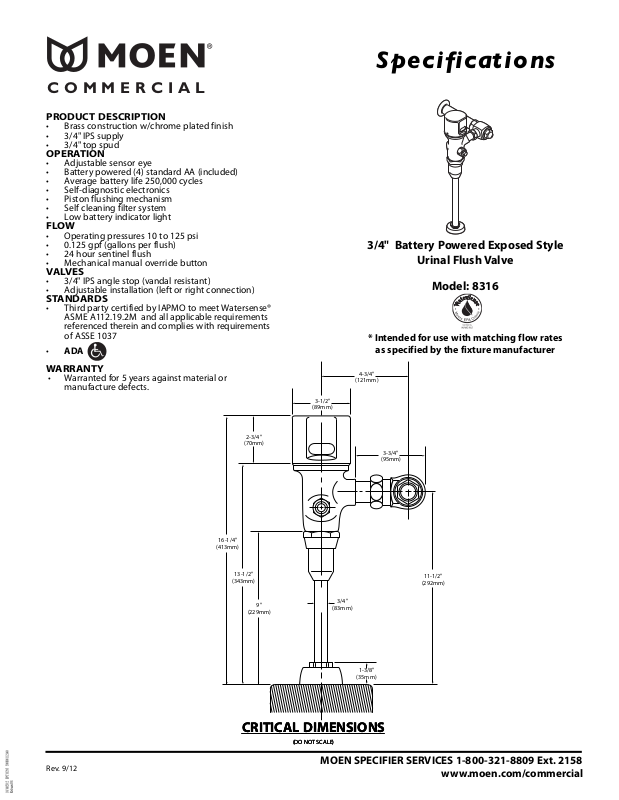

Specifications
3/4" Battery Powered Exposed Style
Urinal Flush Valve
Model: 8316
* Intended for use with matching flow rates
as specified by the fixture manufacturer
WARRANTY
• Warranted for 5 years against material or
manufacture defects.
Rev. 9/12
CRITICAL DIMENSIONS
CRITICAL DIMENSIONS
CRITICAL DIMENSIONS
(DO NOT SCALE)
(DO NOT SCALE)
(DO NOT SCALE)
MOEN SPECIFIER SER VIC ES 1-800-321-8809 Ext. 2158
www.moen.com/commercial
