MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
www.moen.com/commercial
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
COMMERCIAL
CRITICAL DIMENSIONS
(DO NOT SCALE)
CRITICAL DIMENSIONS
(DO NOT SCALE)
PRODUCT DESCRIPTION
• Brass construction w/chrome plated finish
• 3/4" IPS supply
• 3/4" top spud
• 6" cable tube
OPERATION
• Adjustable sensor eye
• AC powered transformer (12 Volt)
• Self-diagnostic electronics
• Piston flushing mechanism
• Self cleaning filter system
FLOW
• Operating pressures 10 to 125 psi
• 1.0 gpf (gallons per flush)
• 24 hour sentinel flush
• Manual override button
VALVES
• 3/4” IPS angle stop (vandal resistant)
• Adjustable installation (left or right connection)
STANDARDS
• Third party certified by IAPMO and CSA to meet
ASME A112.19.2M and all applicable requirements
referenced therein and complies with requirements of
ASSE 1037
• ADA
WARRANTY
• Warranted for 5 years against material or
manufacture defects.

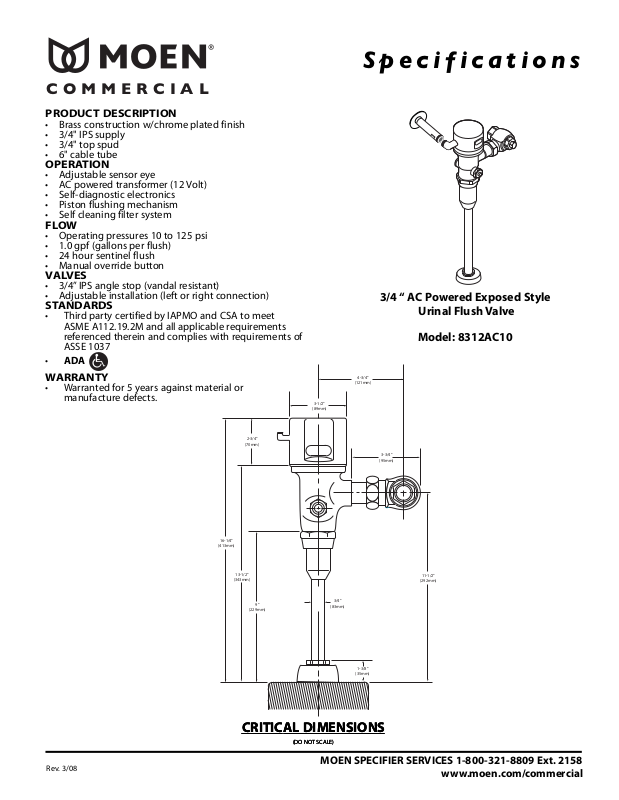

3/4 “ AC Powered Exposed Style
Urinal Flush Valve
Model: 8312AC10
Rev. 3/08
3-1/2"
(89mm)
4-3/4"
(121mm)
2-3/4"
(70mm)
16-1/4"
(413mm)
13-1/2"
(343mm)
9"
(229mm)
3/4"
(83mm)
1-3/8"
(35mm)
3-3/4"
(95mm)
11-1/2"
(292mm)
