Page 1
Vacuum
Breaker
24"
(610mm)
36"
(914mm)
3.25" SPRAY
HEAD
DIAMETER
8" SPRAY WAND
HEIGHT
59" HOSE
3.5"
(89mm)
Vacuum
Breaker
24"
(610mm)
36"
(914mm)
3.25" SPRAY
HEAD
DIAMETER
8" SPRAY WAND
HEIGHT
59" HOSE
3.5"
(89mm)
DROP ELL
FINISHED
WALL LINE
1/2-14 NPT
1/2-14
NPSM THREAD
2" Dia.
DROP ELL
FINISHED
WALL LINE
1/2-14 NPT
1/2-14
NPSM THREAD
2" Dia.
DESCRIPTION
COMMERCIAL
C O M M E R C I A L
• Chrome plated single function handheld shower
with non-positive shut off
• Contains: hand-held shower, stainless steel
slide bar grab bar, drop ell, vacuum breaker,
59" plastic hose and mounting hardware
• Easy cleaning rubber nozzles
FLOW
• 2.5 gpm (9.5 L/min) at 80 psi
STANDARDS
• Third party certified to ASME A112.18.1/CSA B-125.1,
ASSE 1014 and all applicable requirements referrenced therein
• Includes ADA compliant grab bar
WARRANTY
• Warranted for 5 years against material
or manufacturing defects

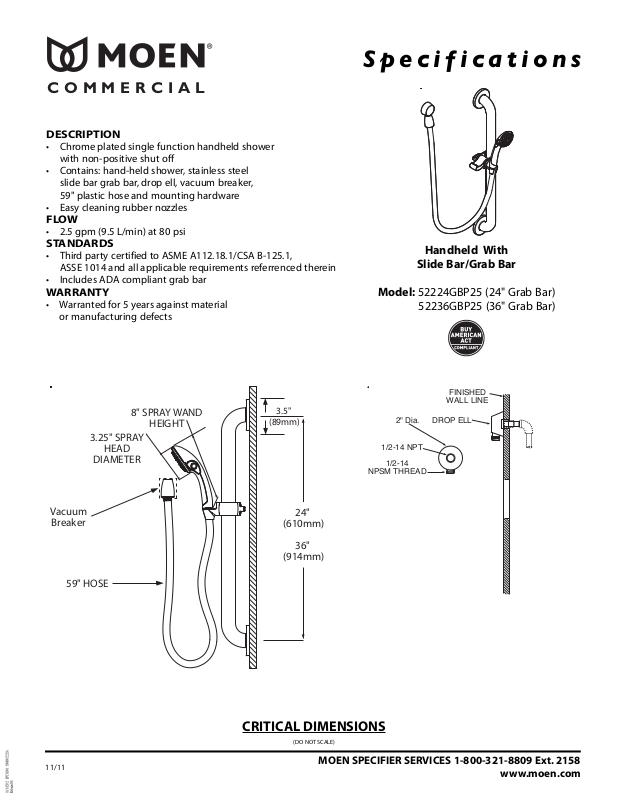

S p e c i f i c a t i o n s
Handheld With
Slide Bar/Grab Bar
Model: 52224GBP25 (24" Grab Bar)
52236GBP25 (36" Grab Bar)
11/11
CRITICAL DIMENSIONS
(DO NOT SCALE)
MOEN SPECIFIER SER VIC ES 1-800-321-8809 Ext. 2158
www.moen.com
