Moen MOE7744 Exploded Parts

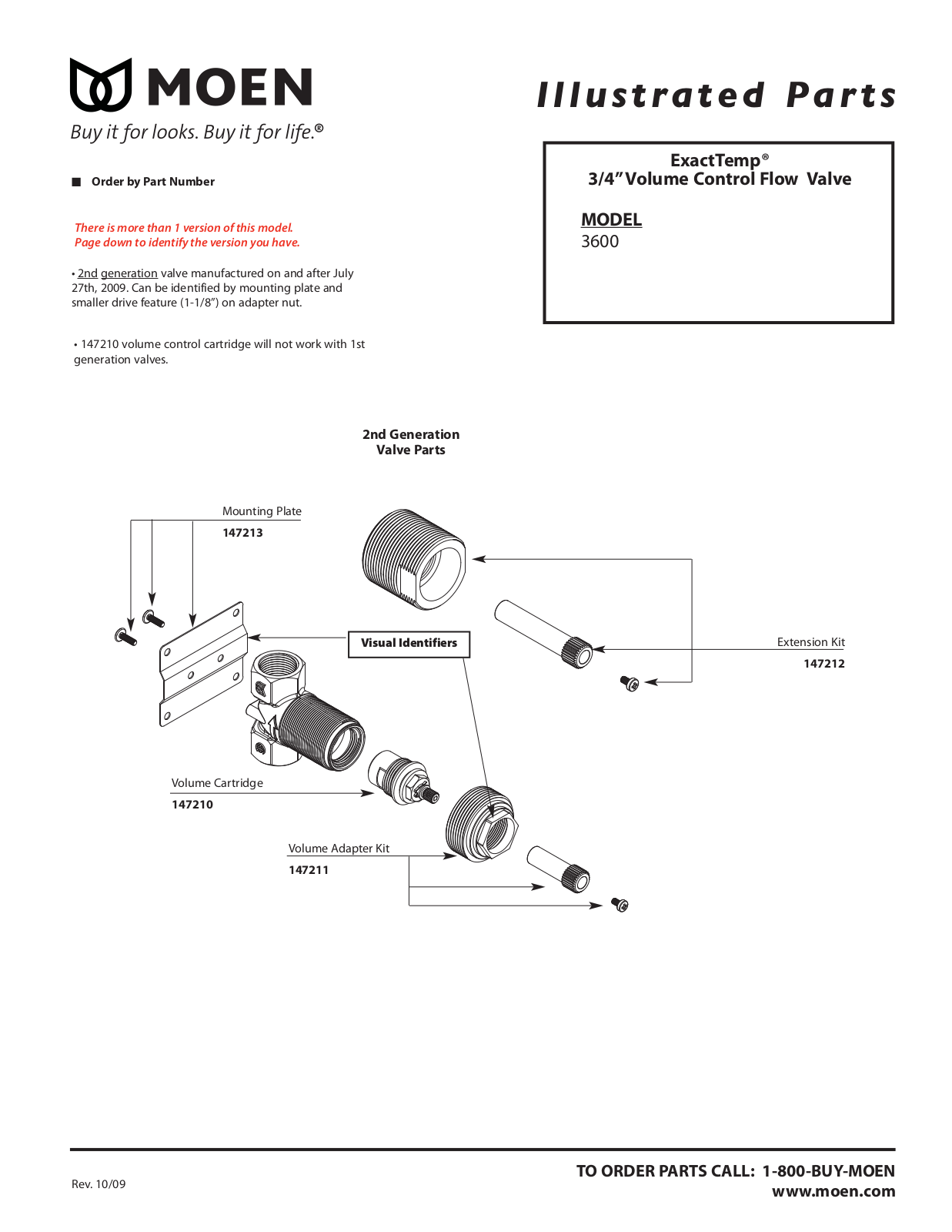

Page 1
Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Order by Part Number
ExactTemp®
3/4” Volume Control Flow Valve
MODEL
Volume Cartridge
147210
Volume Adapter Kit
147211
Extension Kit
147212
There is more than 1 version of this model. Page down to identify the version you have.
Mounting Plate
147213
• 2nd generation valve manufactured on and after July 27th, 2009. Can be identified by mounting plate and smaller drive feature (1-1/8”) on adapter nut.
• 147210 volume control cartridge will not work with 1st generation valves.
2nd Generation
Valve Parts
Visual Identifiers
Rev. 10/09

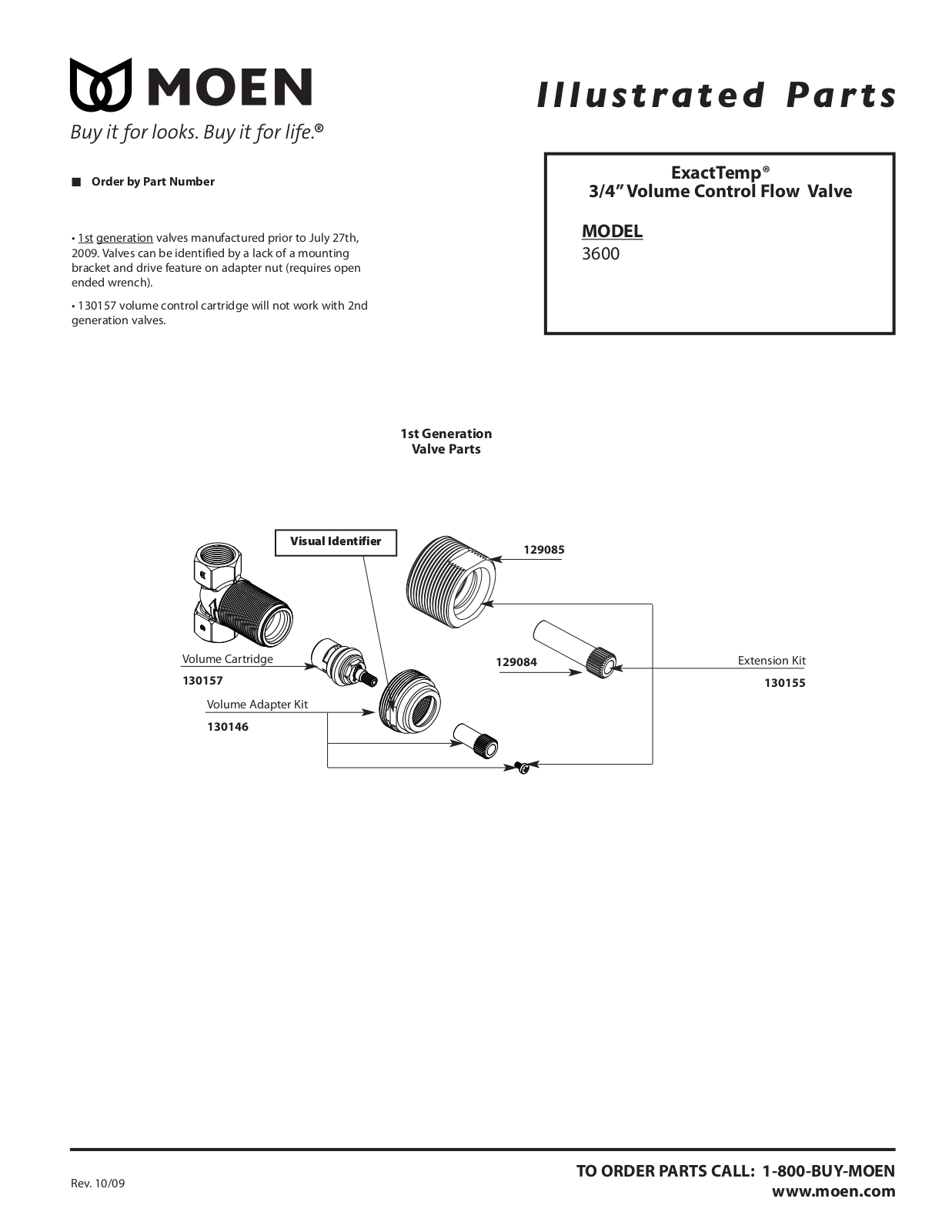

Page 2
Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Order by Part Number
ExactTemp®
3/4” Volume Control Flow Valve
MODEL
Volume Cartridge
130157
Volume Adapter Kit
130146
Extension Kit
130155
129085
129084
• 130157 volume control cartridge will not work with 2nd generation valves.
• 1st
generation valves manufactured prior to July 27th,
2009. Valves can be identified by a lack of a mounting bracket and drive feature on adapter nut (requires open ended wrench).
1st Generation
Valve Parts
Visual Identifier
Rev. 10/09
