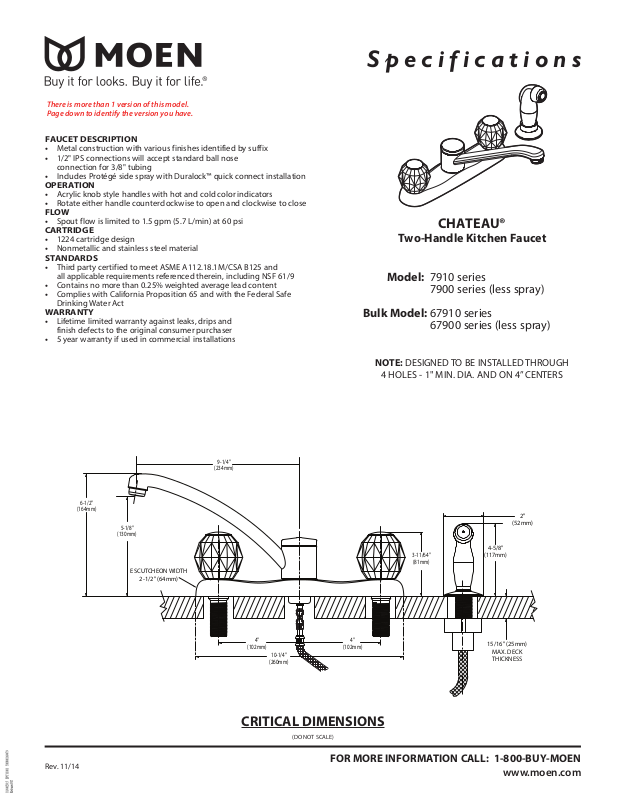

Page 1
6-1/2"
(164mm)
4"
(102mm)
4"
(102mm)
3-11/64"
(81mm)
9-1/4"
(234mm)
10-1/4"
(260mm)
5-1/8"
(130mm)
15/16" (25mm)
MAX. DECK
THICKNESS
ESCUTCHEON WIDTH
2-1/2" (64mm)
2"
(52mm)
4-5/8"
(117mm)
There is more than 1 version of this model.
Page down to identify the version you have.
FAUCET DESCRIPTION
• Metal construction with various finishes identified by suffix
• 1/2" IPS connections will accept standard ball nose
connection for 3/8" tubing
• Includes Protégé side spray with Duralock™ quick connect installation
OPERATION
• Acrylic knob style handles with hot and cold color indicators
• Rotate either handle counterclockwise to open and clockwise to close
FLOW
• Spout flow is limited to 1.5 gpm (5.7 L/min) at 60 psi
CARTRIDGE
• 1224 cartridge design
• Nonmetallic and stainless steel material
STANDARDS
• Third party certified to meet ASME A112.18.1M/CSA B125 and
all applicable requirements referenced therein, including NSF 61/9
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
CHATEAU®
Two-Handle Kitchen Faucet
Model: 7910 series
7900 series (less spray)
Bulk Model: 67910 series
67900 series (less spray)
NOTE: DESIGNED TO BE INSTALLED THROUGH
4 HOLES - 1" MIN. DIA. AND ON 4” CENTERS
Rev. 11/14
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
FAUCET DESCRIPTION
6-1/2"
(164mm)
4"
(102mm)
4"
(102mm)
3-11/64"
(81mm)
9-1/4"
(234mm)
10-1/4"
(260mm)
5-1/8"
(130mm)
15/16" (25mm)
MAX. DECK
THICKNESS
ESCUTCHEON WIDTH
2-1/2" (64mm)
2"
(52mm)
4-5/8"
(117mm)
Metal construction with various finishes identified by suffix
•
• 1/2" IPS connections will accept standard ball nose
connection for 3/8" tubing
• Includes Protégé side spray with Quick connect installation
OPERATION
• Acrylic knob style handles with hot and cold color indicators
• Rotate either handle counterclockwise to open and clockwise to close
FLOW
• Spout flow is limited to 2.0 gpm (7.6 L/min) at 60 psi
CARTRIDGE
• 1224 cartridge design
• Nonmetallic and stainless steel material
STANDARDS
• Third party certified to meet ASME A112.18.1M/CSA B125 and
all applicable requirements referenced therein, including NSF 61/9
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
CHATEAU®
Two-Handle Kitchen Faucet
Model: 7910 series
7900 series (less spray)
Bulk Model: 67910 series
67900 series (less spray)
NOTE: DESIGNED TO BE INSTALLED THROUGH
4 HOLES - 1" MIN. DIA. AND ON 4” CENTERS
The use of aerator part 116711
reduces flow to a maximum of
1.5 gpm (5.7L/min.)
Rev. 12/11
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Page 3
FAUCET DESCRIPTION
6-1/2"
(164mm)
4"
(102mm)
4"
(102mm)
3-11/64"
(81mm)
9-1/4"
(234mm)
10-1/4"
(260mm)
5-1/8"
(130mm)
15/16" (25mm)
MAX. DECK
THICKNESS
ESCUTCHE ON WIDTH
2-1/2" (64mm)
2"
(52mm)
4-5/8"
(117mm)
• Metal construction with chrome plated finish
• 1/2" IPS connections will accept standard ball nose
connection for 3/8" tubing
• Includes hose and spray
OPERATION
• Acrylic know style handles with hot and cold color indicators
• Rotate either handle counterclockwise to open
and clockwise to close
FLOW
• Aerator is limited to 2.0 gpm (7.6 L/min) at 60 psi
CARTRIDGE
• 1224 cartridge design
• Nonmetallic and stainless steel material
STANDARDS
• Third party certified to meet CSA B-125, ASME A112.18.1M
and all applicable requirements referenced therein.
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with
the Federal Safe Water Drinking Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
CHATEAU
Two-Handle Kitchen Faucet
with Side Spray
Model: 7910
Bulk Model: 67910
(Bulk packed 12 per carton)
NOTE: Designed to be installed through
4 holes - 1" min. dia. and on 4” centers
The use of aerator part 116711
reduces flow to a maximum of
1.5 gpm (5.7L/min.)
®
Rev. 12/11
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Page 4
FAUCET DESCRIPTION
ESCUTCHEON
10-1/2" (267mm) X 2-1/8" (54mm)
MOUNTING
NUT
4"
(102mm)
DECK GASKET
15/16" (25mm) MAX.
DECK THICKNESS
8-3/4"
(222mm)
5"
(127mm)
SPOUT
3-1/8"
(79mm)
4"
(102mm)
4"
(102mm)
• Chrome plated metal construction
1/2" IPS connections will accept standard
•
ball nose connection for 3/8" tubing
• Includes hose and spray
OPERATION
• Acrylic knob style handles
• Operate the faucet by rotating either handle in a
counterclockwise manner to open, and clockwise to close.
FLOW
• Aerator is limited to 2.0 gpm (7.6 L/min) at 60 psi
CARTRIDGE
• 1224 cartridge design
• Nonmetallic and stainless steel material
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M and all applicable requirements
referenced therein.
• Certified to ANSI/NSF 61/9
• Complies with California Proposition 65 and with the
Federal Safe Water Drinking Act
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
CHATEAU
Two-Handle Knob Style Kitchen Faucet
Model: 7910
Bulk Model: 67910
(Bulk packed 12 per carton)
NOTE: This faucet is designed to be
installed through 4 holes 1" Min. Dia.
The use of aerator part 116711
reduces flow to a maximum of
1.5 gpm (5.7L/min.)
®
Rev. 12/11
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
