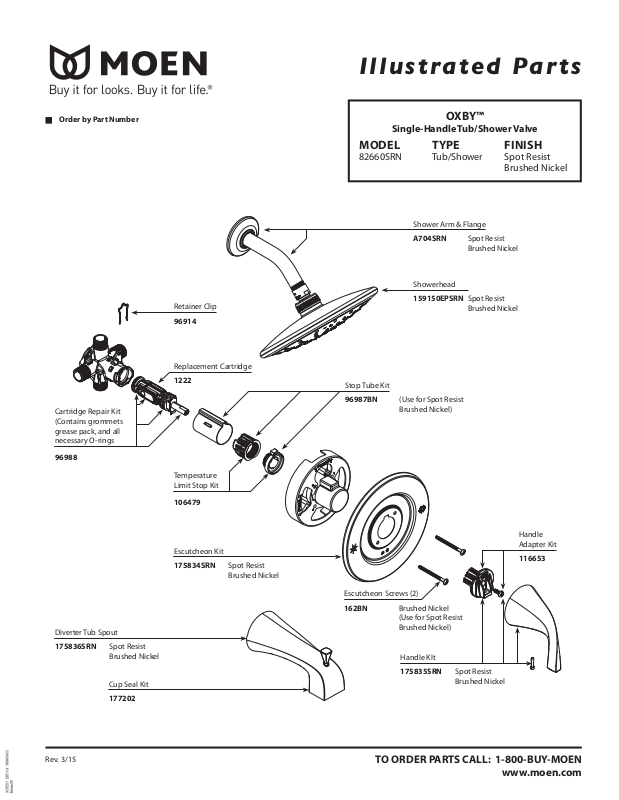

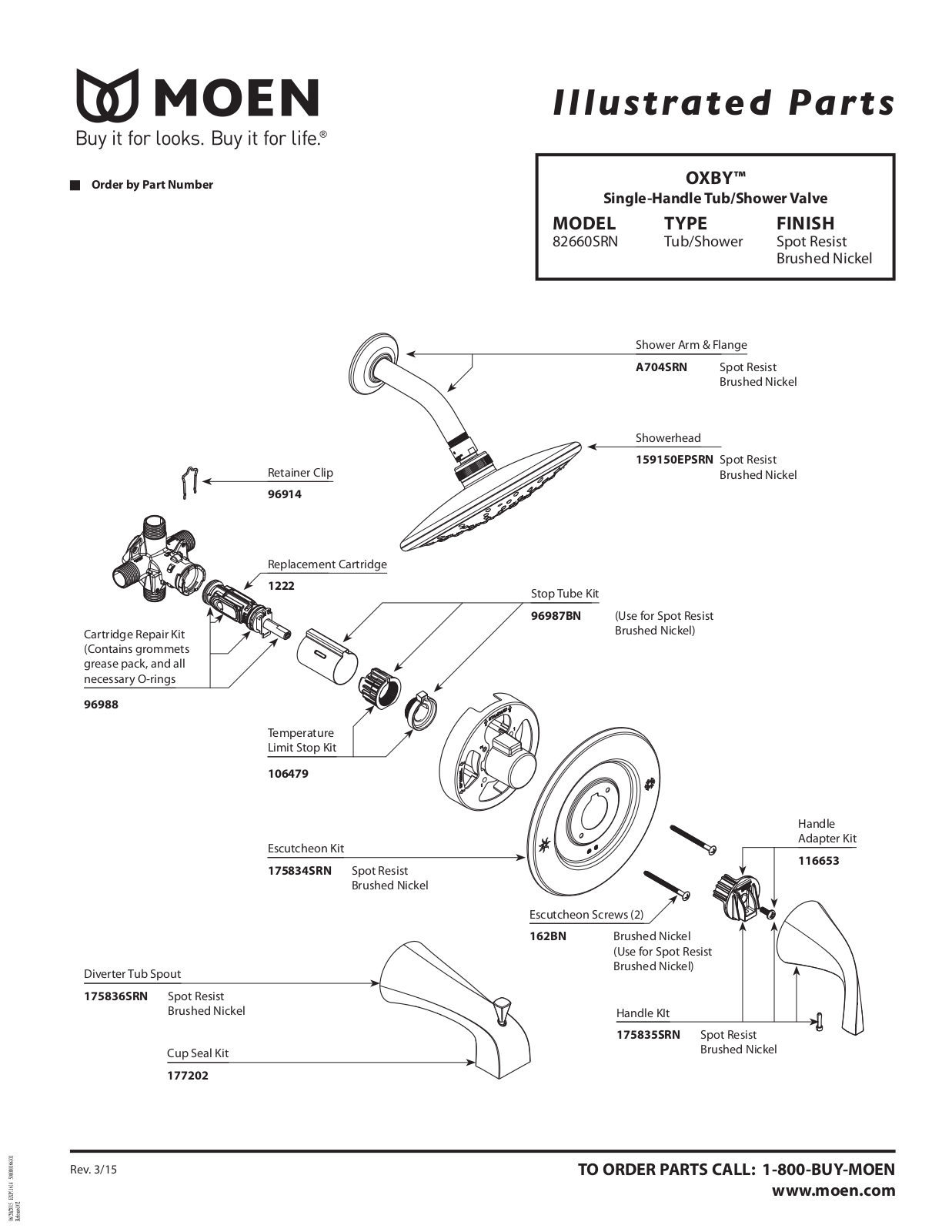

Illustrated Parts
Order by Part Number
Cartridge Repair Kit
(Contains grommets
grease pack, and all
necessary O-rings
96988
Retainer Clip
96914
Replacement Cartridge
1222
OXBY™
Single-Handle Tub/Shower Valve
MODEL TYPE FINISH
82660SRN Tub/Shower Spot Resist
Brushed Nickel
Shower Arm & Flange
A704SRN Spot Resist
Brushed Nickel
Showerhead
159150EPSRN Spot Resist
Brushed Nickel
Stop Tube Kit
96987BN (Use for Spot Resist
Brushed Nickel)
Diverter Tub Spout
175836SRN Spot Resist
Brushed Nickel
Cup Seal Kit
177202
Rev. 3/15
Temperature
Limit Stop Kit
106479
Escutcheon Kit
175834SRN Spot Resist
Brushed Nickel
Handle
Adapter Kit
116653
Escutcheon Screws (2)
162BN Brushed Nickel
(Use for Spot Resist
Brushed Nickel)
Handle KIt
175835SRN Spot Resist
Brushed Nickel
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
