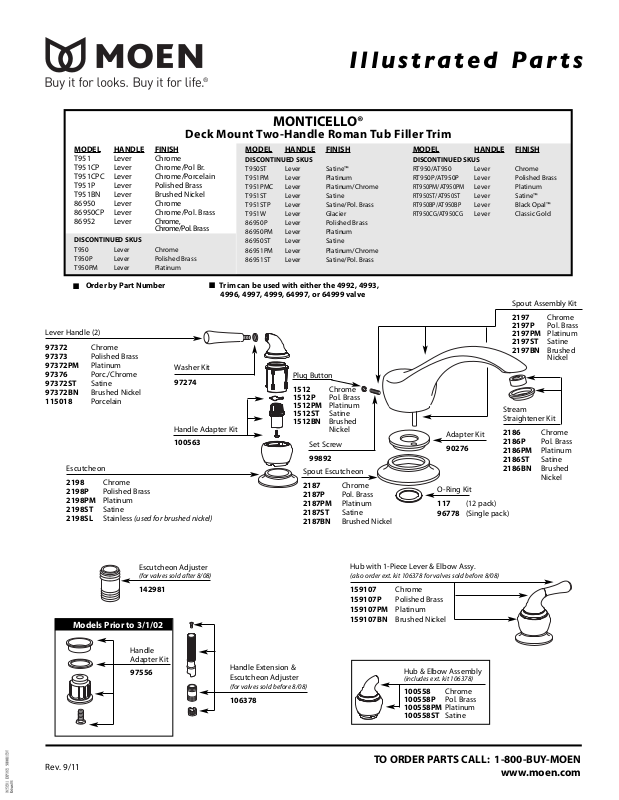

Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
■
Order by Part Number
Rev. 9/11
Escutcheon
2198 Chrome
2198P Polished Brass
2198PM Platinum
2198ST Satine
2198SL Stainless (used for brushed nickel)
Spout Escutcheon
2187 Chrome
2187P Pol. Brass
2187PM Platinum
2187ST Satine
2187BN Brushed Nickel
Set Screw
99892
Plug Button
1512 Chrome
1512P Pol. Brass
1512PM Platinum
1512ST Satine
1512BN Brushed
Nickel
Adapter Kit
90276
Washer Kit
97274
Lever Handle (2)
97372 Chrome
97373 Polished Brass
97372PM Platinum
97376 Porc./Chrome
97372ST Satine
97372BN Brushed Nickel
115018 Porcelain
Handle Adapter Kit
100563
Spout Assembly Kit
2197 Chrome
2197P Pol. Brass
2197PM Platinum
2197ST Satine
2197BN Brushed
Nickel
Stream
Straightener Kit
2186 Chrome
2186P Pol. Brass
2186PM Platinum
2186ST Satine
2186BN Brushed
Nickel
■ Trim can be used with either the 4992, 4993,
4996, 4997, 4999, 64997, or 64999 valve
Models Prior to 3/1/02
Handle
Adapter Kit
97556
O-Ring Kit
117 (12 pack)
96778 (Single pack)
MONTICELLO®
Deck Mount Two-Handle Roman Tub Filler Trim
MODEL HANDLE FINISH
T951 Lever Chrome
T951CP Lever Chrome/Pol Br.
T951CPC Lever Chrome/Porcelain
T951P Lever Polished Brass
T951BN Lever Brushed Nickel
86950 Lever Chrome
86950CP Lever Chrome/Pol. Brass
86952 Lever Chrome,
Chrome/Pol. Brass
DISCONTINUED SKUS
T950 Lever Chrome
T950P Lever Polished Brass
T950PM Lever Platinum
MODEL HANDLE FINISH
DISCONTINUED SKUS
T950ST Lever Satine™
T951PM Lever Platinum
T951PMC Lever Platinum/Chrome
T951ST Lever Satine
T951STP Lever Satine/Pol. Brass
T951W Lever Glacier
86950P Lever Polished Brass
86950PM Lever Platinum
86950ST Lever Satine
86951PM Lever Platinum/Chrome
86951ST Lever Satine/Pol. Brass
MODEL HANDLE FINISH
DISCONTINUED SKUS
RT950/AT950 Lever Chrome
RT950P/AT950P Lever Polished Brass
RT950PM/AT950PM
Lever Platinum
RT950ST/AT950ST
Lever Satine™
RT950BP/AT950BP
Lever Black Opal™
RT950CG/AT950CG
Lever Classic Gold
Escutcheon Adjuster
(for valves sold after 8/08)
142981
Handle Extension &
Escutcheon Adjuster
(for valves sold before 8/08)
106378
Hub with 1-Piece Lever & Elbow Assy.
(also order ext. kit 106378 for valves sold before 8/08)
159107 Chrome
159107P Polished Brass
159107PM Platinum
159107BN Brushed Nickel
Hub & Elbow Assembly
(includes ext. kit 106378)
100558 Chrome
100558P Pol. Brass
100558PM Platinum
100558ST Satine
