Page 1
Order by Part Number
n
Handle Cover
93379
etainer Pivot Nut
R
92309
12" Spout Assembly Kit
12828
There is more than 1 version of this model.
Page down to identify the version you have.
Illustrated Parts

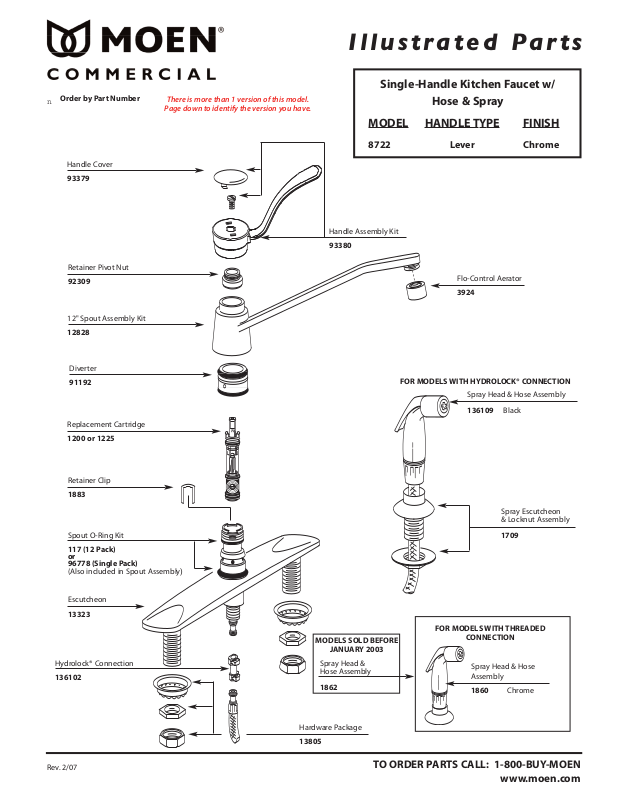

Single-Handle Kitchen Faucet w/
Hose & Spray
MODEL
8722 Lever Chrome
Handle Assembly Kit
93380
HANDLE TYPE FINISH
Flo-Control Aerator
3924
Diverter
91192
Replacement Cartridge
1200 or 1225
Retainer Clip
1883
Spout O-Ring Kit
117 (12 Pack)
or
96778 (Single Pack)
(Also included in Spout Assembly)
cheon
Escut
13323
Hydrolock® Connection
136102
MODELS SOLD BEFORE
Spr
Hose A
1862
AR
JANU
ay Head &
ssembly
Y 2003
FOR MODELS WITH HYDROLOCK® CONNECTION
Spray Head & Hose Assembly
136109 Black
Spray Escutcheon
& Locknut Assembly
1709
FOR MODELS WITH THREADED
CONNECTION
y Head & Hose
a
Spr
Assembly
1860 Chrome
Rev. 2/07
dware Package
Har
13805
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
Order by Part Name and
nn
Part Number (Bold Face Type)
Handle Cover
93379
Retainer Pivot Nut
92309
Illustrated Parts
Single-Handle Kitchen Faucet w/Hose & Spray
MODEL HANDLE TYPE FINISH
8722 Lever Chrome
Handle Assembly Kit
93380
Flo-Control Aerator
3924
12" Spout Assembly Kit
12828
Diverter
91192
Replacement Cartridge
1200 or 1225
Retainer Clip
1883
Spout O-Ring Kit
117
(Also par
Assembly Kit)
Escutcheon
13323
t of Spout
Spray Head & Hose
Assembly
1862
Spray Escutcheon
& Locknut Assembly
1709
Rev. 12/99
Hardware Package
13805
T
O ORDER P
ART
ALL: 1-800-BUY
S C
-MOEN
