Page 1

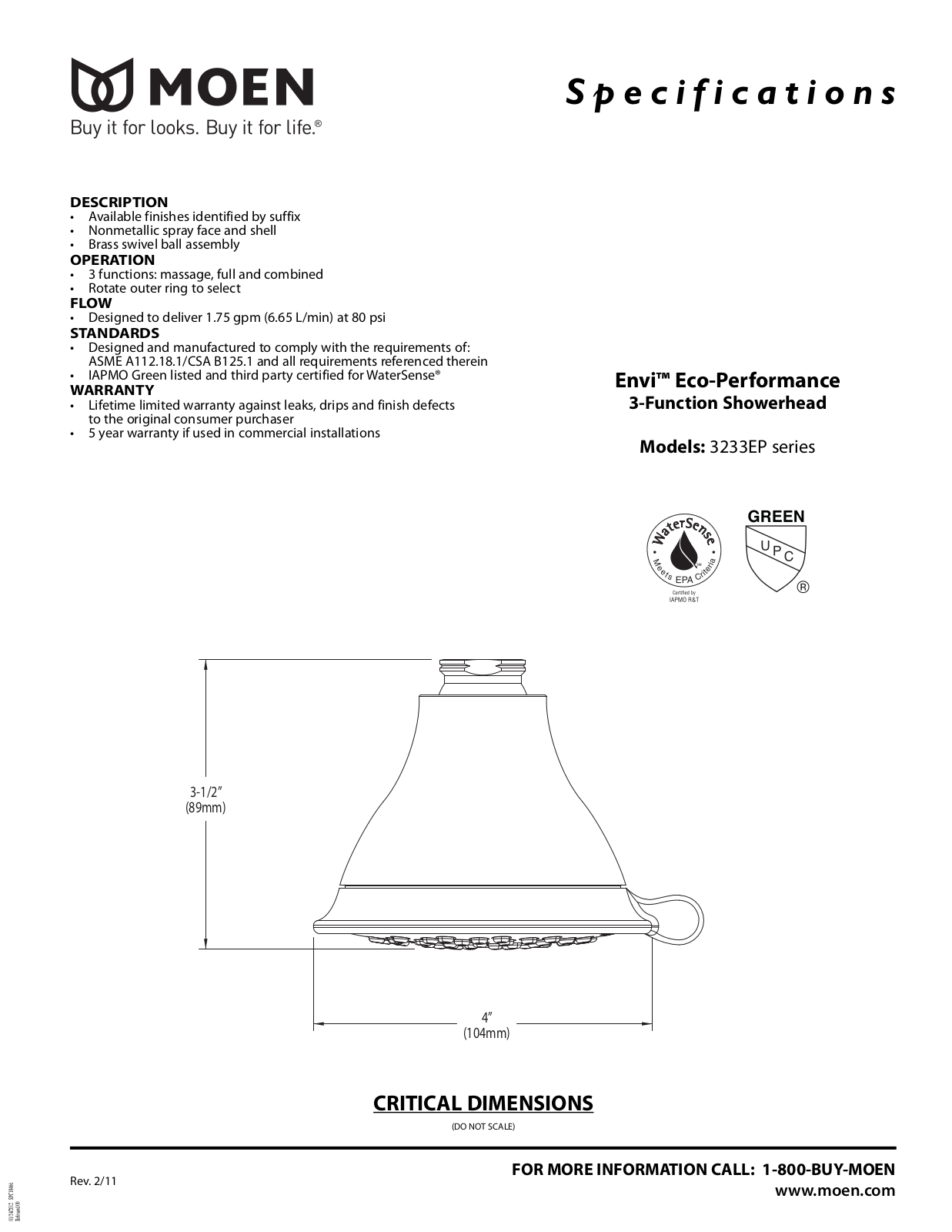

CRITICAL DIMENSIONS
(DO NOT SCALE)
Spec i fi ca tions
Rev. 2/11
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
• Available finishes identified by suffix
• Nonmetallic spray face and shell
• Brass swivel ball assembly
OPERATION
• 3 functions: massage, full and combined
• Rotate outer ring to select
FLOW
• Designed to deliver 1.75 gpm (6.65 L/min) at 80 psi
STANDARDS
• Designed and manufactured to comply with the requirements of:
ASME A112.18.1/CSA B125.1 and all requirements referenced therein
• IAPMO Green listed and third party certified for WaterSense®
WAR RANT Y
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
Envi™ Eco-Performance
3-Function Showerhead
Models: 3233EP series
3-1/2”
(89mm)
4”
(104mm)
