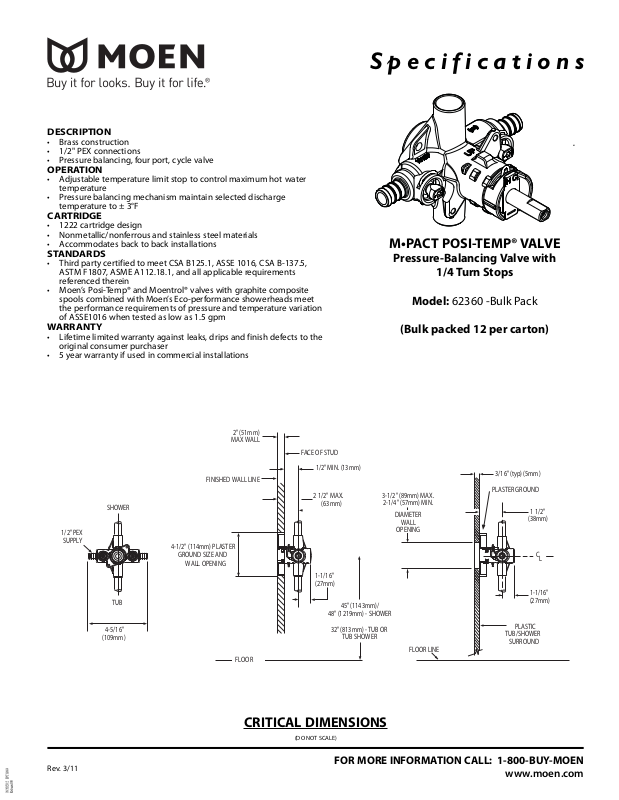

M•PACT POSI-TEMP® VALVE
Pressure-Balancing Valve with
1/4 Turn Stops
Model: 62360 -Bulk Pack
(Bulk packed 12 per carton)
DESCRIPTION
• Brass construction
• 1/2" PEX connections
• Pressure balancing, four port, cycle valve
OPERATION
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintain selected discharge
temperature to ± 3°F
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet CSA B125.1, ASSE 1016, CSA B-137.5,
ASTM F1807, ASME A112.18.1, and all applicable requirements
referenced therein
• Moen’s Posi-Temp® and Moentrol® valves with graphite composite
spools combined with Moen’s Eco-performance showerheads meet
the performance requirements of pressure and temperature variation
of ASSE1016 when tested as low as 1.5 gpm
WAR RANT Y
• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations
CRITICAL DIMENSIONS
(DO NOT SCALE)
Spec i fi ca tions
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Rev. 3/11
1/2" PEX
SUPPLY
SHOWER
TUB
4-5/16"
(109mm)
2" (51mm)
MAX WALL
FINISHED WALL LINE
4-1/2" (114mm) PLASTER
GROUND SIZE AND
WALL OPENING
FLOOR
FACE OF STUD
1/2" MIN. (13mm)
2 1/2" MAX.
(63mm)
1-1/16"
(27mm)
45" (1143mm)/
48" (1219mm) - SHOWER
32" (813mm) - TUB OR
TUB SHOWER
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
FLOOR LINE
3/16" (typ) (5mm)
PLASTER GROUND
1 1/2"
(38mm)
C
L
1-1/16"
(27mm)
PLASTIC
TUB/SHOWER
SURROUND
