Page 1

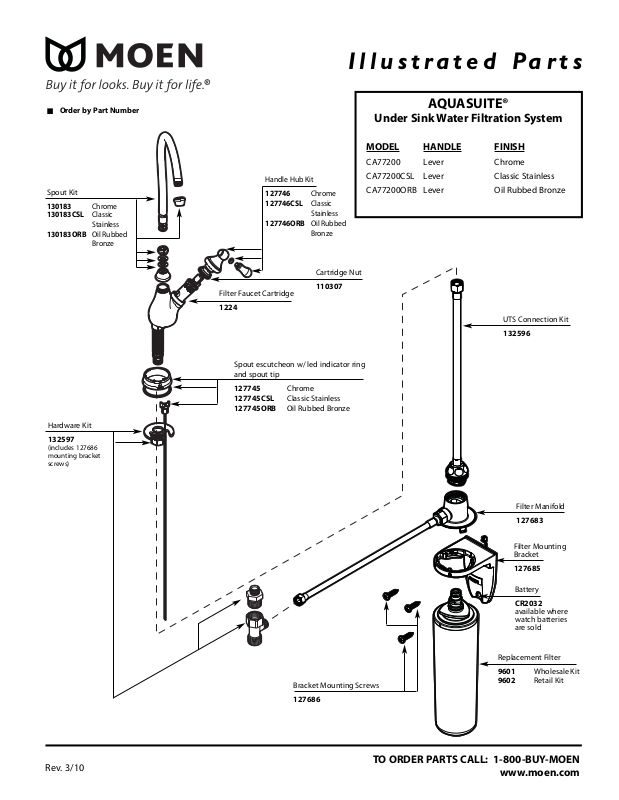

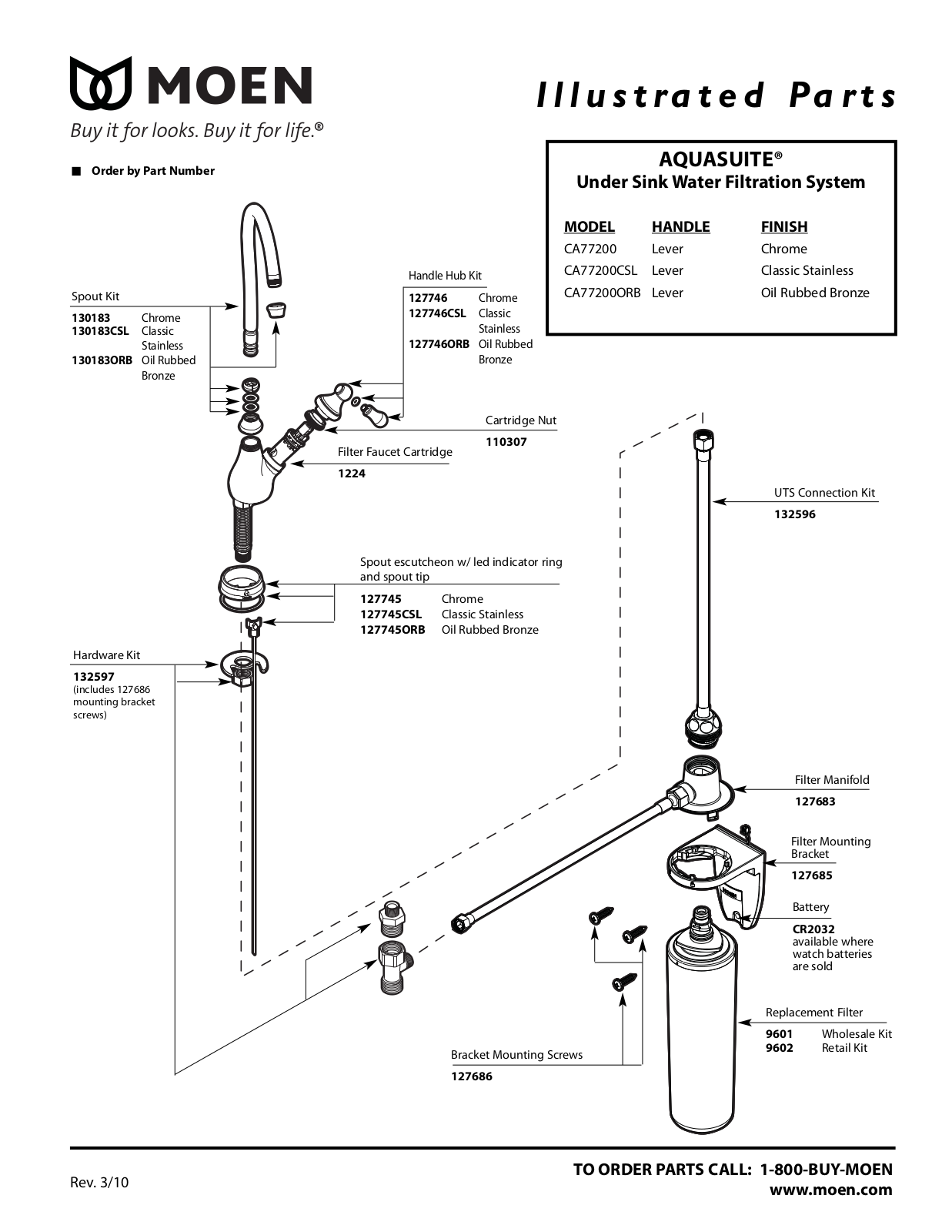

Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Rev. 3/10
Bracket Mounting Screws
127686
Filter Faucet Cartridge
1224
Filter Manifold
127683
Filter Mounting
Bracket
127685
Replacement Filter
9601 Wholesale Kit
9602 Retail Kit
Spout Kit
130183 Chrome
130183CSL Classic
Stainless
130183ORB Oil Rubbed
Bronze
Cartridge Nut
110307
Handle Hub Kit
127746 Chrome
127746CSL Classic
Stainless
127746ORB Oil Rubbed
Bronze
Order by Part Number
Spout escutcheon w/ led indicator ring
and spout tip
127745 Chrome
127745CSL Classic Stainless
127745ORB Oil Rubbed Bronze
AQUASUITE®
Under Sink Water Filtration System
MODEL HANDLE FINISH
CA77200 Lever Chrome
CA77200CSL Lever Classic Stainless
CA77200ORB Lever Oil Rubbed Bronze
Hardware Kit
132597
(includes 127686
mounting bracket
screws)
UTS Connection Kit
132596
Battery
CR2032
available where
watch batteries
are sold
