Moen MOE6033 Exploded Parts

Page 1

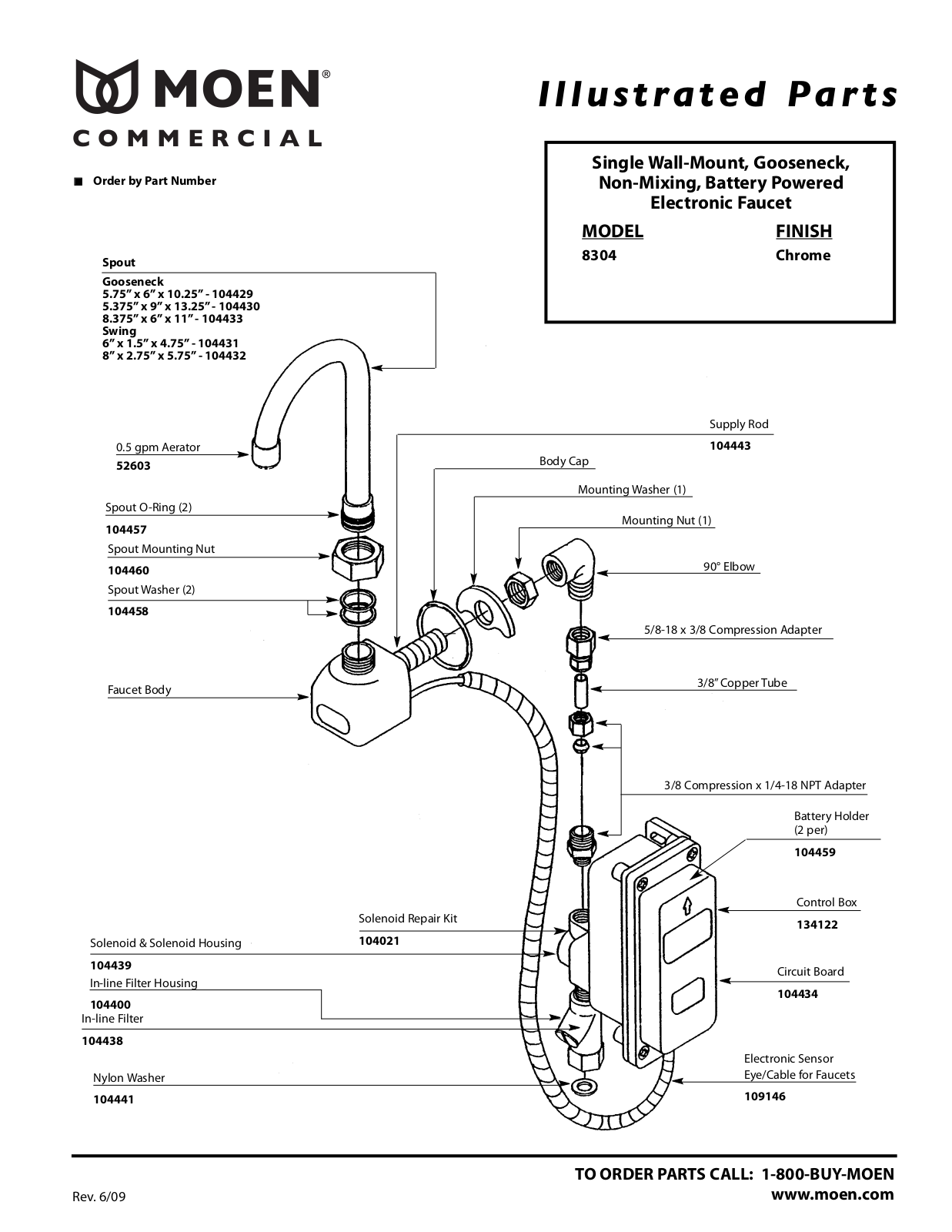

Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
COMMERCIAL
Order by Part Number
Single Wall-Mount, Gooseneck,
Non-Mixing, Battery Powered
MODEL
FINISH
8304 Chrome
Faucet Body
Rev. 6/09
Spout Washer (2)
104458
Spout Mounting Nut
104460
5/8-18 x 3/8 Compression Adapter
3/8 Compression x 1/4-18 NPT Adapter
Control Box
134122
Battery Holder (2 per)
104459
Circuit Board
104434
Electronic Sensor Eye/Cable for Faucets
109146
90° Elbow
Mounting Nut (1)
Mounting Washer (1)
Body Cap
Spout O-Ring (2)
104457
Supply Rod
104443
3/8” Copper Tube
Spout
Gooseneck
5.75” x 6”x 10.25” - 104429
5.375” x 9”x 13.25” - 104430
8.375” x 6”x 11” - 104433 Swing 6” x 1.5”x 4.75” - 104431 8” x 2.75”x 5.75” - 104432
0.5 gpm Aerator
52603
Nylon Washer
104441
Solenoid & Solenoid Housing
104439
Solenoid Repair Kit
104021
In-line Filter Housing
104400
In-line Filter
104438
