Page 1
1-1/2"
9-1/8"
11-1/2"
1/2"
Min.
2-1/4" Min.
1/2" Shallow
Escutcheon
1/2" Compression x 1/2" MPT
Trap Primer Line
3/8" x 12"
Flush Valve
Priming Tube
Flow
17 Gauge
Position Beveled End of Primer
Line facing up to intercept water
passing through flush tube
Finished Wall
Floor DrainFinished Floor
P-Trap
Min. 1/2" OD copper Fresh Water Make-Up Line
Fresh Water Make-Up Line
Vacuum Breaker
12"
6"
1- 1/2" x 12" 17 Gauge
with 3/8" Compression Fitting
DESCRIPTION
COMMERCIAL
• Brass construction with chrome plated finish
• 1 1/2" x 12" 17 gauge
• 3/8"x 12" trap primer line
• 1/2" compression X 1/2" MPT connection
FLOW
• 3 oz. per cycle
• Replenishes drains up to 20 ft. away
• Intended for use with 1.6 to 3.5 GPF units
WARRANTY
• Warranted for five years against material or manufacturing defects

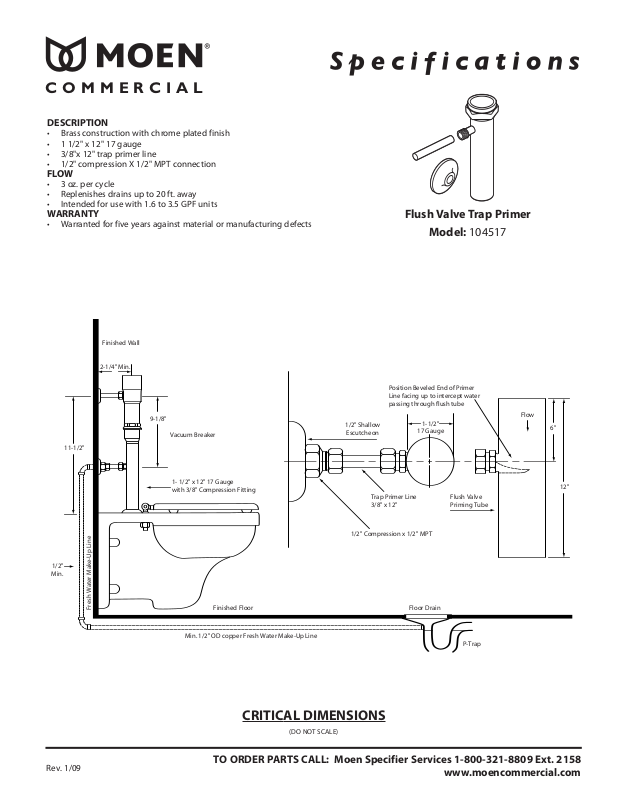

Flush Valve Trap Primer
Model: 104517
Rev. 1/09
w
w
w
.moenc
ommercial.com
CRITIC
AL DIMENSIONS
(DO NOT SCALE)
TO ORDER PARTS CALL: Moen Specifier Services 1-800-321-8809 Ext. 2158
