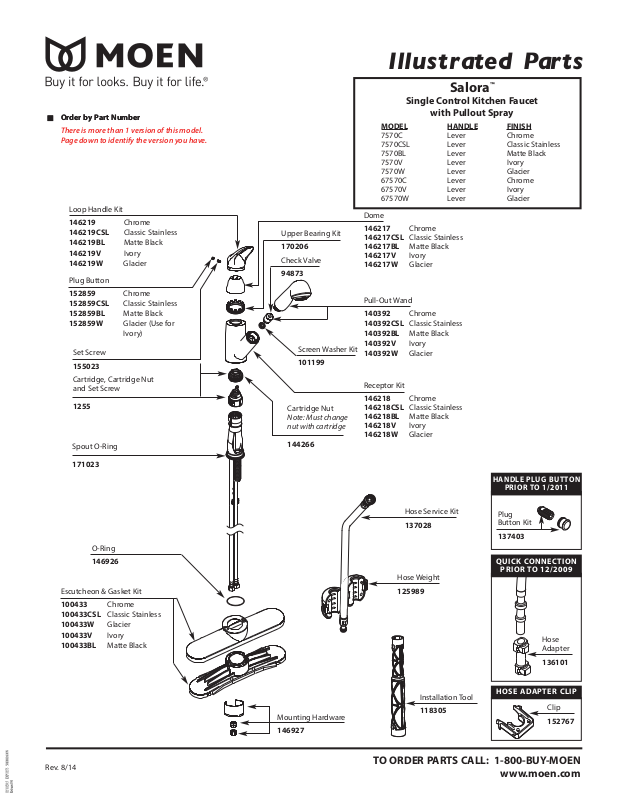

Page 1
Illus tr ated Parts
Order by Part Number
Order by Part Number
There is more than 1 version of this model.
Page down to identify the version you have.
Loop Handle Kit
146219 Chrome
146219CSL Classic Stainless
146219BL Matte Black
146219V Ivory
146219W Glacier
Plug Button
152859 Chrome
152859CSL Classic Stainless
152859BL Matte Black
152859W Glacier (Use for
Ivory)
Set Screw
155023
Cartridge, Cartridge Nut
and Set Screw
1255
Spout O-Ring
Upper Bearing Kit
170206
Check Valve
94873
Screen Washer Kit
101199
Cartridge Nut
Note: Must change
nut with cartridge
144266
Salora
™
Single Control Kitchen Faucet
with Pullout Spray
MODEL HANDLE FINISH
7570C Lever Chrome
7570CSL Lever Classic Stainless
7570BL Lever Matte Black
7570V Lever Ivory
7570W Lever Glacier
67570C Lever Chrome
67570V Lever Ivory
67570W Lever Glacier
Dome
146217 Chrome
146217CSL Classic Stainless
146217BL Matte Black
146217V Ivory
146217W Glacier
Pull-Out Wand
140392 Chrome
140392CSL Classic Stainless
140392BL Matte Black
140392V Ivory
140392W Glacier
Receptor Kit
146218 Chrome
146218CSL Classic Stainless
146218BL Matte Black
146218V Ivory
146218W Glacier
171023
O-Ring
146926
Escutcheon & Gasket Kit
100433 Chrome
100433CSL Classic Stainless
100433W Glacier
100433V Ivory
100433BL Matte Black
Mounting Hardware
146927
Hose Service Kit
137028
Hose Weight
125989
Installation Tool
118305
HANDL E PLUG BUTTO N
PRIOR TO 1/2 011
Plug
Button Kit
137403
QUICK CON NECTIO N
PRIOR TO 12/ 2009
Hose
Adapter
136101
HOSE ADAPTER C LIP
Clip
152767
Rev. 8/14
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
Illus tr ated Parts
Order by Part Number
Order by Part Number
Dome
100439 Chrome
100439S Sand
100439W Glacier
100439V Ivory
100439BL Matte Black
100439CSL Classic Stainless
100439SL Stainless
Handle Screw
96804
Spout Receptor
100152 Chrome
100152S Sand
100152W Glacier
100152V Ivory
100152BL Matte Black
100152CSL Classic Stainless
100152SL Stainless
Single Mount Escutcheon
& Gasket Kit
100151 Chrome
100151S Sand
100151W Glacier
100151V Ivory
100151BL Matte Black
100151CSL Classic Stainless
100151SL Stainless
Receptor Gasket (Obsolete)
(Not included with faucet)
100099
QUICK CON NECTIO N
PRIOR TO 12/ 2009
Handle Adapter
Kit (includes
handle screw)
100429
Loop Handle Kit
100150 Chrome
100150S Sand
100150W Glacier
100150V Ivory
100150BL Matte Black
100150CSL Classic Stainless
100150SL Stainless
Plug Button Kit
100109WBL
100109BLW
Handle Hardware Kit
(includes handle adapter
screw and handle screw)
100440
Installation Tool
100110
Replacement
Cartridge
1225
Spout O-Ring Kit
117 (12 Pack)
or
96778
(Single Pack)
Liquid Dispenser
100509 Chrome
(for 87570CSD only)
Screen Washer
101199
Check Valve Kit
94873
Installation Tool
118305
Salora
™
Single Control Kitchen Faucet with Pullout Spray
MODEL
7570C Loop Chrome
7570CSL Loop Classic Stainless
7570W Loop Glacier
7570V Loop Ivory
7570BL Loop Matte Black
87570V Loop Ivory
87570BL Loop Matte Black
87570CSL Loop Classic Stainless
87570CSD Loop Chrome w/soap dispenser
DISCONTINUED SKUS
7570S Loop Sand
7570SL Loop Stainless
87570C Loop Chrome
87570W Loop Glacier
87570S Loop Sand
87570SL Loop Stainless
Pull-Out Spout
140392 Chrome
140392S Sand
140392W Glacier
140392V Ivory
140392BL Matte Black
140392CSL Classic
140392SL Stainless
Retainer Clip
1883
Vacuum
Breaker
Hub Kit
101707
Vacuum Breaker
Conversion Kit
100602
(includes plug,
hose, check valves
& hose adapter)
HANDLE FINISH
Stainless
Hydrolock®adapter
114306
Hose Service Kit
(Includes screen washer &
integral check valve)
100613 - Obsolete
(For models sold after
August 1, 2003)
Hose Service Kit
(includes screen washer
and hose weight)
101708
(For models sold prior
to August 1, 2003)
Mounting Hardware
93959
Hose Service Kit
137028
(For models sold after
August 1, 2007)
Hose Weight
125989
Hose
Adapter
136101
HOSE ADAPTER C LIP
Clip
152767
Rev. 8/14
Escutcheon & Gasket Kit
100433 Chrome
100433S Sand
100433W Glacier
100433V Ivory
100433BL Matte Black
100433CSL Classic Stainless
For 7570SL & 87570SL
100433CSL Classic Stainless
100433SL Stainless
Hardware Package
785
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
