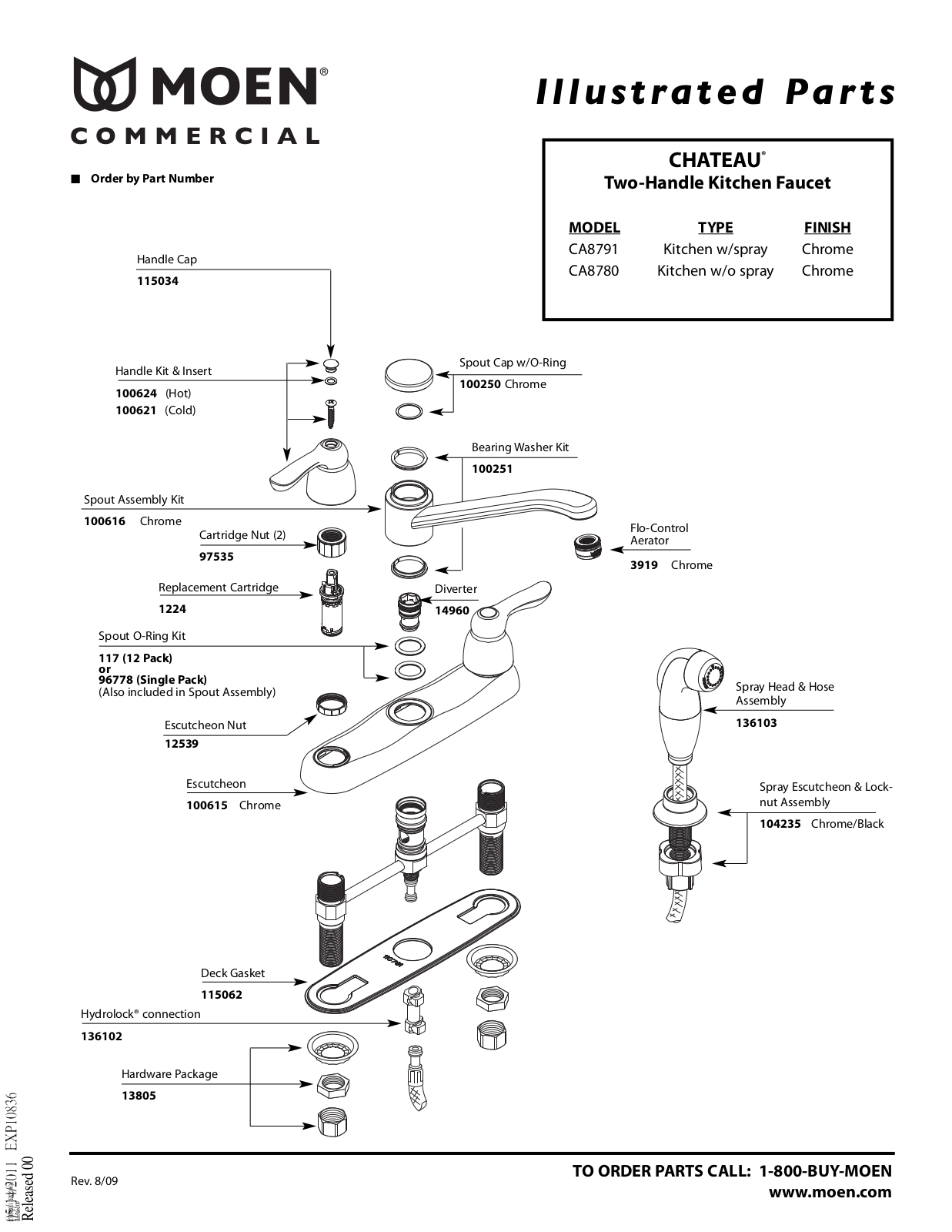

Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Order by Part Number
CHATEAU
®
Two-Handle Kitchen Faucet
MODEL TYPE FINISH
CA8791 Kitchen w/spray Chrome
CA8780 Kitchen w/o spray Chrome
Hardware Package
13805
Cartridge Nut (2)
97535
Replacement Cartridge
1224
Spout Cap w/O-Ring
100250 Chrome
Handle Kit & Insert
100624 (Hot)
100621 (Cold)
Flo-Control
Aerator
3919 Chrome
Escutcheon
100615 Chrome
Spray Head & Hose
Assembly
136103
Deck Gasket
115062
Rev. 8/09
Bearing Washer Kit
100251
Spout O-Ring Kit
117 (12 Pack)
or
96778 (Single Pack)
(Also included in Spout Assembly)
Escutcheon Nut
12539
Spray Escutcheon & Locknut Assembly
104235 Chrome/Black
Spout Assembly Kit
100616 Chrome
Diverter
14960
Handle Cap
115034
Hydrolock® connection
136102
