Page 1
Order by Part Number
Dome
100014 Chrome
100014W Glacier
100014S Sand
100014SL Stainless
100014P Polished Brass
100014V Ivory
Handle Escutcheon
Ring w/ Gasket
100011 Chrome
100011SL Stainless
100011W Glacier
100011S Sand
100011P Polished Brass
100011V Ivory
Handle Mechanism Kit
93980
Replacement Cartridge
1225
Retainer Clip
1883
Handle Kit
100012 Chrome
100012W Glacier
100012S Sand
100012SL Stainless
100012P Polished
Brass
100012V Ivory
Plug Button Kit
100109
Adapter Kit
100429
Spout Assembly
100009 Chrome
100009W Glacier
100009S Sand
100009SL Stainless
100009P Polished
Brass
100009V Ivory
Diverter
14960
Spout Body
115010

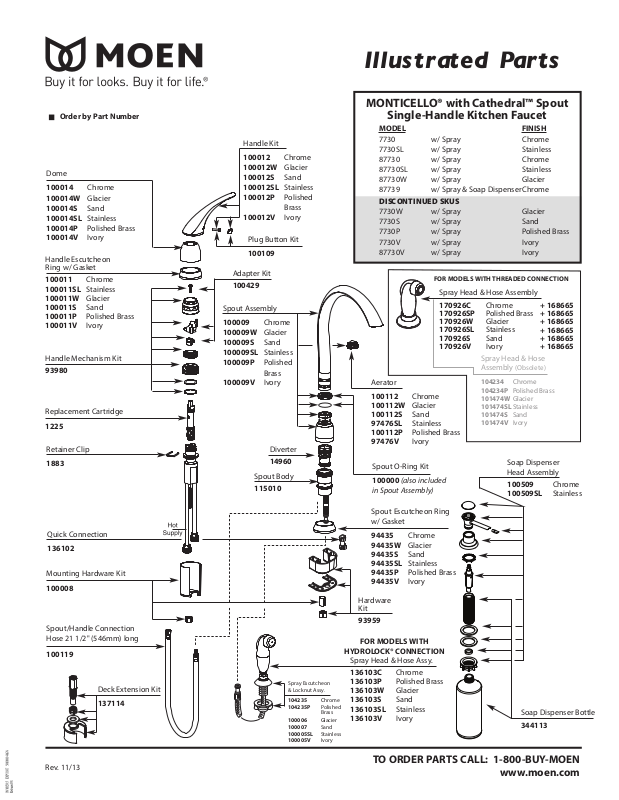

Illus tr ated Parts
MONTICELLO® with Cathedral™ Spout
Single-Handle Kitchen Faucet
MODEL FINISH
7730 w/ Spray Chrome
7730SL w/ Spray Stainless
87730 w/ Spray Chrome
87730SL w/ Spray Stainless
87730W w/ Spray Glacier
87739 w/ Spray & Soap Dispenser Chrome
DISCONTINUED SKUS
7730W w/ Spray Glacier
7730S w/ Spray Sand
7730P w/ Spray Polished Brass
7730V w/ Spray Ivory
87730V w/ Spray Ivory
FOR MODELS WITH THREADED CONNECTION
Spray Head & Hose Assembly
170926C Chrome
170926SP Polished Brass
170926W Glacier
170926SL Stainless
170926S Sand
170926V Ivory
Aerator
100112 Chrome
100112W Glacier
100112S Sand
97476SL Stainless
100112P Polished Brass
97476V Ivory
Spout O-Ring Kit
100000 (also included
in Spout Assembly)
Spray Head & Hose
Assembly
104234 Chrome
104234P Polished Brass
101474W Glacier
101474SL Stainless
101474S Sand
101474V Ivory
Soap Dispenser
Head Assembly
100509 Chrome
100509SL Stainless
+ 168665
+ 168665
+ 168665
+ 168665
+ 168665
+ 168665
(Obsolete)
Quick Connection
136102
Mounting Hardware Kit
100008
Spout/Handle Connection
Hose 21 1/2" (546mm) long
100119
Deck Extension Kit
137114
Rev. 11/13
Spray Escutcheon
& Locknut Assy.
104235 Chrome
104235P Polished
100006 Glacier
100007 Sand
100005SL Stainless
100005V Ivor y
Brass
Spout Escutcheon Ring
w/ Gasket
94435 Chrome
94435W Glacier
94435S Sand
94435SL Stainless
94435P Polished Brass
94435V Ivory
Hardware
Kit
93959
FOR MODELS WITH
HYDROLOCK® CONNECTION
Spray Head & Hose Assy.
136103C Chrome
136103P Polished Brass
136103W Glacier
136103S Sand
136103SL Stainless
136103V Ivory
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Soap Dispenser Bottle
344113
