1-1/4"
(32mm)
1-1/4"
(32mm)
1-1/4"
(32mm)
2-5/8"
(67mm)
2-5/8"
(67mm)
DESCRIPTION
• Metal construction
• Installs on 10"(254mm) centers
• Designed to be installed on finished decks up to 2-5/8" (67mm)
• Integral 1/2" Pex connections
• Includes (2) 1/2" CPVC adapters
• 140715 kit available separately to connect to 1/2" cold expansion Pex
• Includes brass test plug
OPERATION
• Can be installed with any Moen deck mounted roman tub trim kit
• Rotate hot side handle counterclockwise to open
(clockwise to close) and the cold side handle
clockwise to open (counterclockwise to close)
FLOW
• Designed to deliver 14 gpm at 45 psi. (53L/min)
CARTRIDGE
• Nonmetallic and stainless steel materials
STANDARDS
• Designed and manufactured to comply with the applicable requirements of:
ASME A112.18.1/CSA B-125.1, ASTM F1807, CSA B137.5 for PEX, ASTM
D2846, CSA B137.6 for CPVC and all applicable requirements referenced
therein
• 1/2" PEX fittings compatible with PEX tubing manufactured to ASTM F877
• 1/2" CPVC fittings manufactured to ASTM D2846
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s

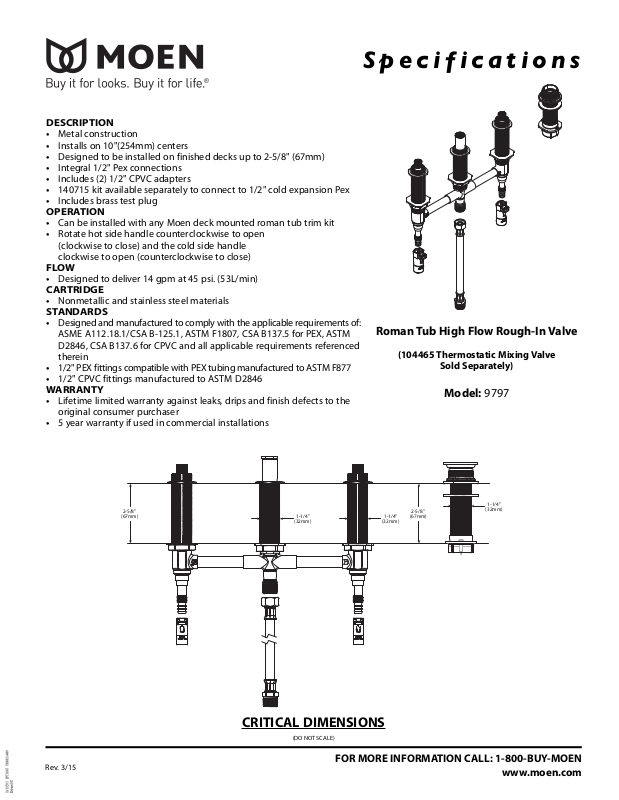

Roman Tub High Flow Rough-In Valve
(104465 Thermostatic Mixing Valve
Sold Separately)
Model: 9797
Rev. 3/15
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
