DESCRIPTION
• Brass construction
• 1/2" CC, or IPS connections with 1/4 turn stops
• Pressure balancing, four port, cycle valve
OPERATION
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintain selected discharge temperature to
± 3°F
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certied to meet ASME A112.18.1/CSA B125.1,
ASSE 1016, and all applicable requirements referenced therein
• Moen’s Posi-Temp® and Moentrol® valves with graphite composite
spools combined with Moen’s Eco-performance showerheads meet the
performance requirements of
pressure and temperature variation of ASSE1016 when
tested as low as 1.5 gpm
WARRANTY
•
Lifetime limited warranty against leaks, drips and nish defects to
the original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations

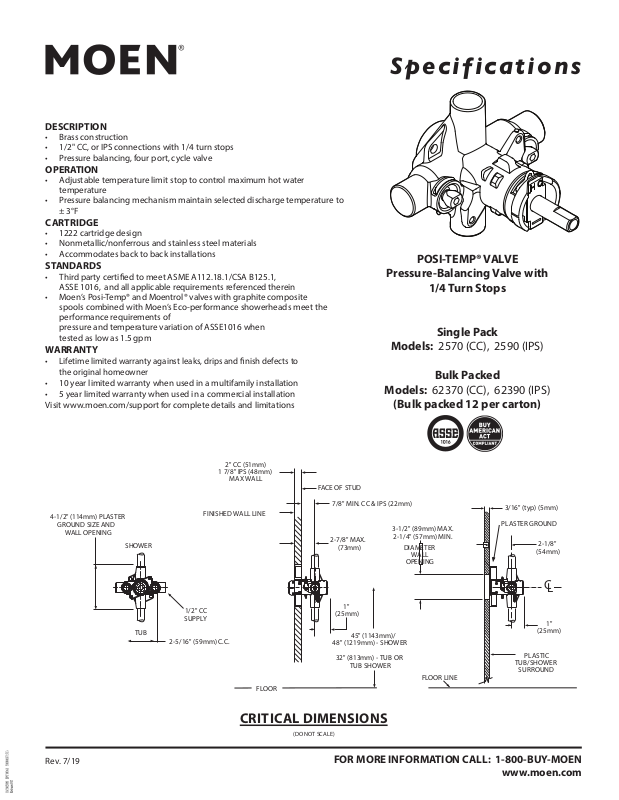

Specifications
POSI-TEMP® VALVE
Pressure-Balancing Valve with
1/4 Turn Stops
Single Pack
Models: 2570 (CC), 2590 (IPS)
Bulk Packed
Models: 62370 (CC), 62390 (IPS)
(Bulk packed 12 per carton)
4-1/2" (114mm) PLASTER
GROUND SIZE AND
WALL OPENING
SHOWER
TUB
1 7/8" IPS (48mm)
FINISHED WALL LINE
1/2" CC
SUPPLY
2-5/16" (59mm) C.C.
2" CC (51mm)
MAX WALL
FLOOR
FACE OF STUD
7/8" MIN. CC & IPS (22mm)
2-7/8" MAX.
(73mm)
1"
(25mm)
48" (1219mm) - SHOWER
32" (813mm) - TUB OR
TUB SHOWER
CRITICAL DIMENSIONS
(DO NOT SCALE)
45" (1143mm)/
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
DIAMETER
WALL
OPENING
FLOOR LINE
3/16" (typ) (5mm)
PLASTER GROUND
2-1/8"
(54mm)
C
L
1"
(25mm)
PLASTIC
TUB/SHOWER
SURROUND
Rev. 7/19
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
