FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com

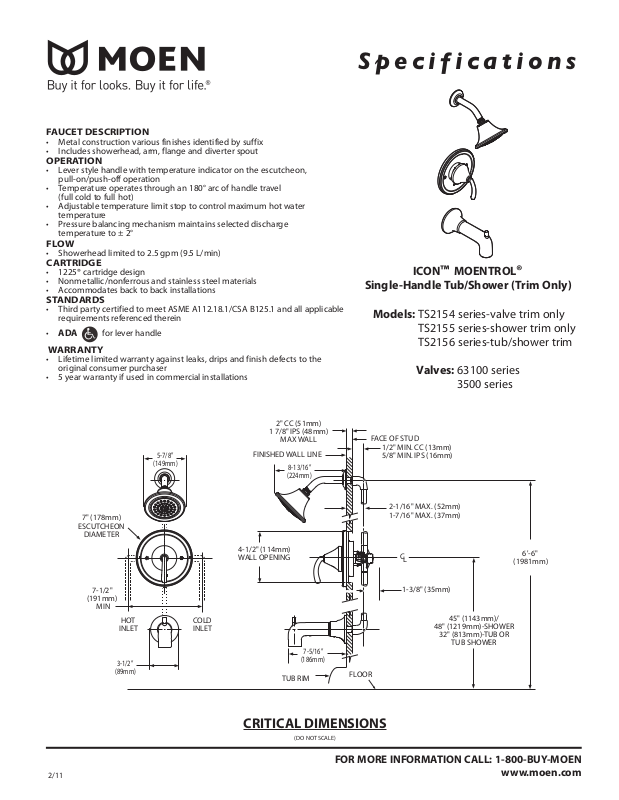

CRITICAL DIMENSIONS
(DO NOT SCALE)
Spec i fi ca tions
2/11
ICON™ MOENTROL®
Single-Handle Tub/Shower (Trim Only)
Models: TS2154 series-valve trim only
TS2155 series-shower trim only
TS2156 series-tub/shower trim
Valves: 63100 series
3500 series
(
FAUCET DESCRIPTION
• Metal construction various finishes identified by suffix
• Includes showerhead, arm, flange and diverter spout
OPERATION
• Lever style handle with temperature indicator on the escutcheon,
pull-on/push-off operation
• Temperature operates through an 180° arc of handle travel
(full cold to full hot)
• Adjustable temperature limit stop to control maximum hot water
temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 2°
FLOW
• Showerhead limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
• 1225® cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and all applicable
requirements referenced therein
•
ADA for lever handle
WAR RA NTY
• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser
• 5 year warranty if used in commercial installations
7" (178mm)
ESCUTCHEON
DIAMETER
7-1/2"
(191mm)
MIN
INLET
3-1/2”
(89mm)
HOT
5-7/8”
(149mm)
COLD
INLET
4-1/2" (114mm)
WALL OPENING
2" CC
1 7/8" IPS (48mm)
FINISHED WALL LINE
51mm)
MAX WALL
8-13/16”
(224mm)
7-5/16”
(186mm)
TUB RIM
FLOOR
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
2-1/16" MAX. (52mm)
1-7/16" MAX. (37mm)
C
L
1-3/8" (35mm)
6'-6"
(1981mm)
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
TUB SHOWER
